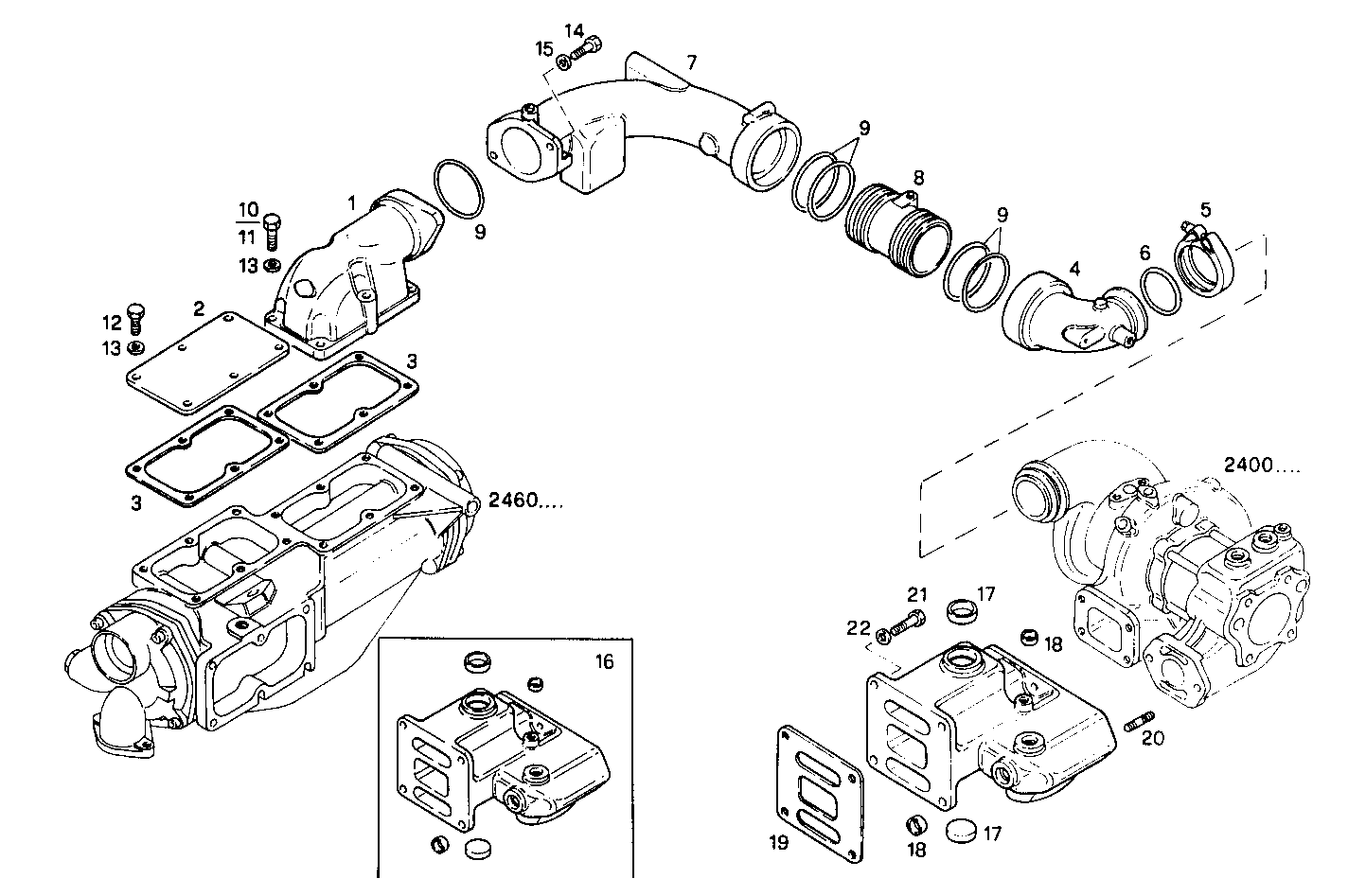

SUPERCHARGING LINES
C78ENTM50.11A001 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030540 | AIR HOOD AIR HOOD | 1 | |
| 2 | 8034337 | COVER COVER | 1 | |
| 3 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 8030532 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 5 | 4800661 | CLIP CLIP | 1 | |
| 6 | 17284681 | O-RING O-RING | 1 | |
| 7 | 8030546 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 8 | 8009896 | ADAPTER ADAPTER | 1 | |
| 9 | 17290581 | O-RING O-RING | 5 | |
| 10 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 14 | 16608124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 16 | 8030401 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 17 | 16991170 | LOCK PLUG LOCK PLUG | 2 | |
| 18 | 16990570 | LOCK PLUG LOCK PLUG | 2 | |
| 19 | 8032873 | GASKET GASKET | 1 | |
| 20 | 16748634 | STUD STUD | 2 | |
| 21 | 17458334 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 17095224 | WASHER WASHER | 4 |
