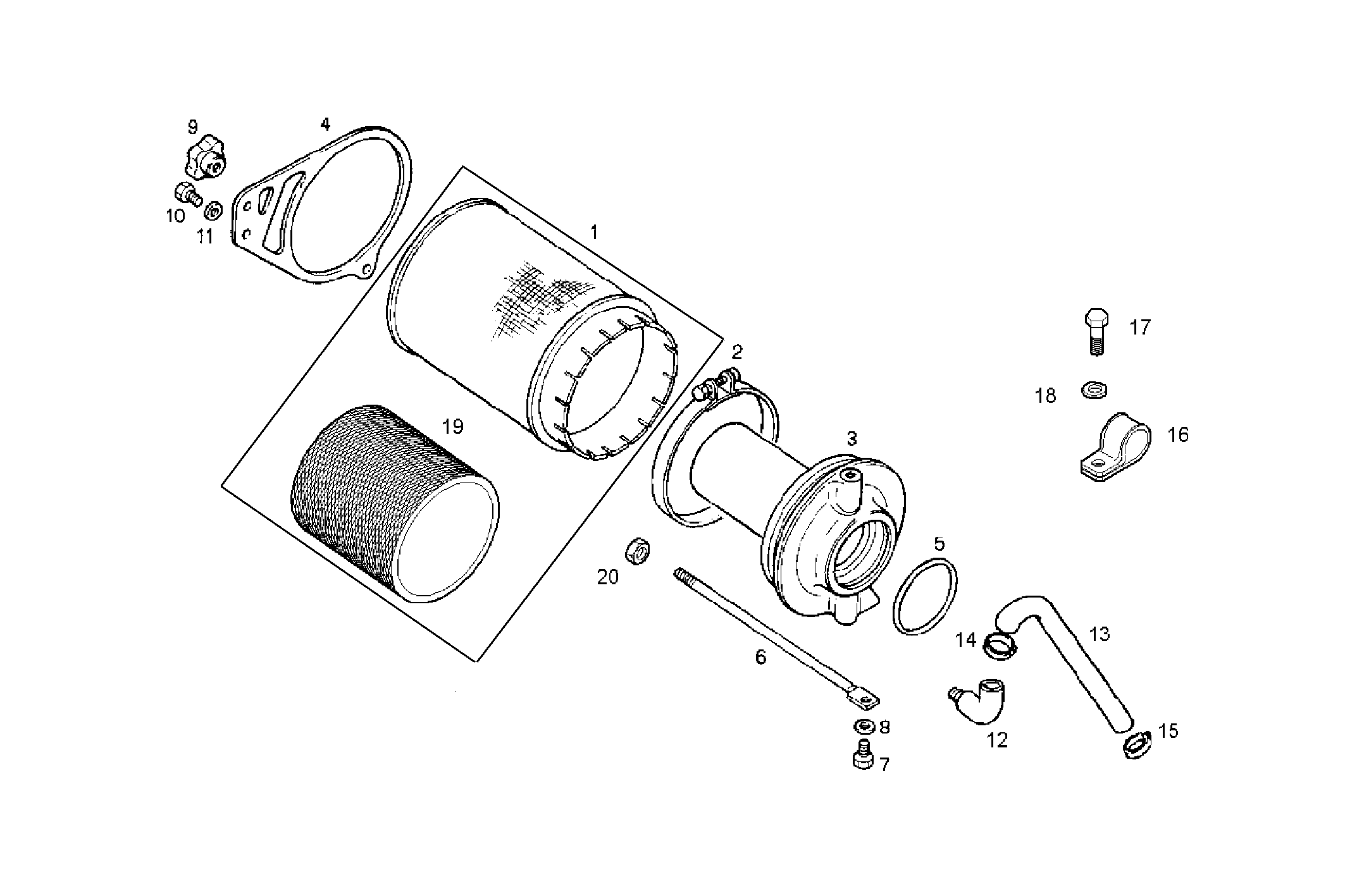

AIR CLEANER
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039480 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8017374 | CLIP CLIP | 1 | |
| 3 | 8042044 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 4 | 8040204 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 17292181 | O-RING O-RING | 1 | |
| 6 | 8040219 | STUD STUD | 1 | |
| 7 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17088474 | WASHER WASHER | 1 | |
| 9 | 8030569 | HANDWHEEL HANDWHEEL | 1 | |
| 10 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 4527314 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 8040558 | AIR HOSE AIR HOSE | 1 | |
| 14 | 17764693 | CLIP CLIP | 1 | |
| 15 | 17764593 | CLIP CLIP | 1 | |
| 16 | 17317390 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 17 | 16605424 | SCREW SCREW | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 19 | 8040501 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 20 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 |
