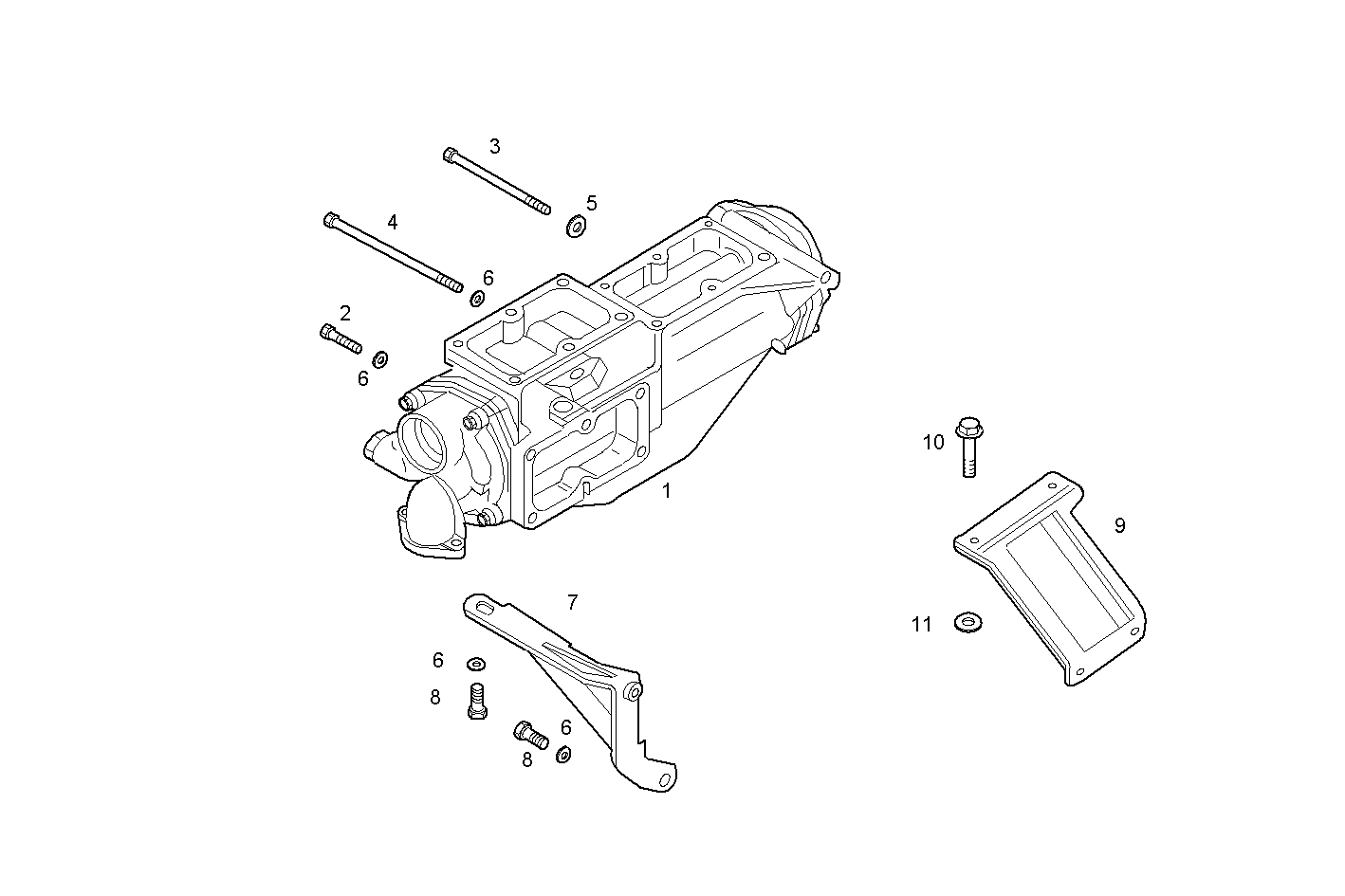

AIR - WATER HEAT EXCHANGER
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041377 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 16611624 | SCREW SCREW | 1 | |
| 4 | 8030482 | SCREW SCREW | 2 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 7 | 8031103 | RETAINER RETAINER | 1 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 8029420 | RETAINER RETAINER | 1 | |
| 10 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17038131 | HEXAGON NUT HEXAGON NUT | 2 |
