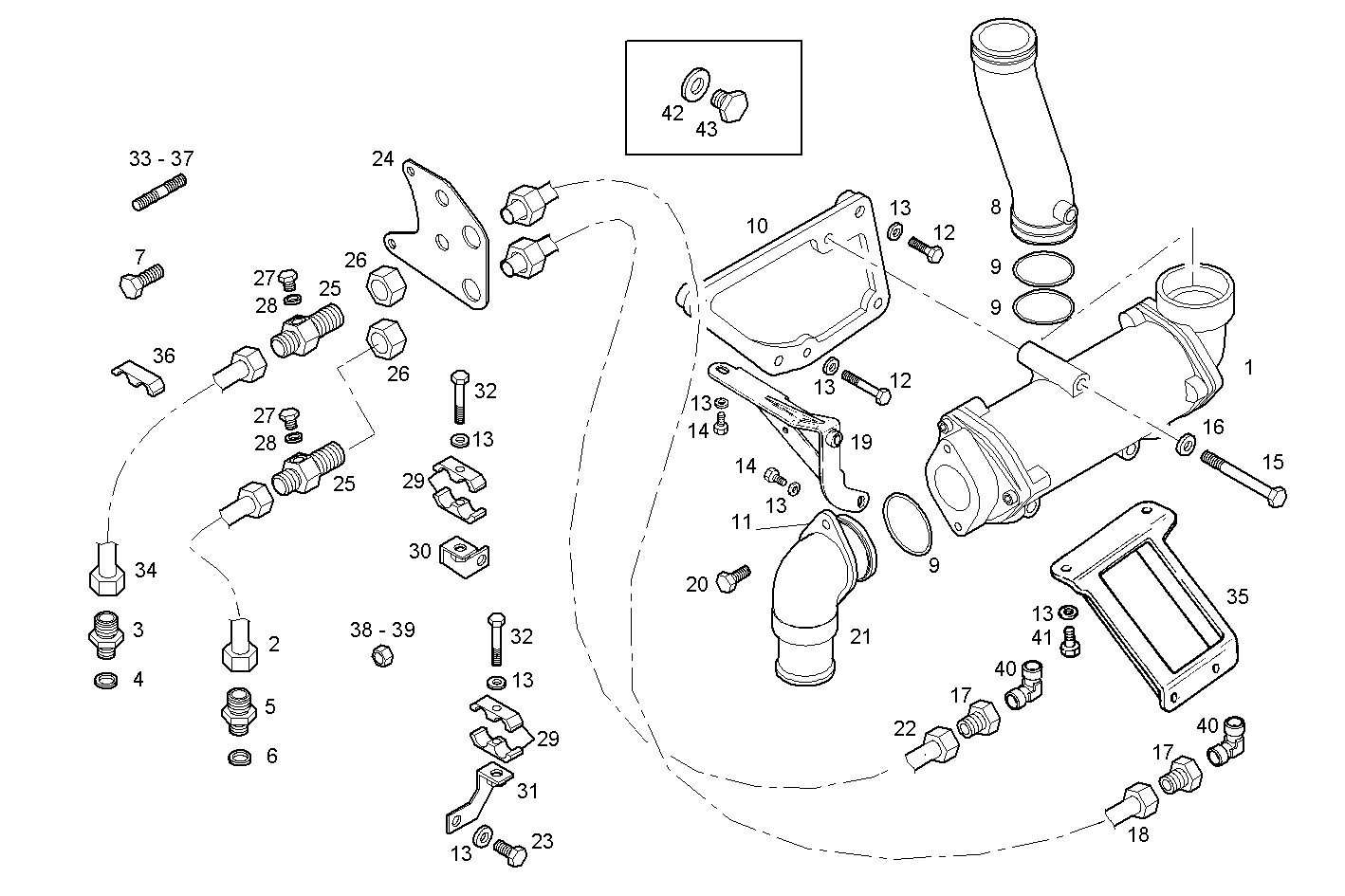

CURSOR 8/C78ENTM55.10/ARRANGED FOR GEAR ZF

ARRANGED FOR GEAR ZF

C78ENTM55.10 — CURSOR 8

Parts List

#	Part No	Name / Description	Qty
1	8029435	OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER	1
2	8105620	HOSE HOSE	1
3	8023701	PIPE SOCKET PIPE SOCKET	1
4	11270460	GASKET GASKET	1
5	8100897	PIPE SOCKET PIPE SOCKET	1
6	99489019	WASHER WASHER	1
7	17458234	LOCKING SCREW LOCKING SCREW	8
8	8034503	SPACING BAR SPACING BAR	1
9	17289981	O-RING O-RING	8
10	8034517	RETAINER RETAINER	1
11	8022237	FLANGE FLANGE	1
12	16607434	HEXAGON BOLT HEXAGON BOLT	2
13	17089474	SPRING WASHER SPRING WASHER	8
14	16605724	SCREW SCREW	2
15	16608724	HEXAGON BOLT HEXAGON BOLT	3
16	17090174	SPRING WASHER SPRING WASHER	9
17	8011138	PIPE SOCKET PIPE SOCKET	2
18	8034533	DELIVERY LINE DELIVERY LINE	1
19	8031103	RETAINER RETAINER	1
20	16605624	HEXAGON BOLT HEXAGON BOLT	2
21	8026482	WATER PIPE WATER PIPE	1
22	8034536	OIL LINE OIL LINE	1
23	16607524	HEXAGON BOLT HEXAGON BOLT	3
24	8032349	RETAINER RETAINER	1
25	8032220	PIPE SOCKET PIPE SOCKET	2
26	41217235	HEXAGON NUT HEXAGON NUT	2
27	11903140	PLUG PLUG	2
28	99489016	SEAL GASKET SEAL GASKET	2
29	8010505	CLAMP CLAMP	4
30	8033495	RETAINER RETAINER	1
31	8032187	RETAINER RETAINER	1
32	16605934	HEXAGON BOLT HEXAGON BOLT	2
33	17368624	STUD STUD	2
34	8105619	HOSE HOSE	1
35	8029420	RETAINER RETAINER	1
36	8032246	SPRING CLAMP SPRING CLAMP	2
37	17368225	STUD STUD	10
38	17038131	HEXAGON NUT HEXAGON NUT	2
39	16508811	NUT NUT	2
40	8034521	SWIVEL COUPLING SWIVEL COUPLING	2
41	16605670	SCREW SCREW	2
42	4595833	THREADED PLUG THREADED PLUG	2
43	99489021	WASHER WASHER	2
