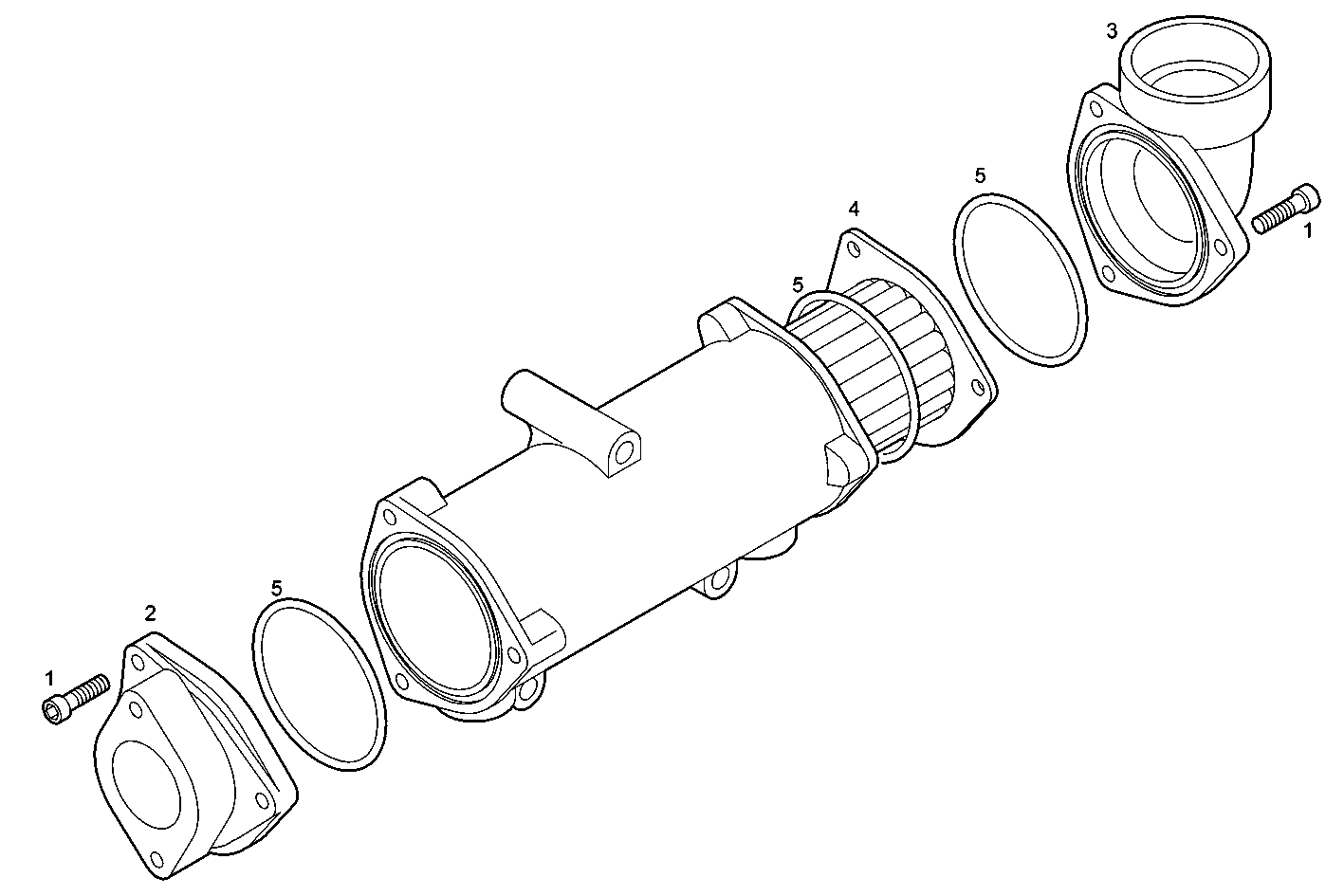

ARRANGED FOR TECHNODRIVE MARINE GEAR
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 6 | |
| 2 | 8029438 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 3 | 8029439 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 4 | 8029437 | TUBE STACK TUBE STACK | 1 | |
| 5 | 8030494 | O-RING O-RING | 3 |
