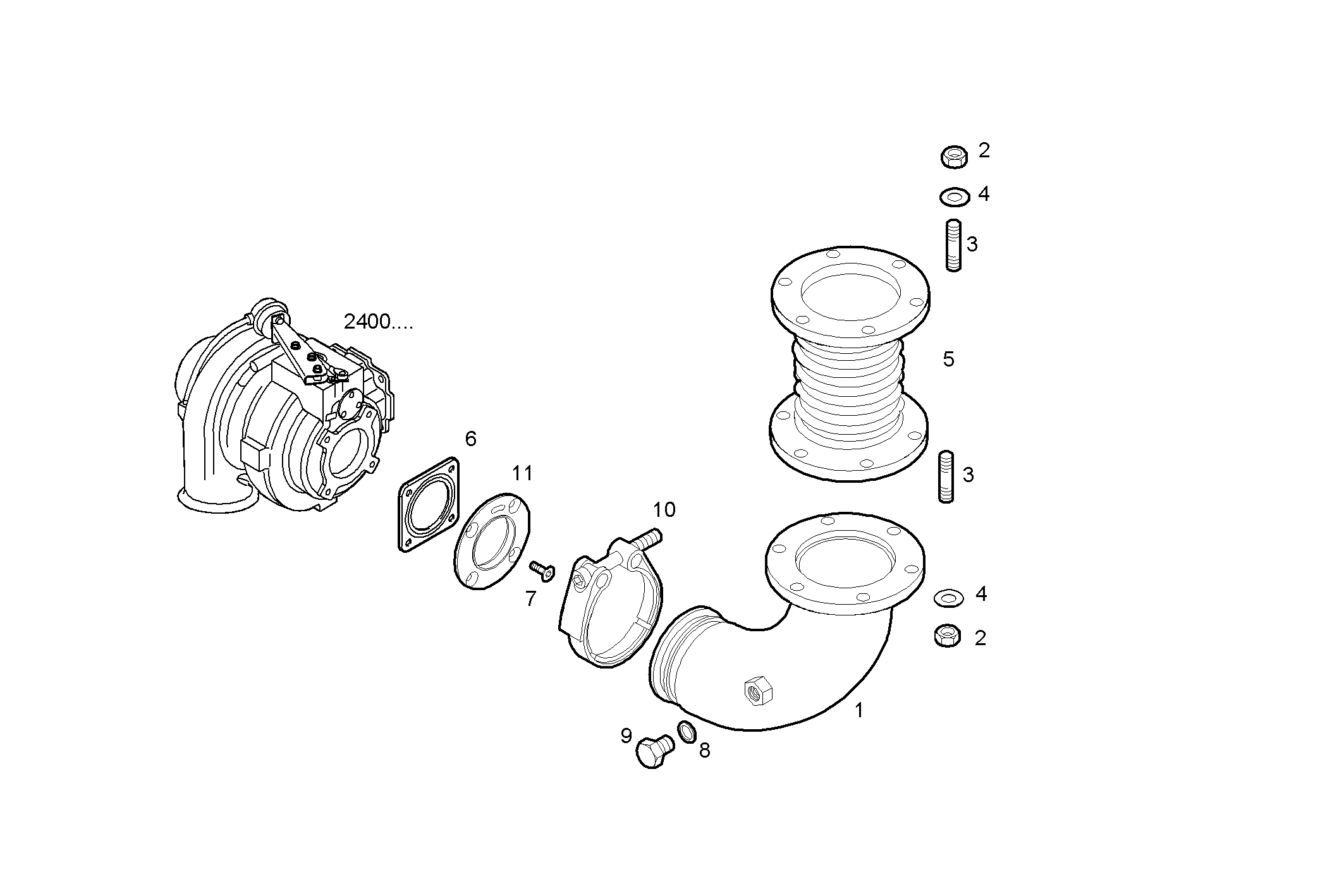

EXHAUST PIPE
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042177 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 2 | 17038131 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 16731234 | STUD STUD | 12 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 8016096 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 6 | 8040168 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 17345224 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 8 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 504064329 | CLIP CLIP | 1 | |
| 11 | 8042173 | FLANGE FLANGE | 1 |
