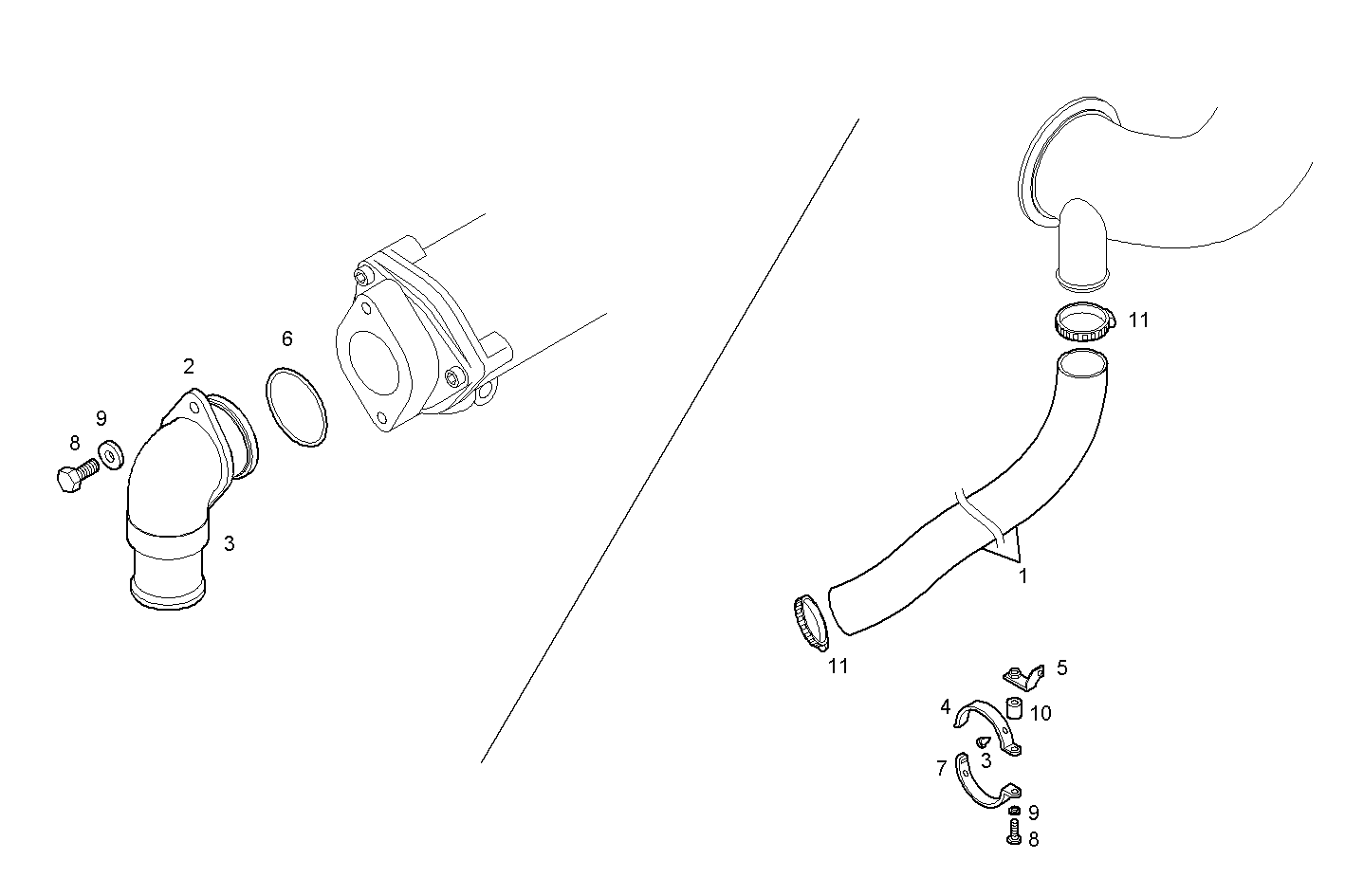

GAS-WATER MIXER WITH STERN OUTLET
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019908 | HOSE HOSE | 1 | |
| 2 | 8022237 | FLANGE FLANGE | 1 | |
| 3 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 3 | 8032238 | PIPE PIPE | 1 | |
| 4 | 8113296 | CLAMP CLAMP | 1 | |
| 5 | 8033807 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 17289881 | O-RING O-RING | 1 | |
| 7 | 8113295 | CLAMP CLAMP | 1 | |
| 8 | 16605670 | SCREW SCREW | 3 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 17816714 | SPACING BAR SPACING BAR | 1 | |
| 11 | 17764993 | CLIP CLIP | 2 |
