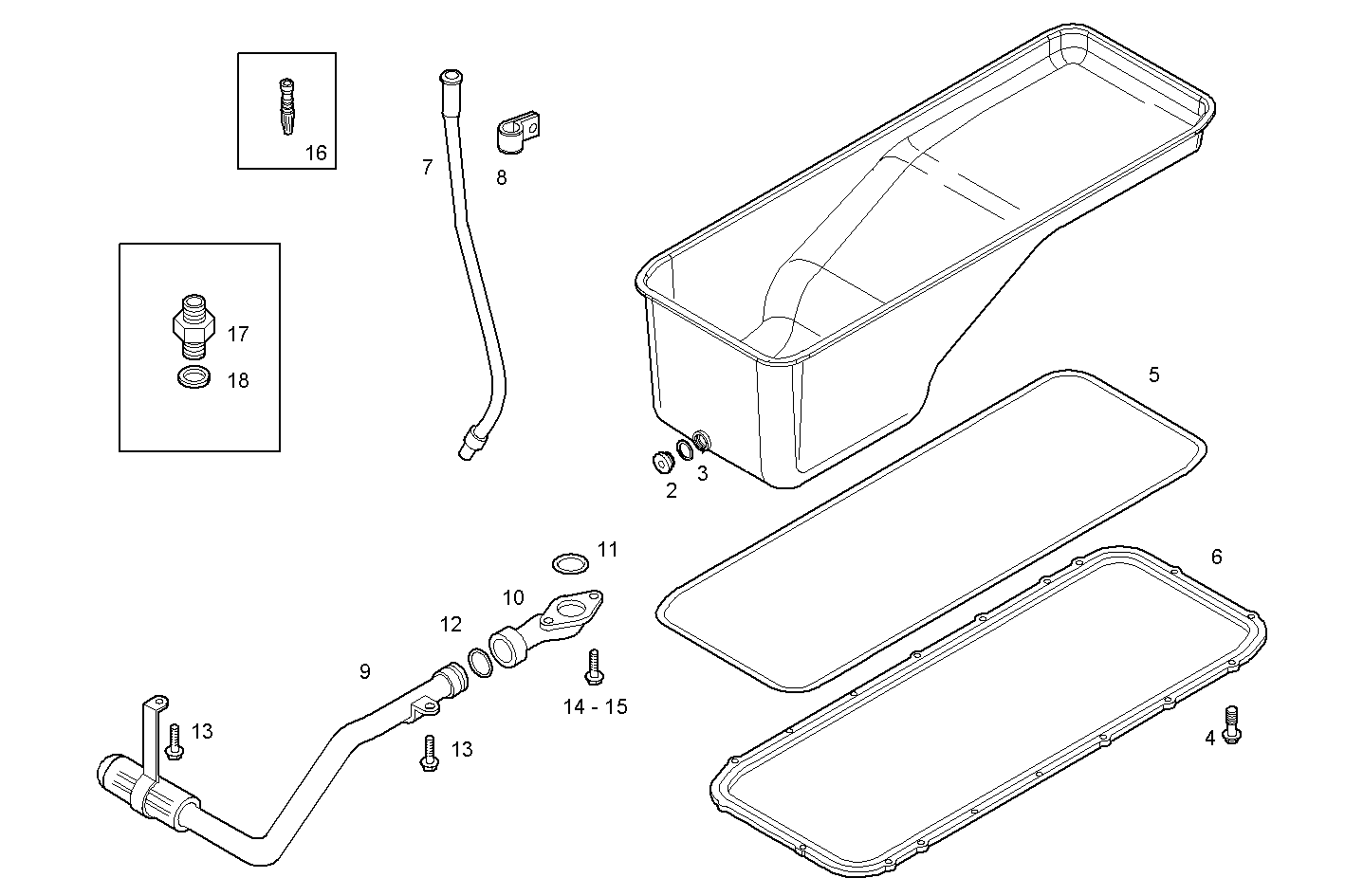

OIL SUMP
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037948 | MARINE ENGINE OIL SUMP MARINE ENGINE OIL SUMP | 1 | |
| 2 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 3 | 99489022 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 16587525 | HEXAGON BOLT HEXAGON BOLT | 14 | |
| 5 | 99443902 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 6 | 99437092 | SPACING BAR SPACING BAR | 1 | |
| 7 | 8038101 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 8 | 8023543 | CLIP CLIP | 1 | |
| 9 | 8037946 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 10 | 98474898 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 11 | 99477046 | O-RING O-RING | 1 | |
| 12 | 17282981 | O-RING O-RING | 1 | |
| 13 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16586725 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 16592225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 4624702 | GASKET GASKET | 1 | |
| 17 | 16509311 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 18 | 99489020 | SEAL GASKET SEAL GASKET | 1 |
