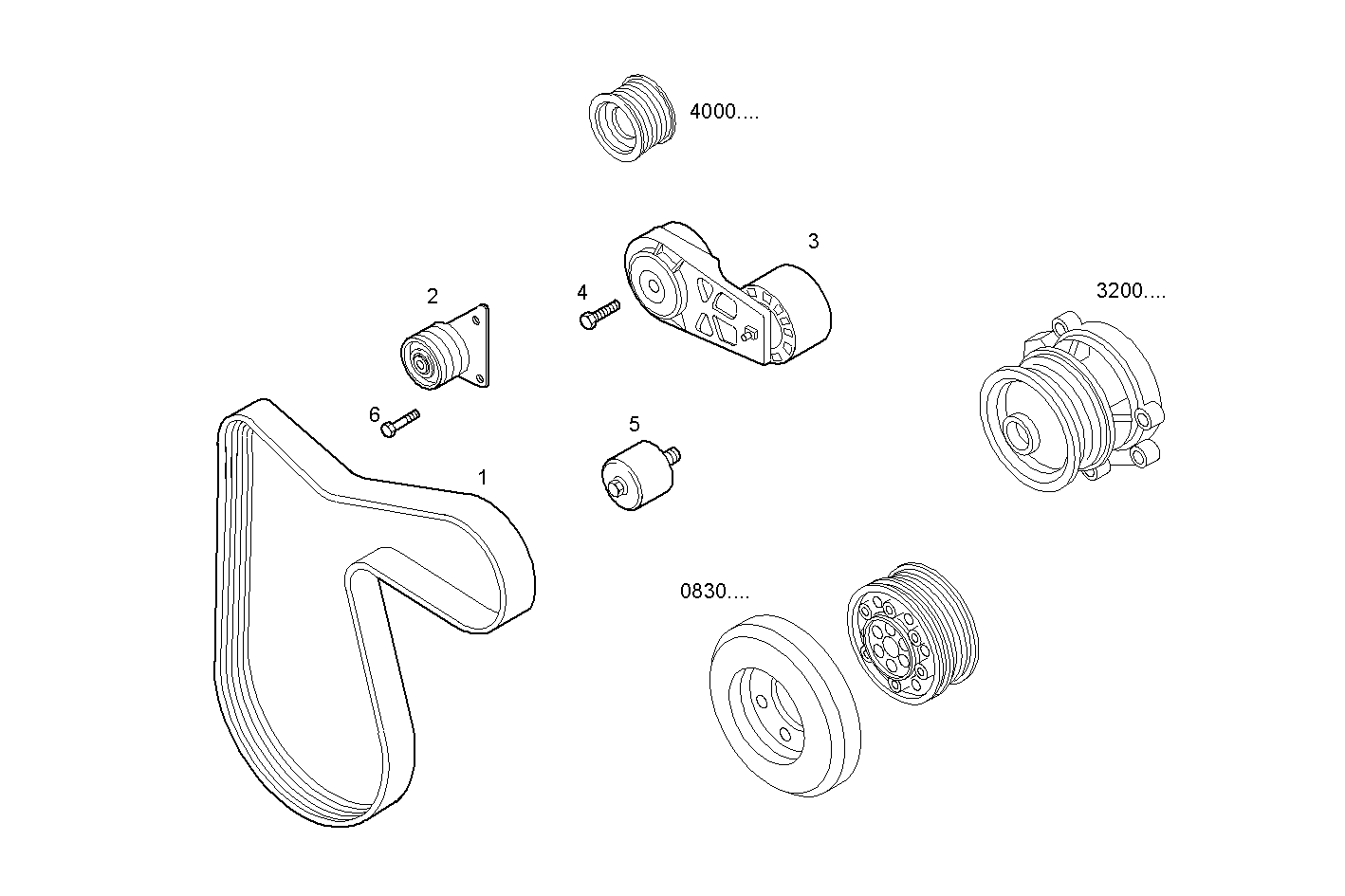

PULLEYS AND BELTS
C78ENTM55.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504078068 | BELT BELT | 1 | |
| 2 | 504080798 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 504046191 | BELT TENSIONER BELT TENSIONER | 1 | |
| 4 | 16676834 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 504006261 | BELT TENSIONER BELT TENSIONER | 1 | |
| 6 | 16600224 | HEXAGON BOLT HEXAGON BOLT | 2 |
