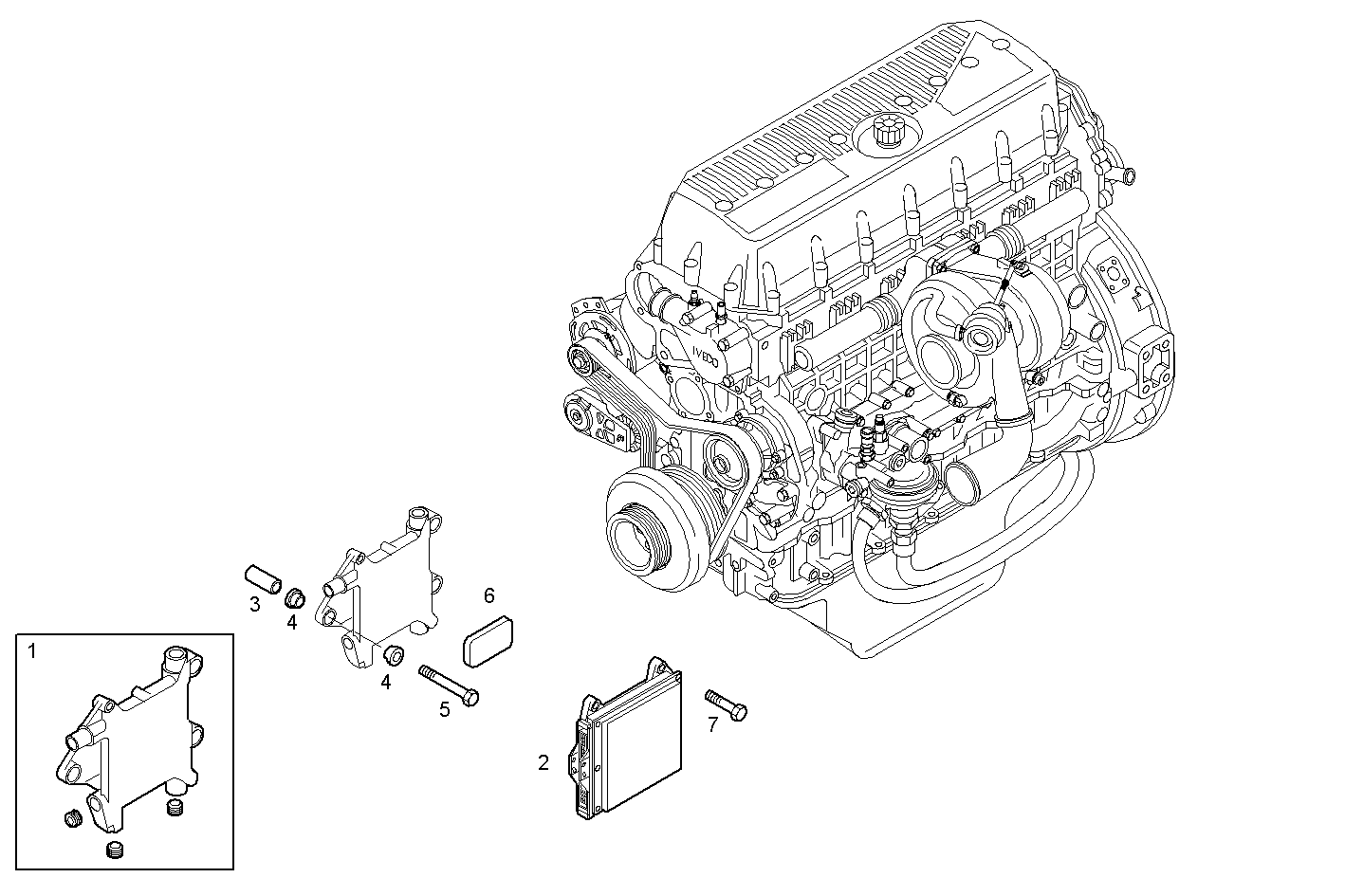

ELECTRONIC CONTROL UNIT
CURSOR78TE2.1A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500371989 | SUPPORT SUPPORT | 1 | |
| 2 | 8093995 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 3 | 500341603 | SPACING BAR SPACING BAR | 3 | |
| 4 | 98498817 | DOWEL DOWEL | 6 | |
| 5 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 99474206 | RUBBER PLUG RUBBER PLUG | 1 | |
| 7 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 4 |
