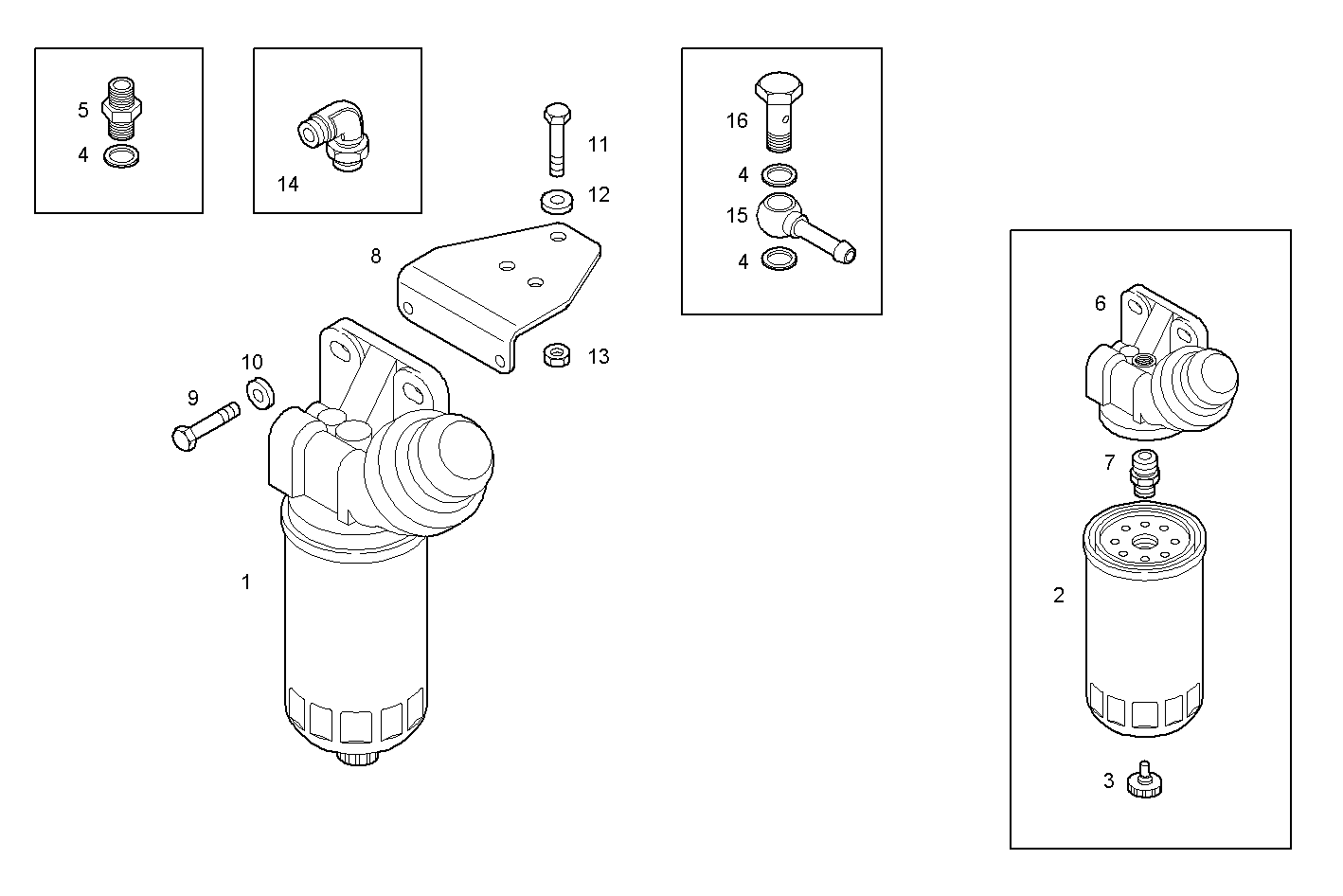

FUEL PREFILTER
CURSOR78TE2.1A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504057743 | PREFILTER PREFILTER | 1 | |
| 2 | 2992662 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 3 | 42540203 | SENSOR SENSOR | 1 | |
| 4 | 99489018 | SEAL GASKET SEAL GASKET | 3 | |
| 5 | 8014143 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 42545573 | FUEL FILT.SUPPORT FUEL FILT.SUPPORT | 1 | |
| 7 | 42545574 | THREADED UNION THREADED UNION | 1 | |
| 8 | 8040177 | RETAINER RETAINER | 1 | |
| 9 | 16605424 | SCREW SCREW | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 16609425 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 13 | 17038131 | HEXAGON NUT HEXAGON NUT | 3 | |
| 14 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 15 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 16 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 |
