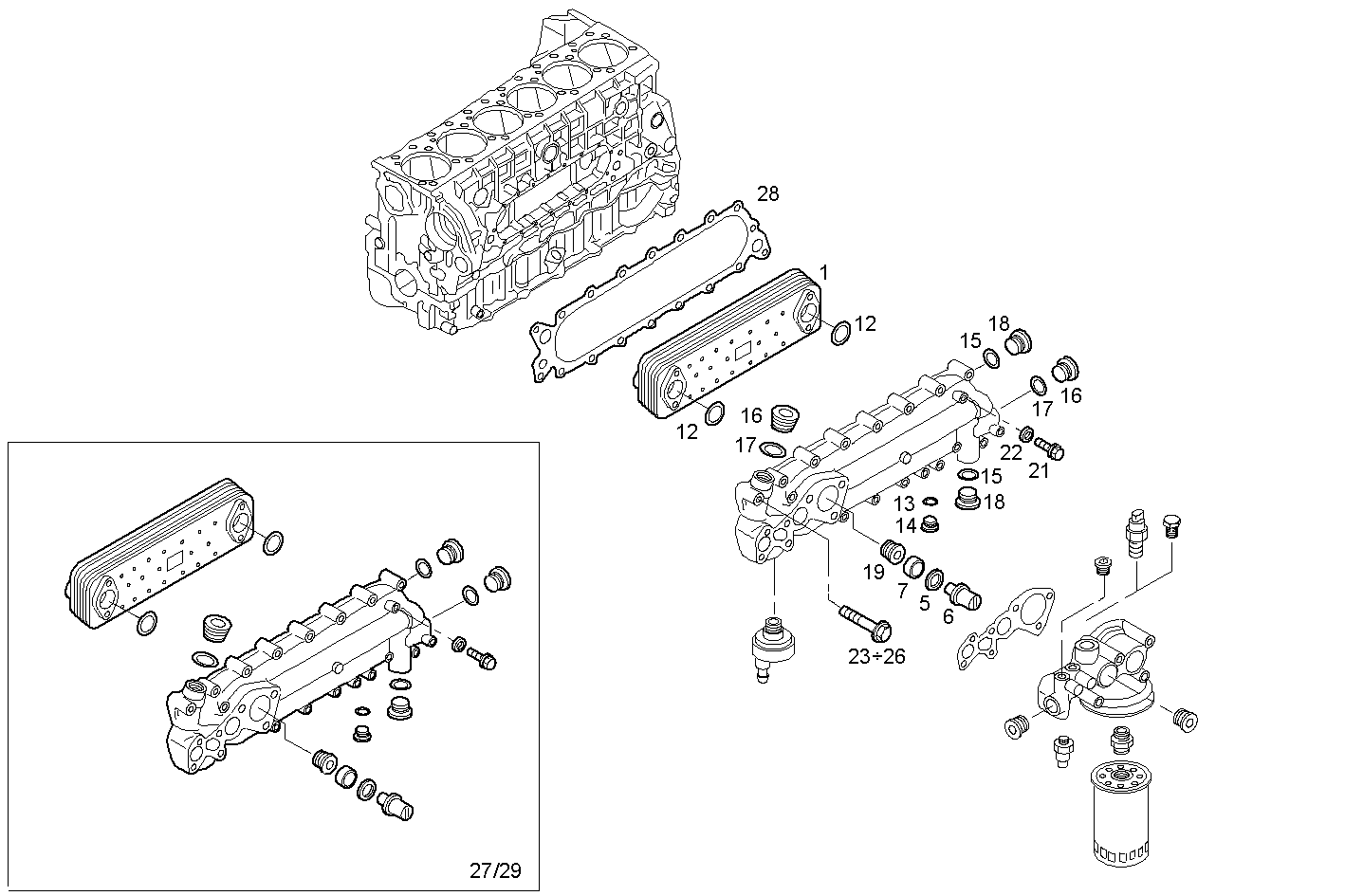

OIL - WATER HEAT EXCHANGER
CURSOR78TE2.1A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500301692 | OIL COOLER OIL COOLER | 1 | |
| 5 | 98494952 | GASKET GASKET | 1 | |
| 6 | 98498322 | VALVE VALVE | 1 | |
| 7 | 99433798 | SPACING BAR SPACING BAR | 1 | |
| 12 | 17283581 | O-RING O-RING | 2 | |
| 13 | 99489019 | WASHER WASHER | 1 | |
| 14 | 16992415 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 99469380 | SEAL GASKET SEAL GASKET | 2 | |
| 16 | 16993511 | LOCK PLUG LOCK PLUG | 2 | |
| 17 | 99432291 | SEAL GASKET SEAL GASKET | 2 | |
| 18 | 16993715 | THREADED PLUG THREADED PLUG | 2 | |
| 19 | 99433799 | THREADED PLUG THREADED PLUG | 1 | |
| 21 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 99489014 | SEAL GASKET SEAL GASKET | 4 | |
| 23 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 16586725 | HEXAGON BOLT HEXAGON BOLT | 14 | |
| 25 | 16598625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 26 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 99456568 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 28 | 504045796 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 29 | 504013550 | HEAT EXCHANGER HEAT EXCHANGER | 1 |
