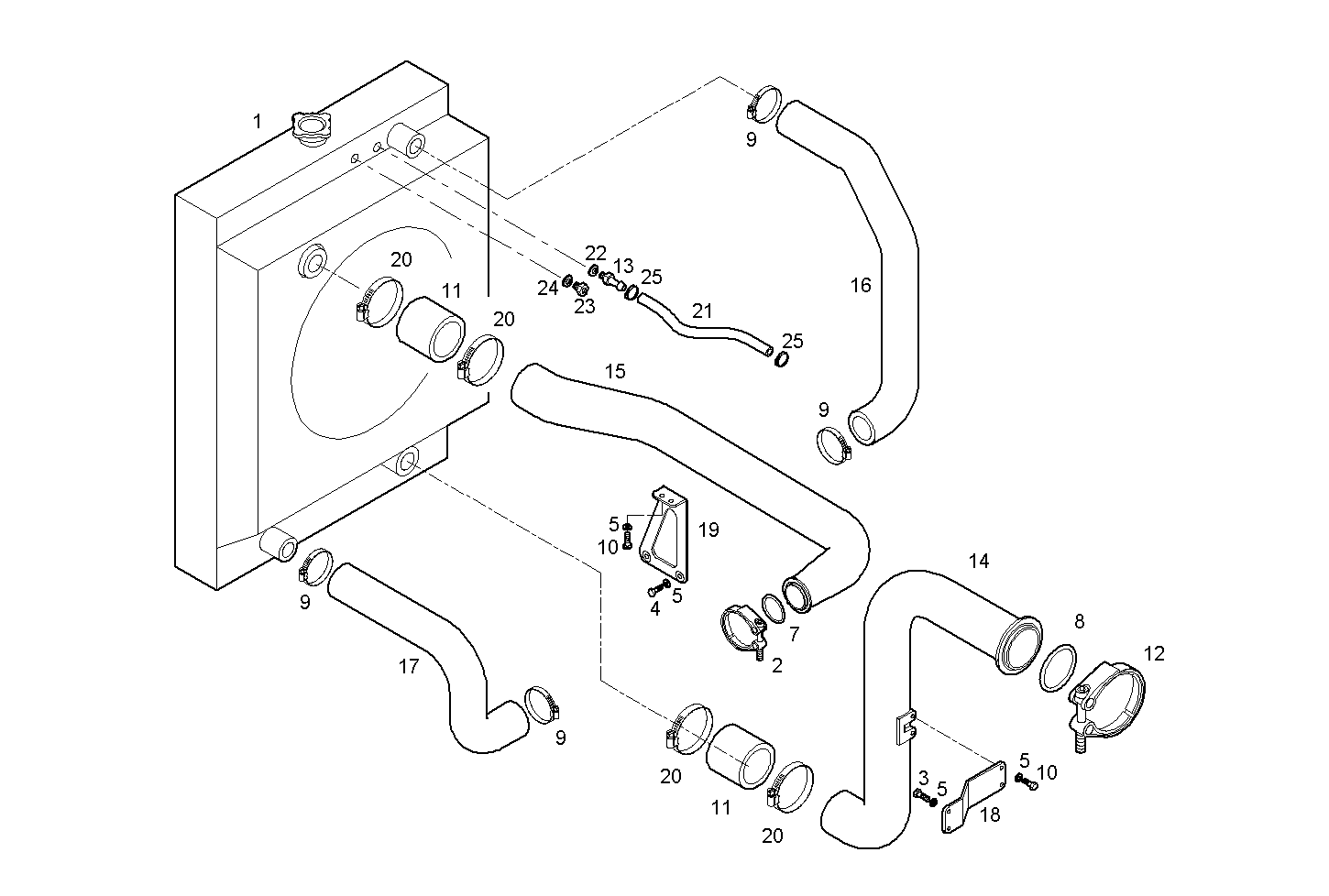

RADIATOR 2 CIRCUITS AIR/WATER
CURSOR78TE2.A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036502 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 4800661 | CLIP CLIP | 1 | |
| 3 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 17284681 | O-RING O-RING | 1 | |
| 8 | 17291281 | O-RING O-RING | 1 | |
| 9 | 17765091 | CLIP CLIP | 4 | |
| 10 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 11 | 42088621 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 99435103 | CLIP CLIP | 1 | |
| 13 | 4935134 | OIL LINE OIL LINE | 1 | |
| 14 | 8036454 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 15 | 8036460 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 16 | 8036520 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 8036521 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 18 | 8037139 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 19 | 8037168 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 20 | 17769491 | CLIP CLIP | 4 | |
| 21 | 8034635 | BREATHER PIPE BREATHER PIPE | 1 | |
| 22 | 4858607 | WASHER WASHER | 1 | |
| 23 | 4935727 | PIPE SOCKET PIPE SOCKET | 1 | |
| 24 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 26 | 18087991 | CLIP CLIP | 2 |
