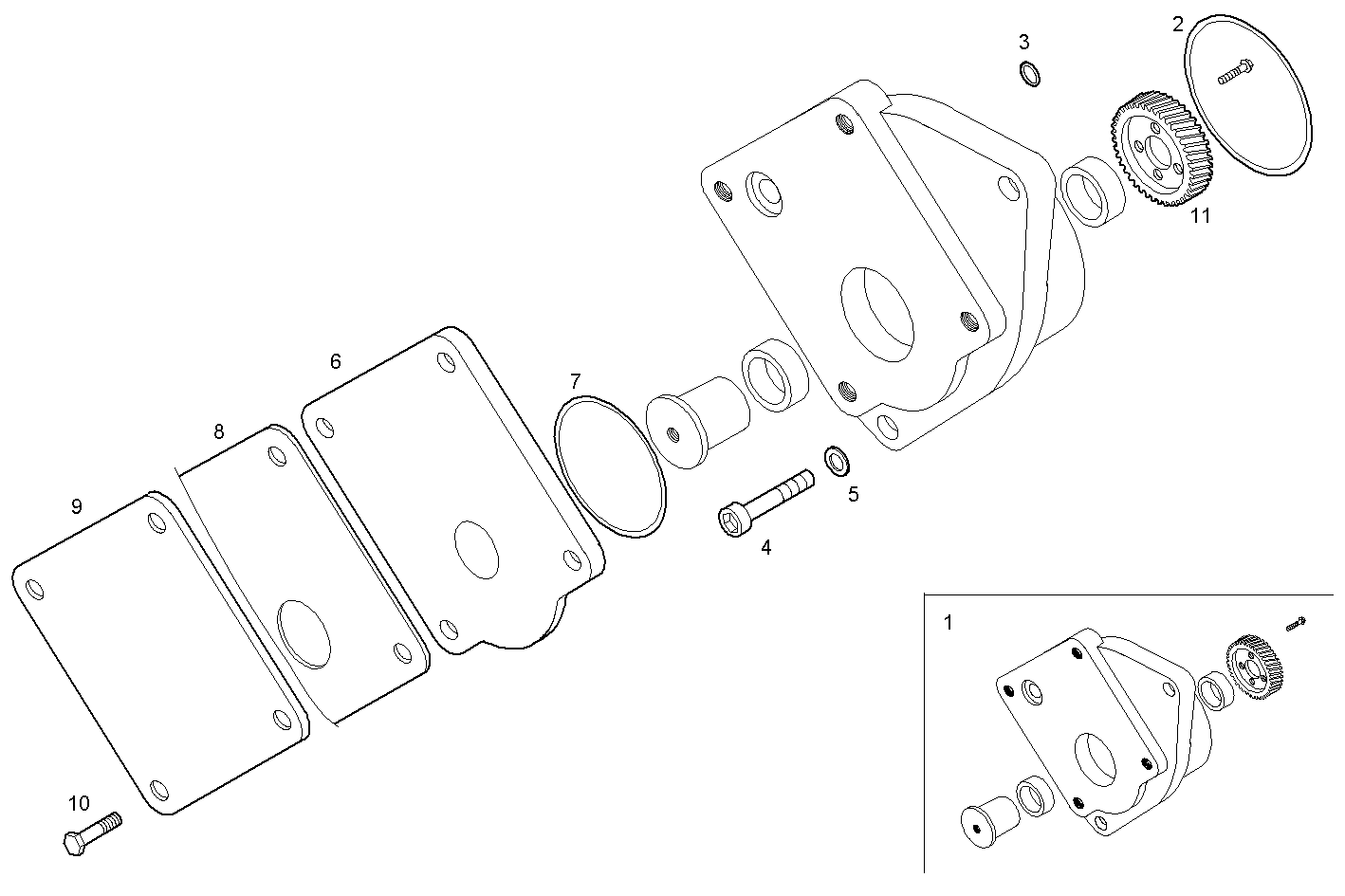

PTO ARRANGEMENT
C87ENTX20.00 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8045438 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 2 | 17292281 | O-RING O-RING | 1 | |
| 3 | 17281381 | O-RING O-RING | 1 | |
| 4 | 41033356 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 3 | |
| 5 | 17095224 | WASHER WASHER | 3 | |
| 6 | 504020638 | SPACING BAR SPACING BAR | 1 | |
| 7 | 504042516 | O-RING O-RING | 1 | |
| 8 | 8009914 | GASKET GASKET | 1 | |
| 9 | 504020736 | PTO COVER PTO COVER | 1 | |
| 10 | 16675835 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 8045435 | PTO GEAR PTO GEAR | 1 |
