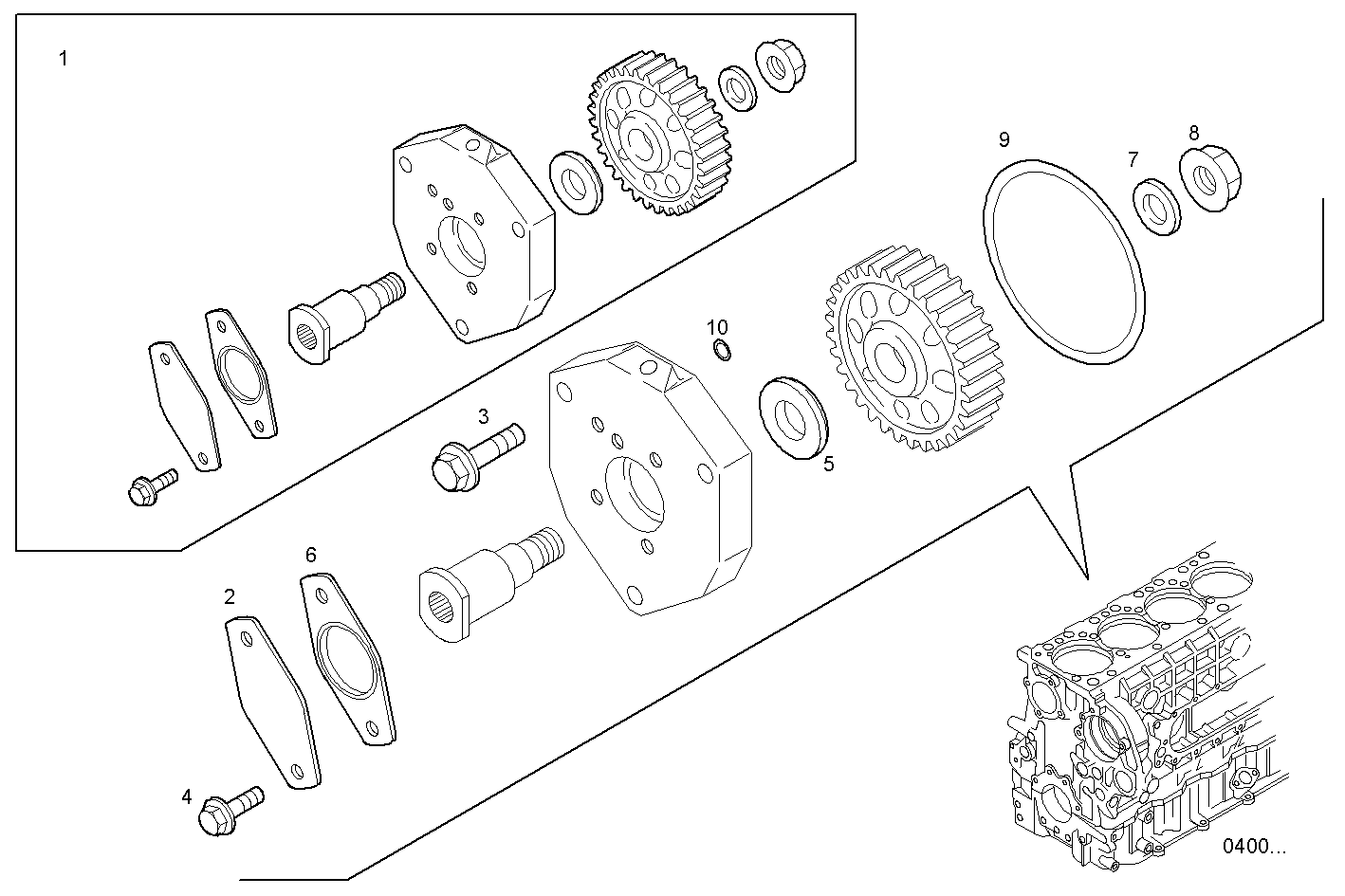

PTO ARRANGEMENT
C87ENTX20.00 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8045490 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 2 | 504024782 | COVER COVER | 1 | |
| 3 | 16678135 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 500351319 | WASHER WASHER | 1 | |
| 6 | 504024783 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 500382574 | WASHER WASHER | 1 | |
| 8 | 17046231 | NUT NUT | 1 | |
| 9 | 17292281 | O-RING O-RING | 1 | |
| 10 | 17281381 | O-RING O-RING | 1 |
