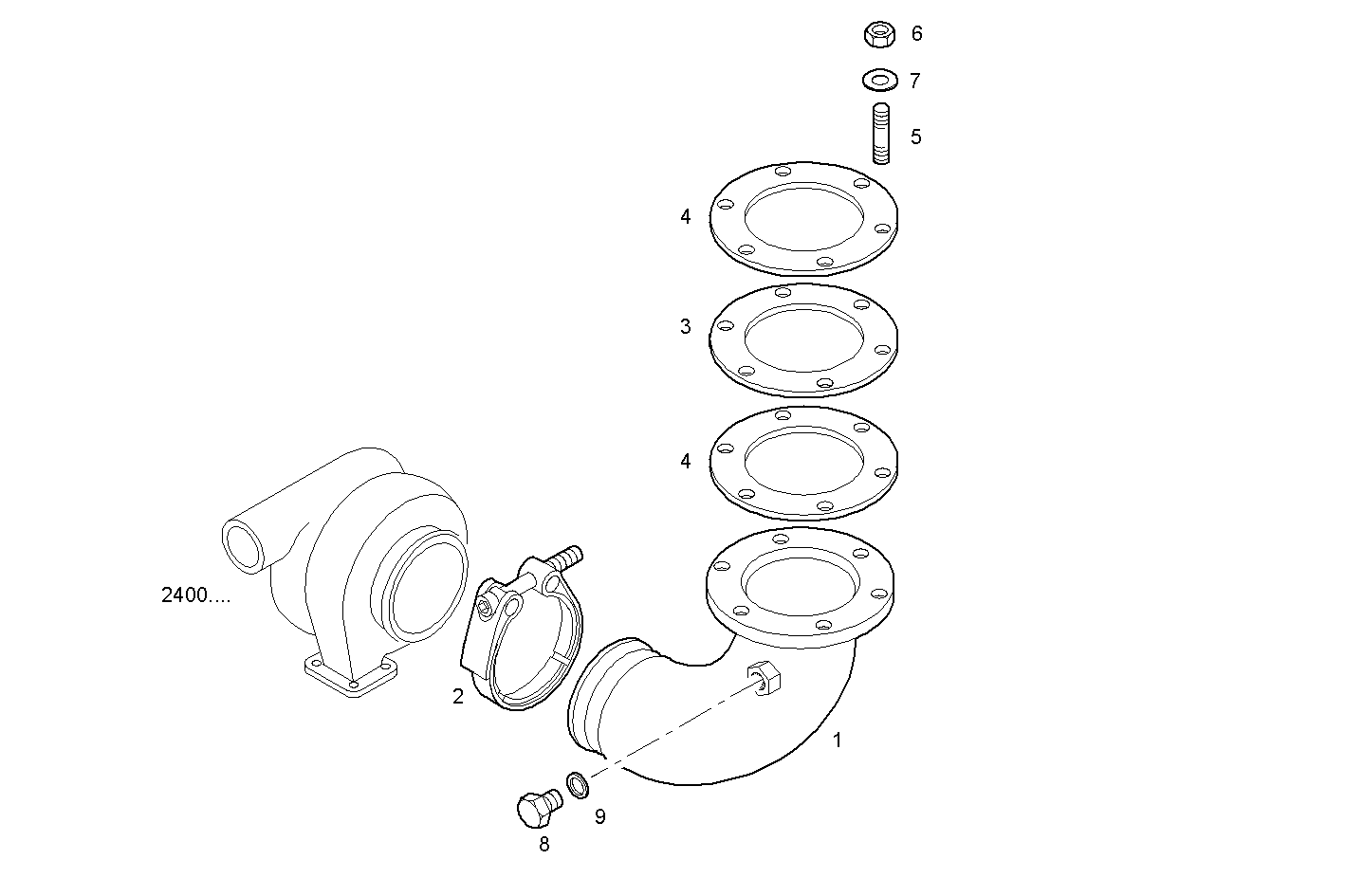

UPWARD REAR EXHAUST ELBOW
C87ENTX20.00 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036130 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 504073261 | CLIP CLIP | 1 | |
| 3 | 8103591 | FLANGE FLANGE | 1 | |
| 4 | 8009600 | GASKET GASKET | 2 | |
| 5 | 16731234 | STUD STUD | 6 | |
| 6 | 17038131 | HEXAGON NUT HEXAGON NUT | 6 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 8 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 9 | 99489017 | SEAL GASKET SEAL GASKET | 2 |
