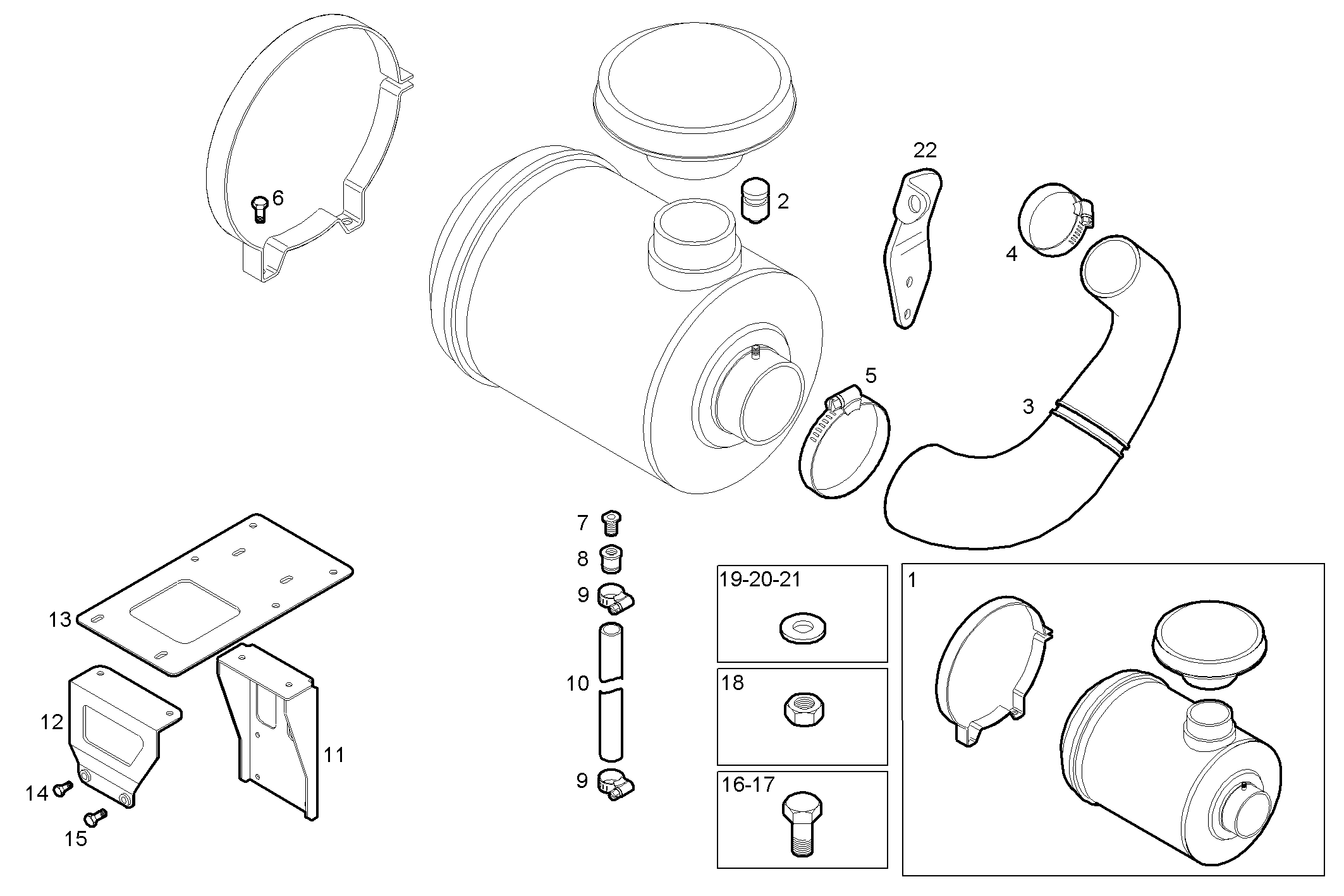

AIR CLEANER
C87ENTX20.00A802 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034708 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 3 | 8044651 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 17765591 | CLIP CLIP | 1 | |
| 5 | 17765991 | CLIP CLIP | 1 | |
| 6 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 8015315 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 8015133 | PIPE SOCKET PIPE SOCKET | 2 | |
| 9 | 17764594 | HOSE CLIP HOSE CLIP | 2 | |
| 10 | 8045625 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 8043421 | RETAINER RETAINER | 1 | |
| 12 | 8045573 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 13 | 8043418 | RETAINER RETAINER | 1 | |
| 14 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 16607734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16607624 | SCREW SCREW | 4 | |
| 17 | 16605424 | SCREW SCREW | 4 | |
| 18 | 17038425 | HEXAGON NUT HEXAGON NUT | 4 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 17090274 | WASHER WASHER | 4 | |
| 21 | 17091074 | WASHER WASHER | 4 | |
| 22 | 8031596 | HOOK HOOK | 1 |
