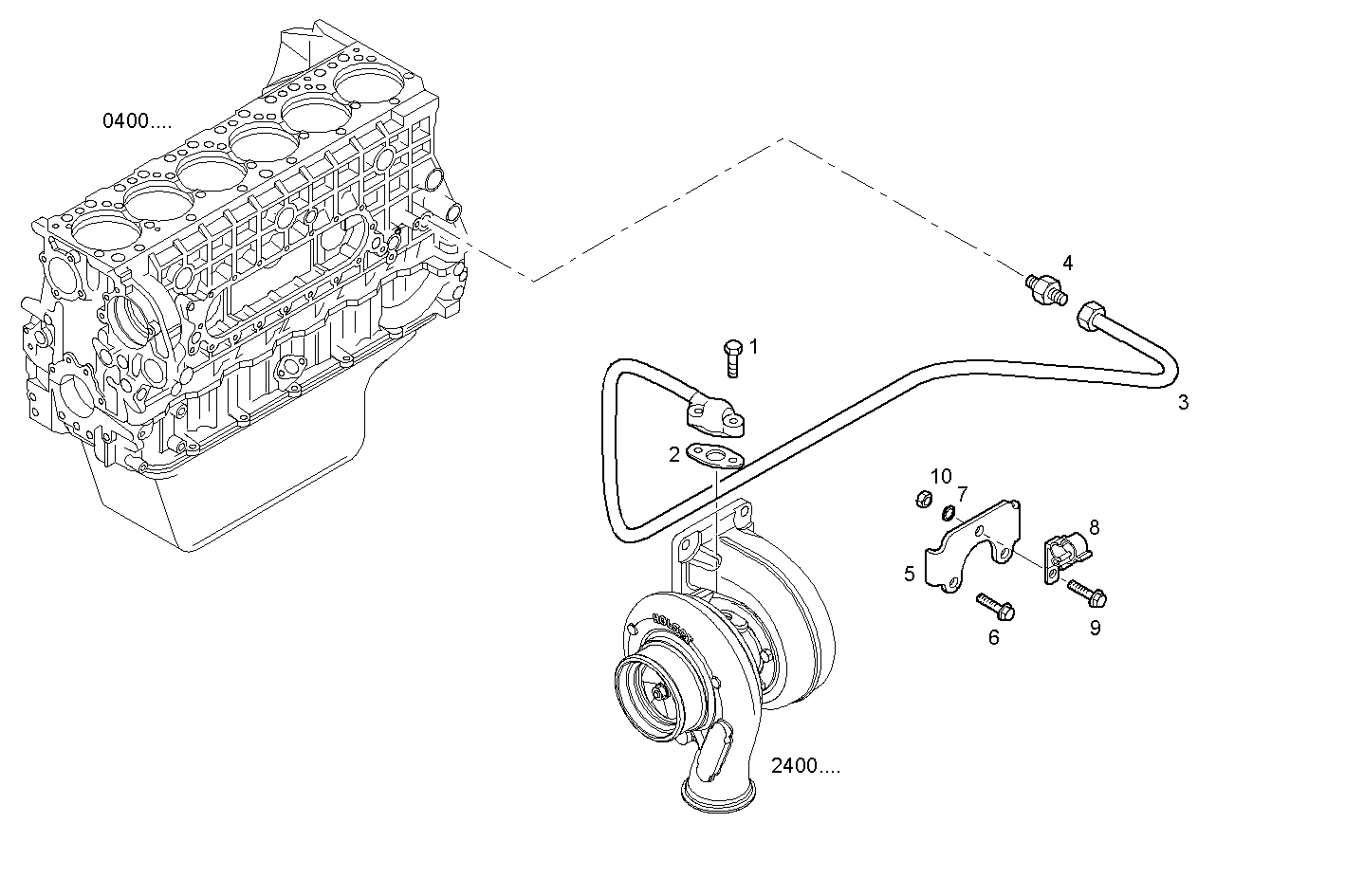

OIL DELIVERY LINE
C87ENTX60.00 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 61318303 | GASKET GASKET | 1 | |
| 3 | 504215637 | OIL LINE OIL LINE | 1 | |
| 4 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 5 | 504213767 | RETAINER RETAINER | 1 | |
| 6 | 16691424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 16666716 | WASHER WASHER | 1 | |
| 8 | 99453771 | RETAINER RETAINER | 1 | |
| 9 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17037925 | HEXAGON NUT HEXAGON NUT | 1 |
