WATER PREHEATER DEVICE - 120V
C87ENTX60.00 — CURSOR 9 - TIER 3

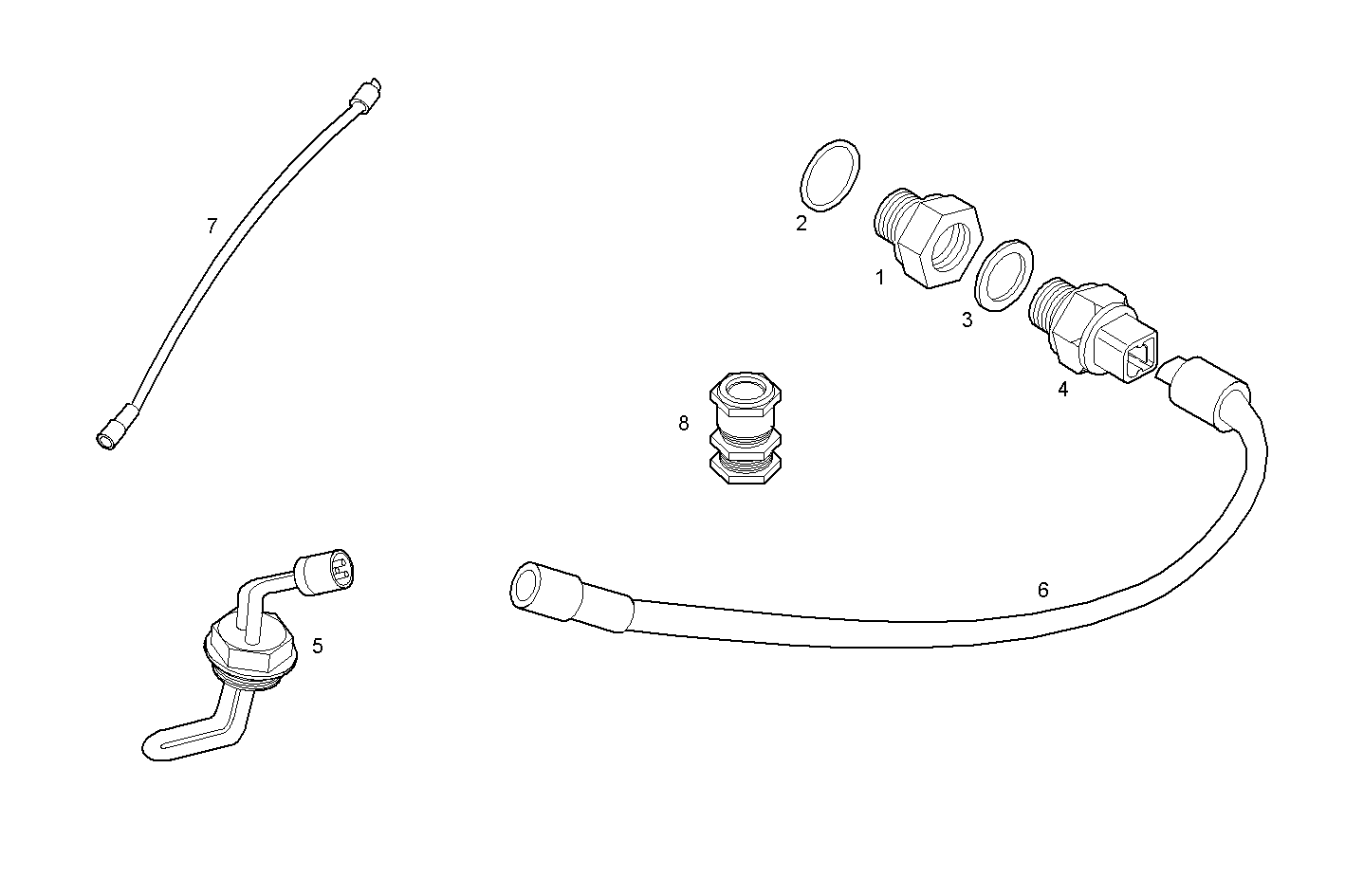

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 2 | 98474309 | WASHER WASHER | 1 | |
| 3 | 98474308 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 503110825 | THERMOSWITCH THERMOSWITCH | 1 | |
| 5 | 8046348 | HEATER HEATER | 1 | |
| 6 | 503111088 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 8038505 | WIRE/CABLE WIRE/CABLE | 1 | |
| 8 | 503111395 | GROMMET GROMMET | 1 |
