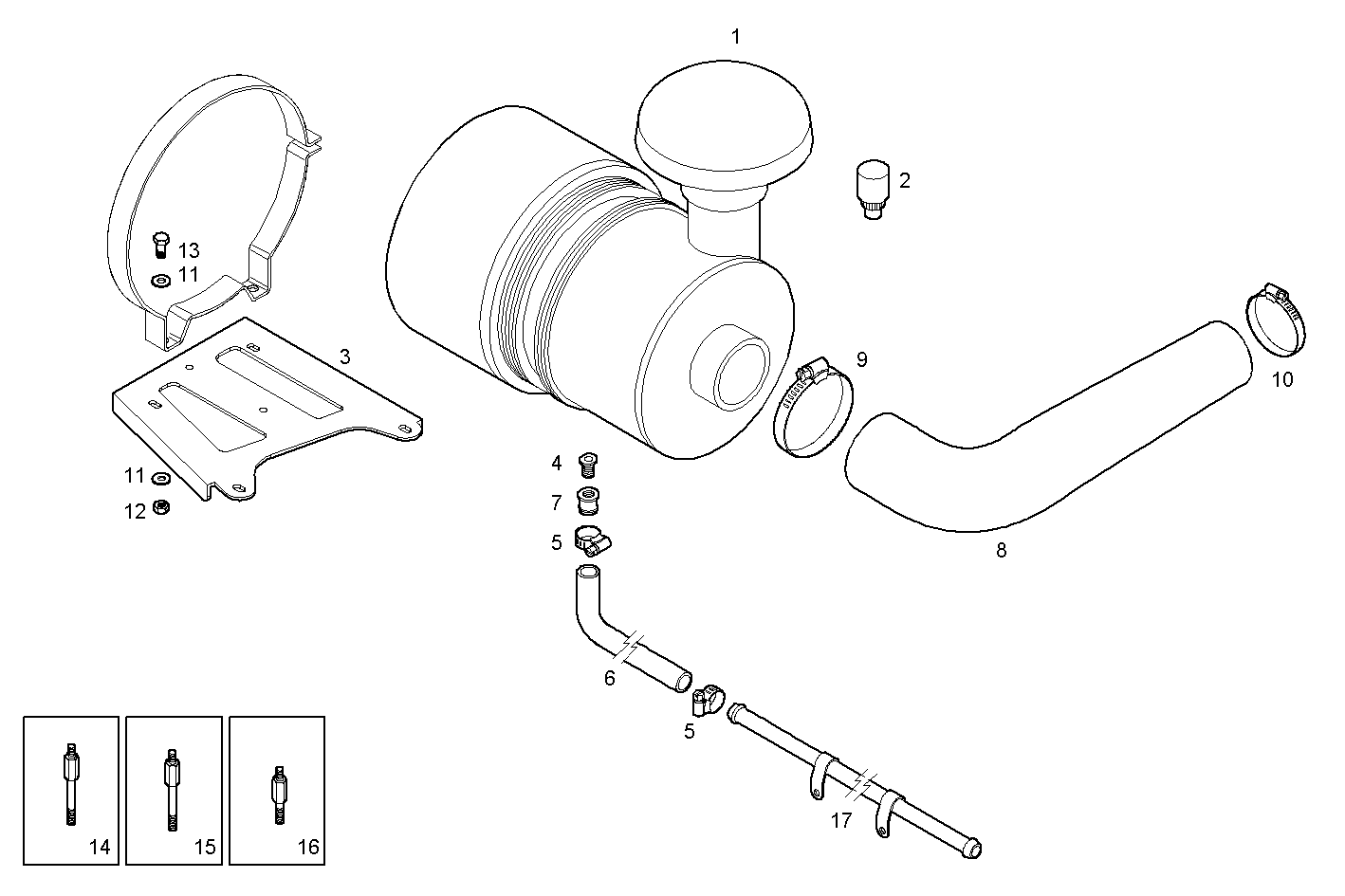

AIR CLEANER
CURSOR87TE1D.R991 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041166 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 3 | 8044683 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 4 | 8015315 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 17764594 | HOSE CLIP HOSE CLIP | 4 | |
| 6 | 8044962 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 7 | 8015133 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 8045050 | FILTER HOSE FILTER HOSE | 1 | |
| 9 | 17765791 | CLIP CLIP | 1 | |
| 10 | 17765494 | CLIP CLIP | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 12 | 17038131 | HEXAGON NUT HEXAGON NUT | 6 | |
| 13 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 8044744 | SPACING BAR SPACING BAR | 1 | |
| 15 | 8046579 | SPACING BAR SPACING BAR | 1 | |
| 16 | 8044745 | SPACING BAR SPACING BAR | 2 | |
| 17 | 8044952 | BREATHER PIPE BREATHER PIPE | 1 |
