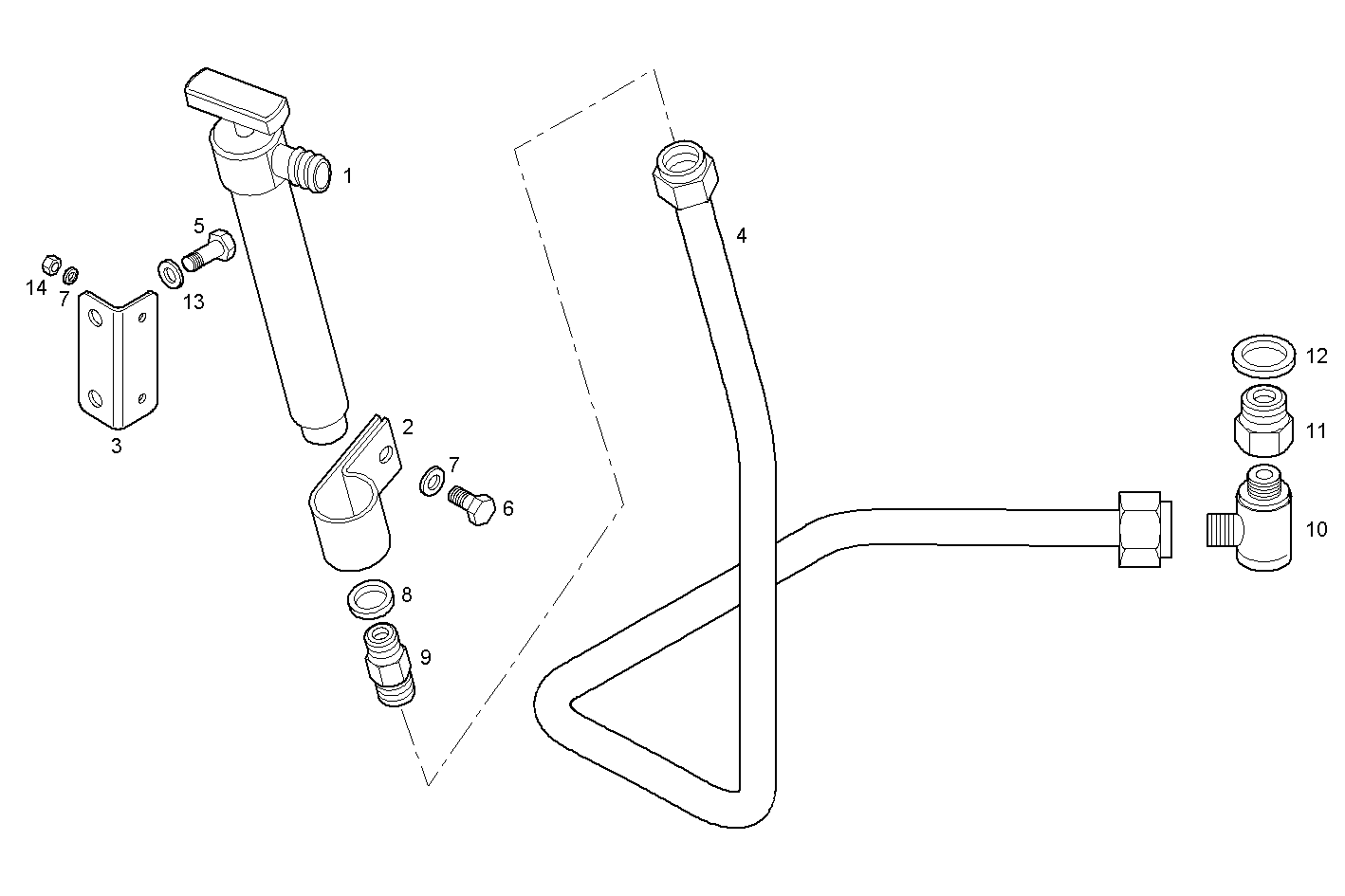

OIL OUTLET PUMP
CURSOR87TE1D.R991 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 4928851 | CLIP CLIP | 2 | |
| 3 | 8044835 | RETAINER RETAINER | 1 | |
| 4 | 8044841 | OIL LINE OIL LINE | 1 | |
| 5 | 16612025 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 99489019 | WASHER WASHER | 1 | |
| 9 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 10 | 8030711 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4935200 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 99489022 | SEAL GASKET SEAL GASKET | 2 | |
| 13 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 17039925 | HEXAGON NUT HEXAGON NUT | 2 |
