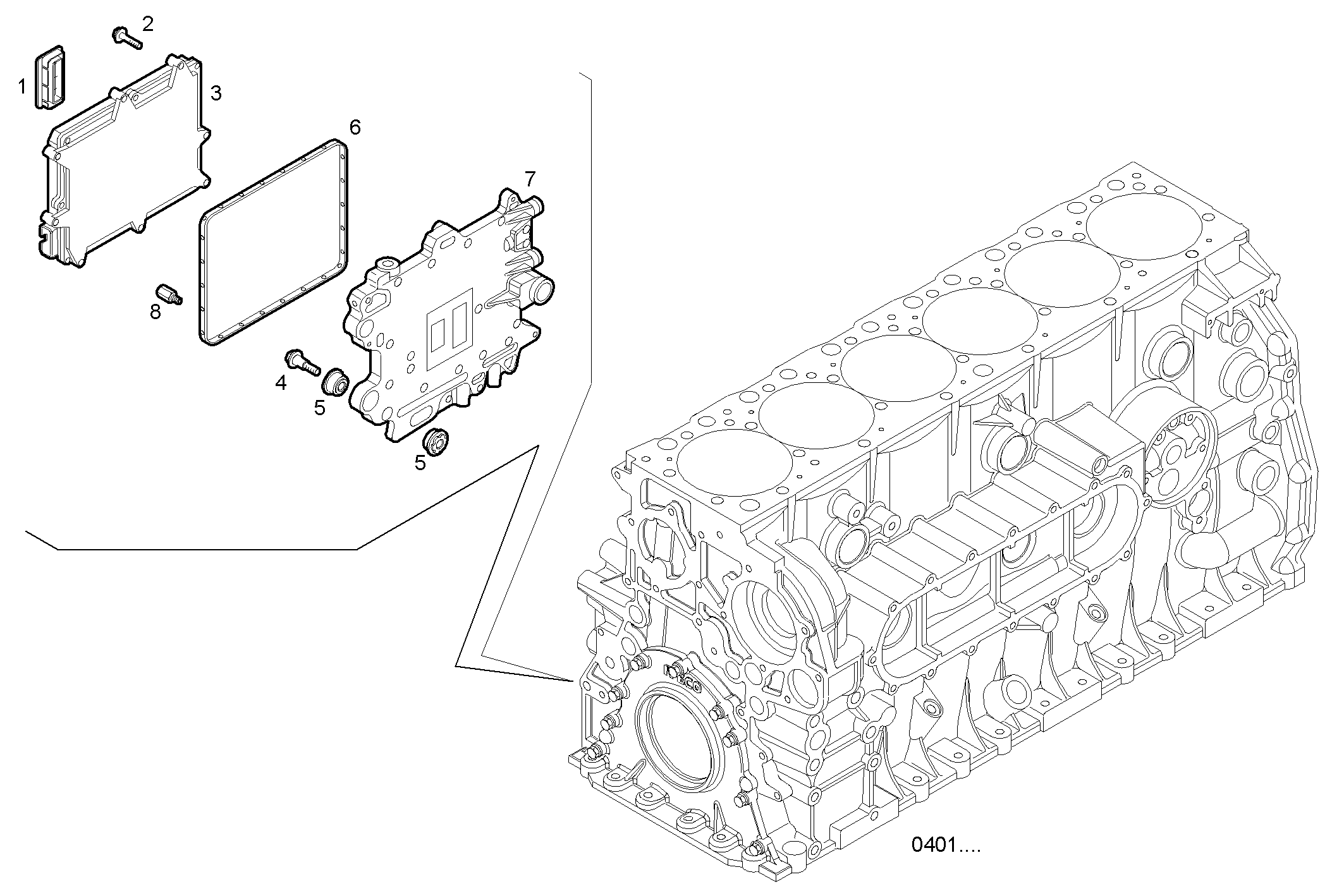

ELECTRONIC CONTROL UNIT
F2CE9687A*E001 — CURSOR 9 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504043102 | RUBBER PLUG RUBBER PLUG | 1 | |
| 2 | 16586025 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 3 | 8094789 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 4 | 16586825 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 98498817 | DOWEL DOWEL | 6 | |
| 6 | 504070042 | GASKET GASKET | 1 | |
| 7 | 504097239 | SUPPORT SUPPORT | 1 | |
| 8 | 99475194 | SPACING BAR SPACING BAR | 2 |
