This catalog page lists every parts diagram we have indexed for the FPT 7450SU00.00 engine, classified under INDUSTRIAL / Industrial. Each of the 47 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this 7450SU00.00 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the 7450SU00.00 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT 7450SU00.00?
There are 47 parts diagrams for the FPT 7450SU00.00 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the 7450SU00.00?
No. You can start from the 7450SU00.00 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT 7450SU00.00 used for?
The 7450SU00.00 is catalogued under INDUSTRIAL / Industrial in our FPT parts database.
COMPLETE ENGINE
CRANKCASE
OIL SUMP

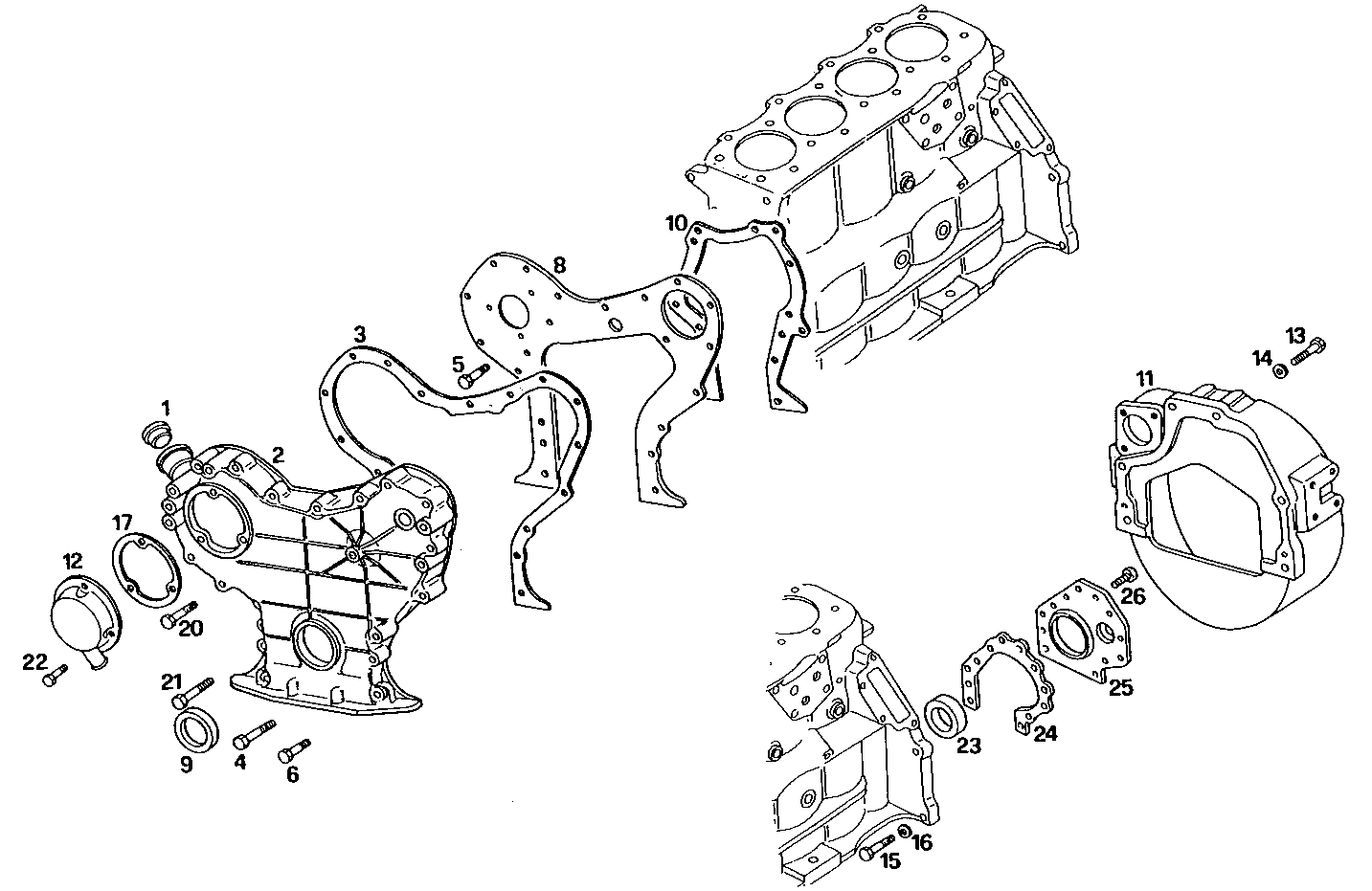

INSERTED BOX ASSEM.

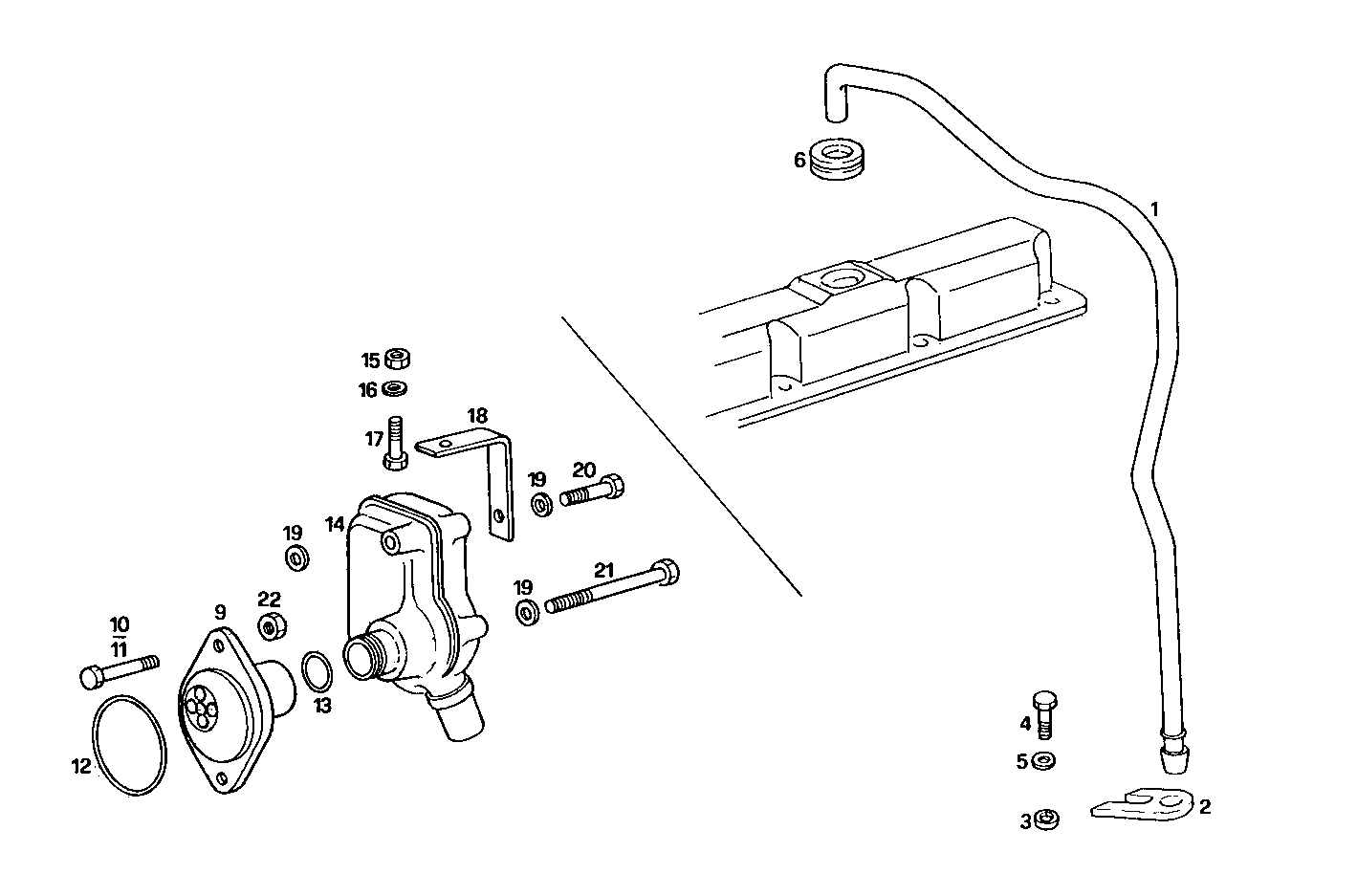

ENGINE BREATHERS
CYLINDER HEAD

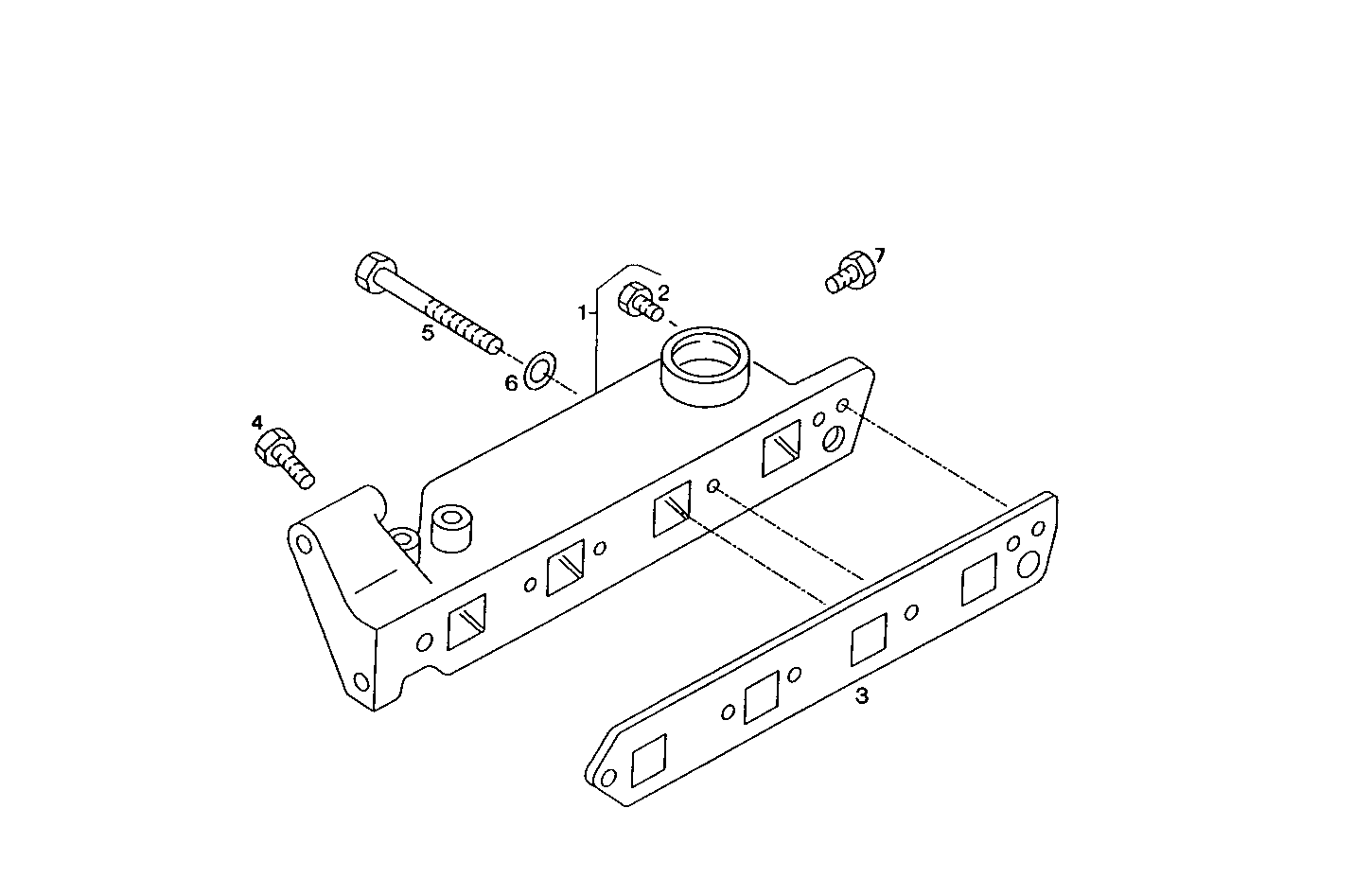

INTAKE MANIFOLD

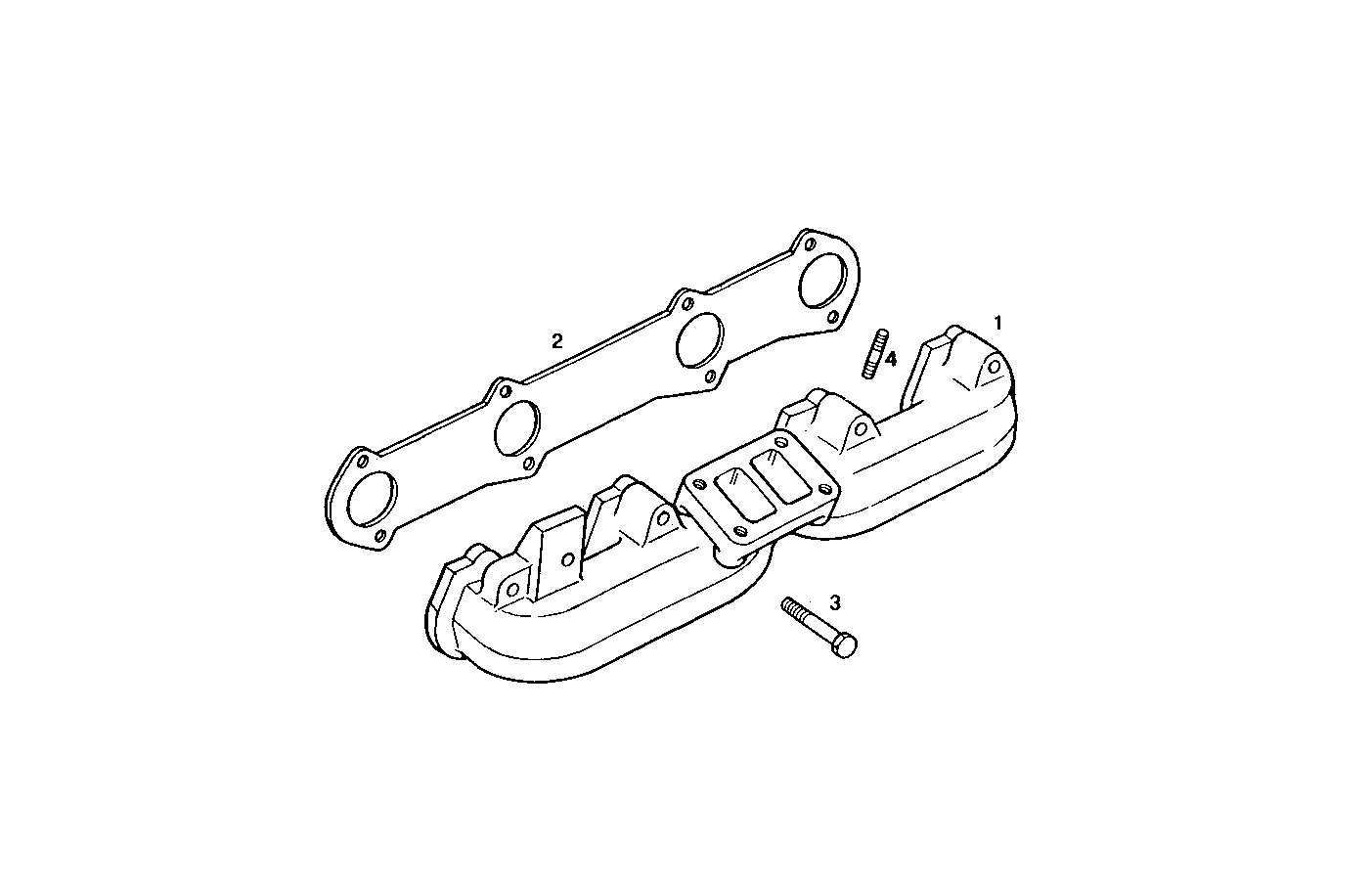

EXHAUST MANIFOLD
CRANK SHAFT - CONNECTING RODS
THRUST RING SET - MAIN AND ROD BEARINGS
PISTON ASSY - PISTON RINGS - PISTON PIN
ENGINE FLYWHEEL - DAMPER
ADDITIONAL MASSES
TIMING PARTS
INJECTION PUMP ASSY
INJECTORS
FUEL FILTER
INJECTION PIPES

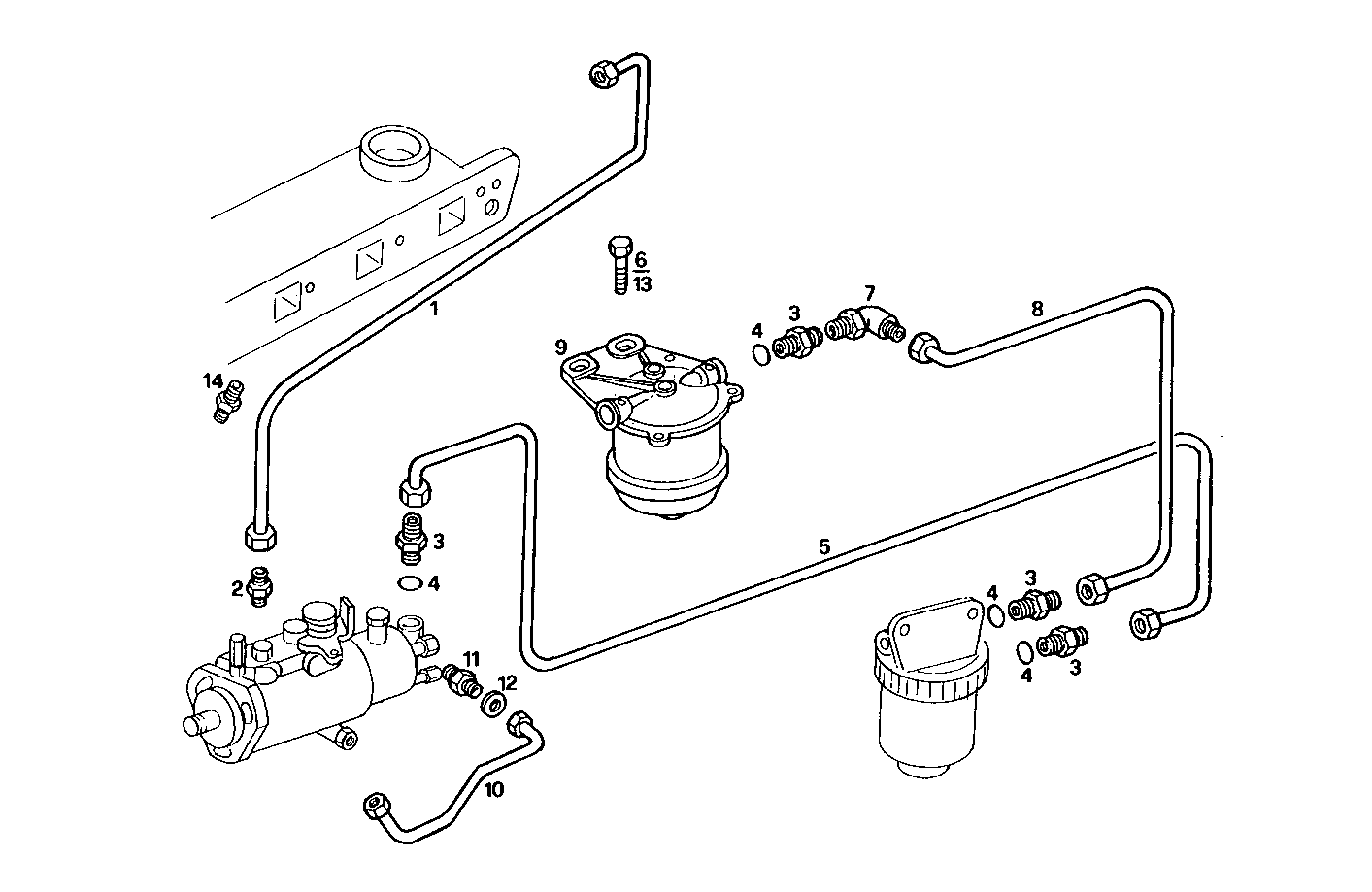

FUEL LINES
