This catalog page lists every parts diagram we have indexed for the FPT 8061Si15.05 engine, classified under INDUSTRIAL / Industrial. Each of the 96 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this 8061Si15.05 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the 8061Si15.05 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT 8061Si15.05?
There are 96 parts diagrams for the FPT 8061Si15.05 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the 8061Si15.05?
No. You can start from the 8061Si15.05 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT 8061Si15.05 used for?
The 8061Si15.05 is catalogued under INDUSTRIAL / Industrial in our FPT parts database.
STRIPPED ENGINE
CRANKCASE
OIL SUMP
INSERTED BOX ASSEM.
ENGINE BREATHERS

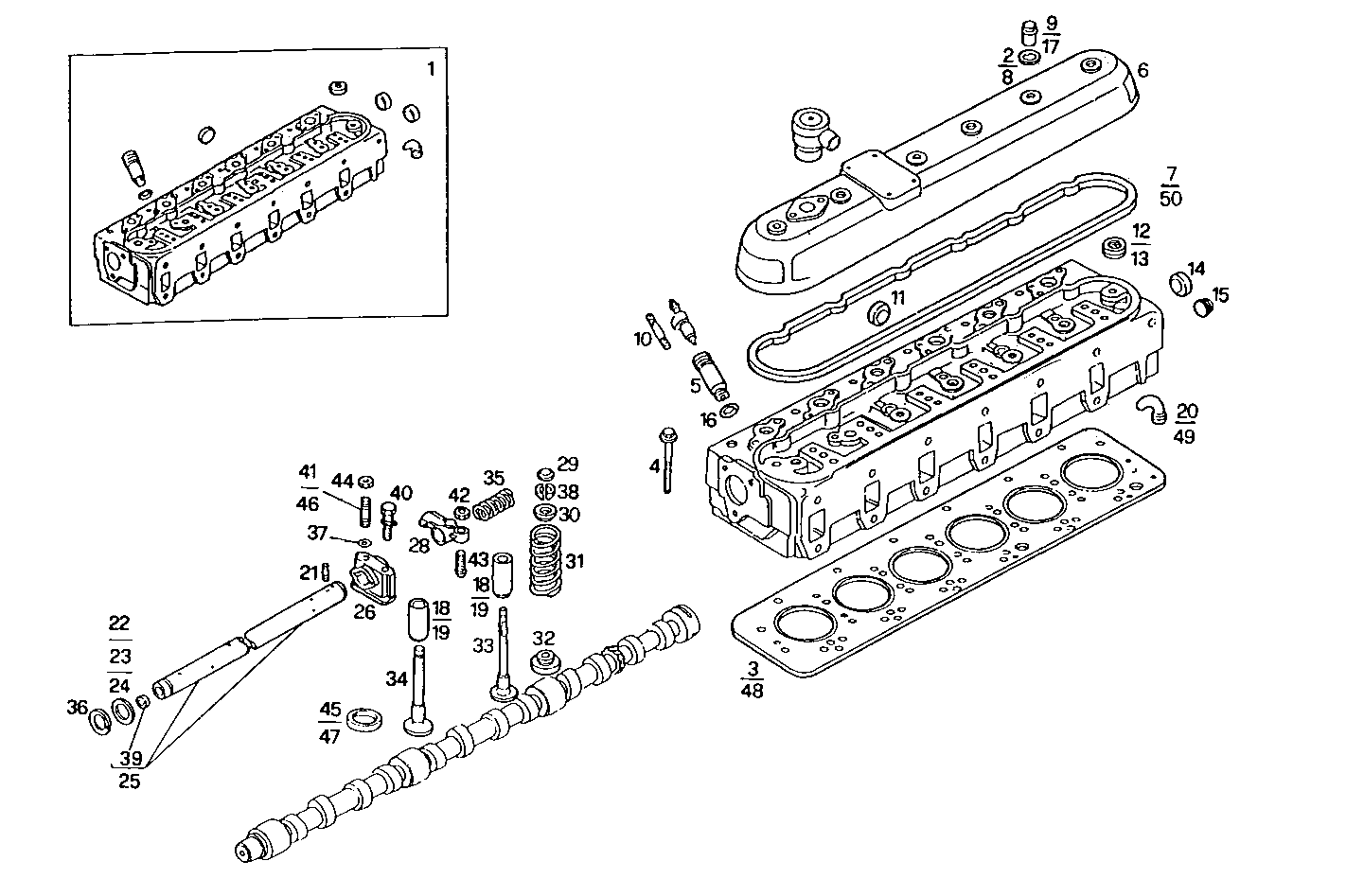

CYLINDER HEAD
INTAKE MANIFOLD
EXHAUST MANIFOLD
CRANK SHAFT - CONNECTING RODS
THRUST RING SET - MAIN AND ROD BEARINGS
PISTON ASSY - PISTON RINGS - PISTON PIN
ENGINE FLYWHEEL - DAMPER
GEAR DRIVE
TIMING PARTS
INJECTION PUMP ASSY
INJECTION PUMP DRIVE
INJECTORS
NOZZLE HOLDER (COMPONENTS)
NOZZLE HOLDER (COMPONENTS)
