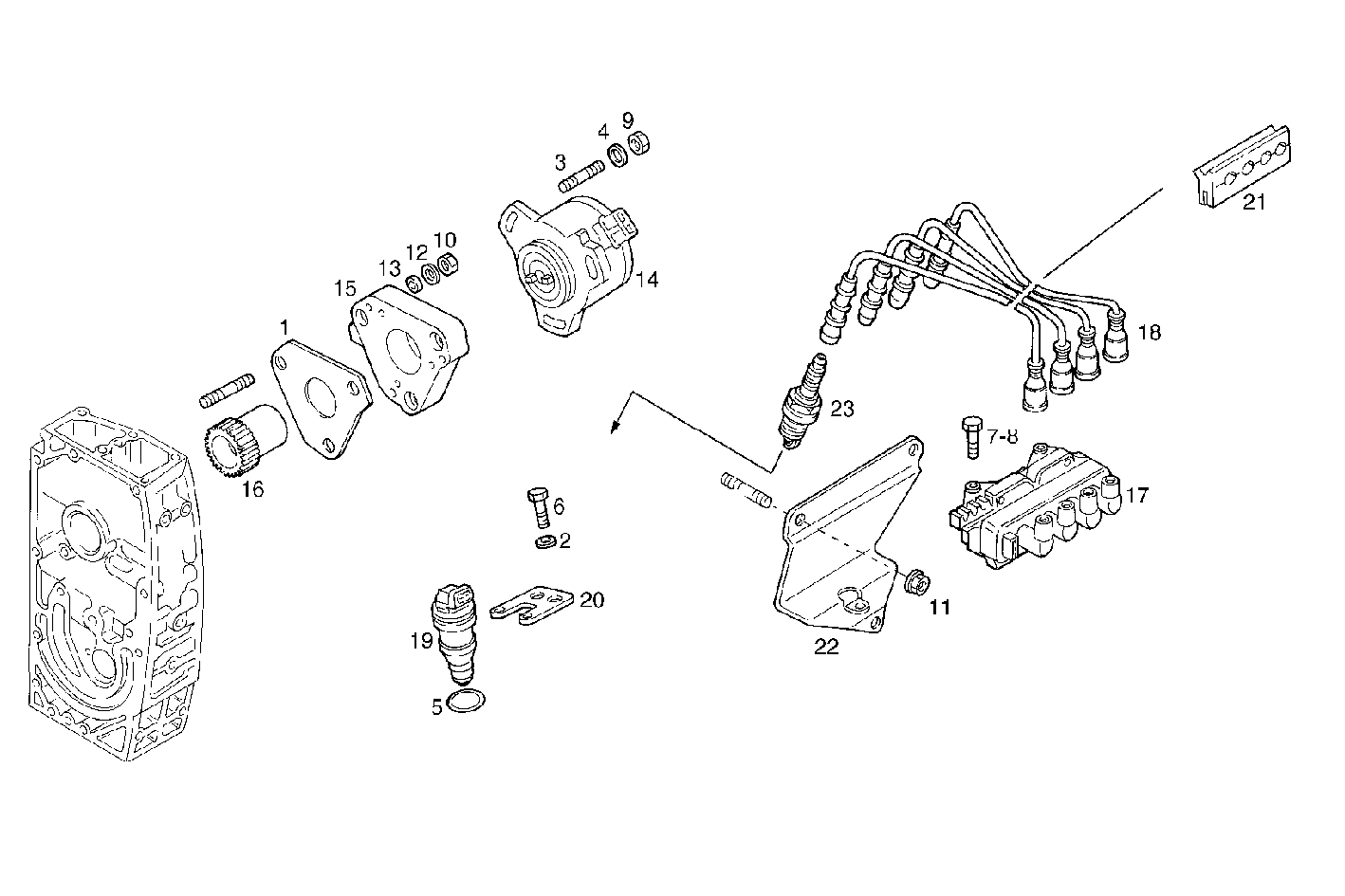

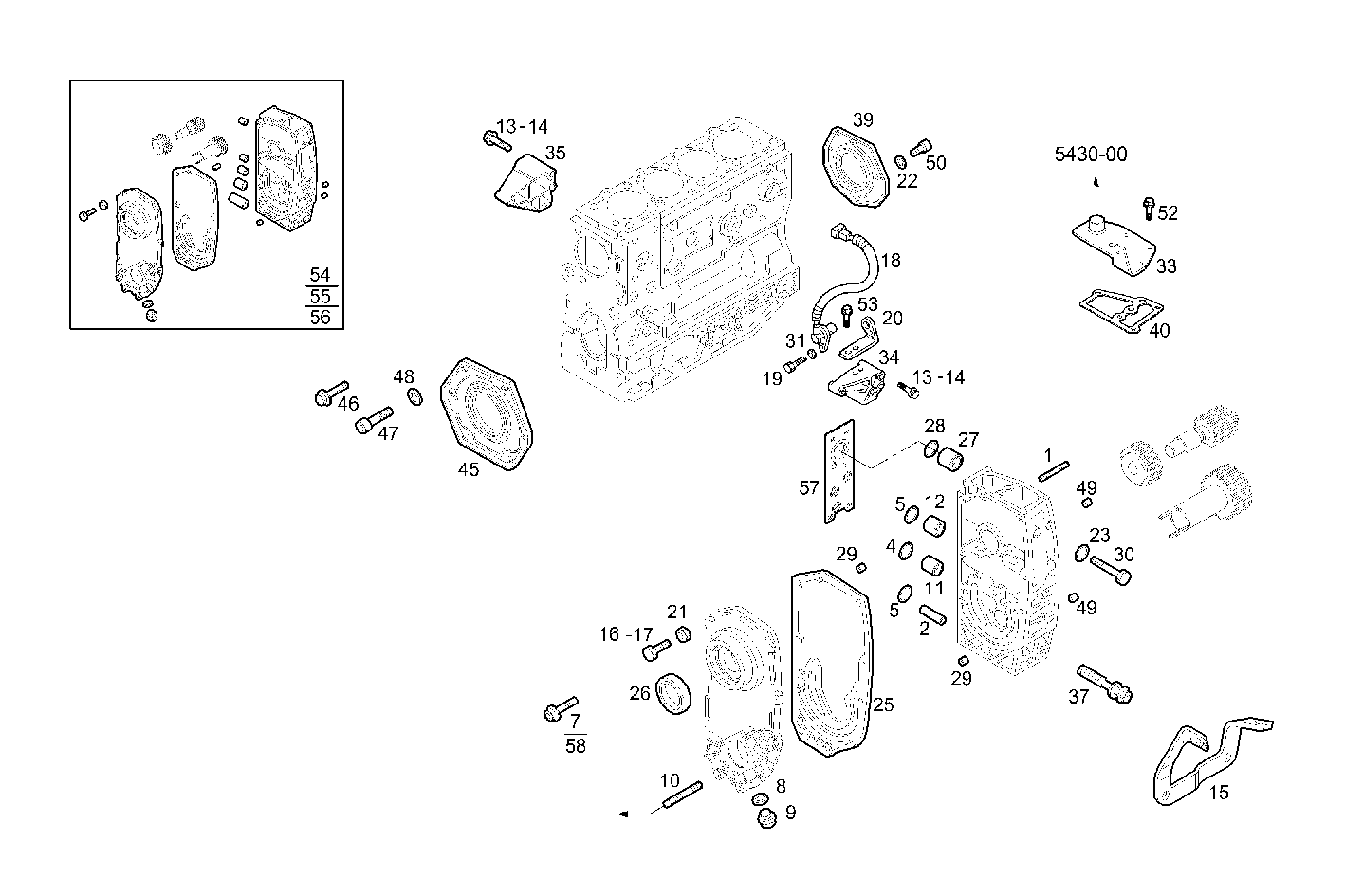

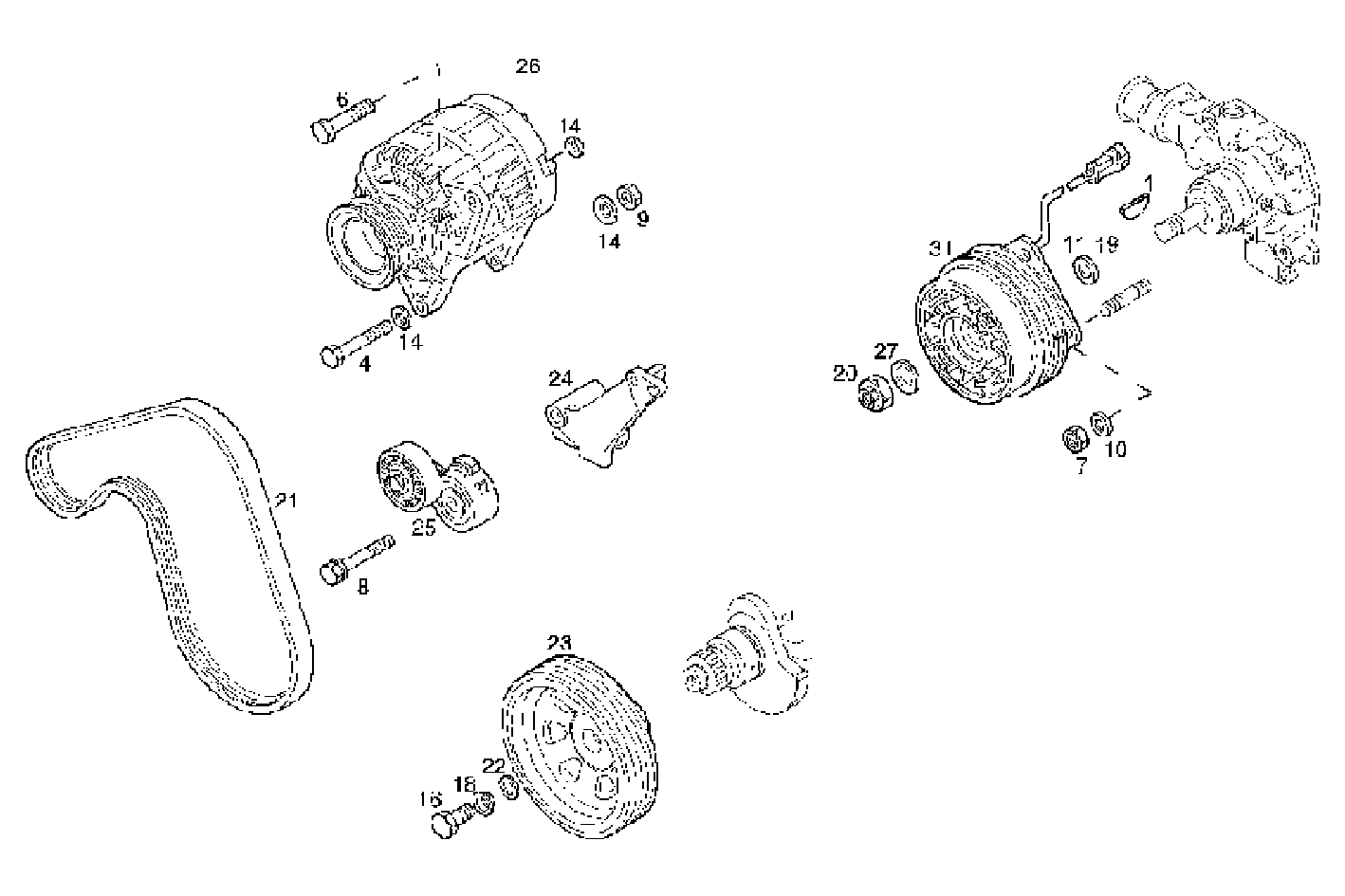

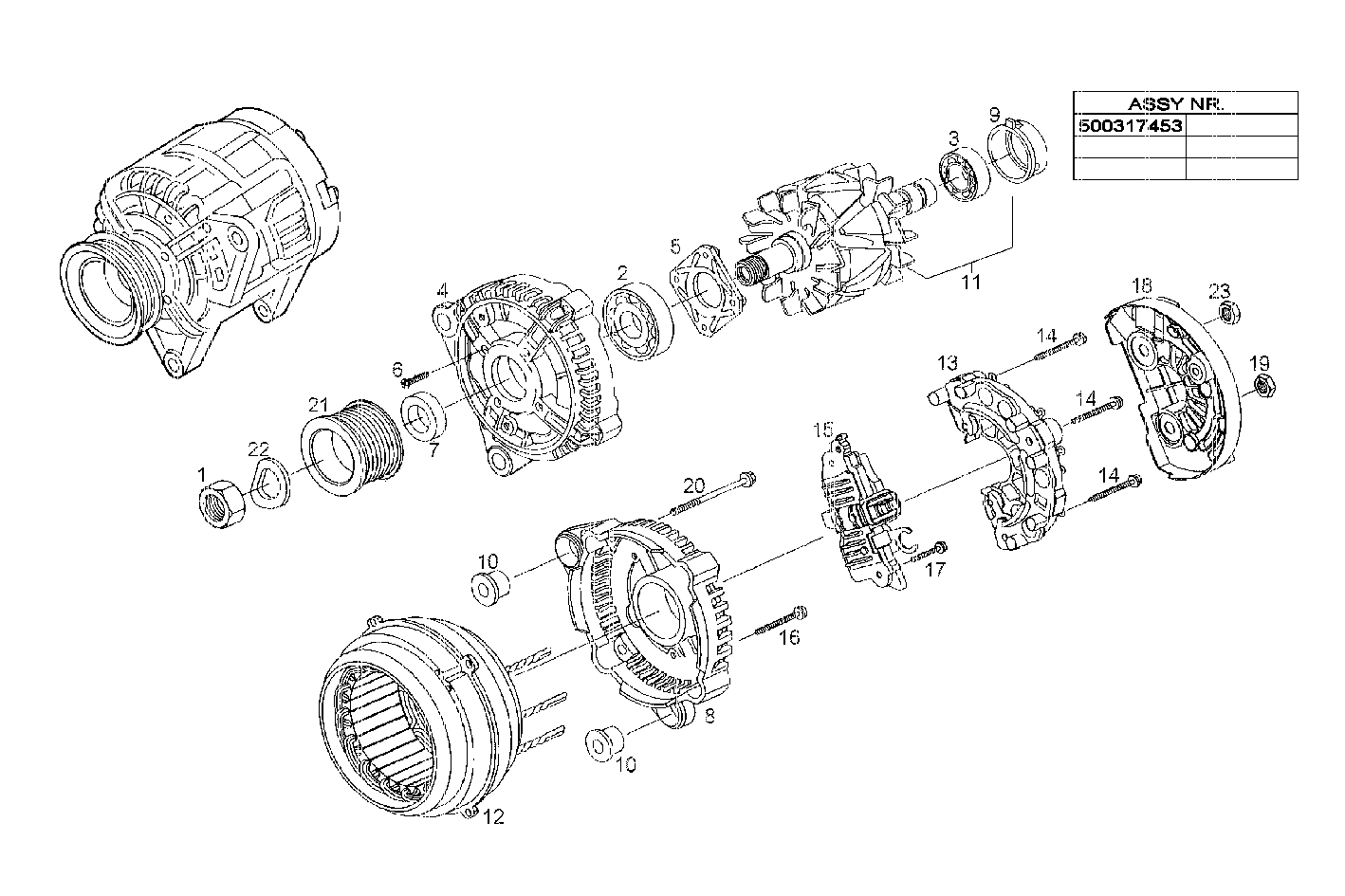

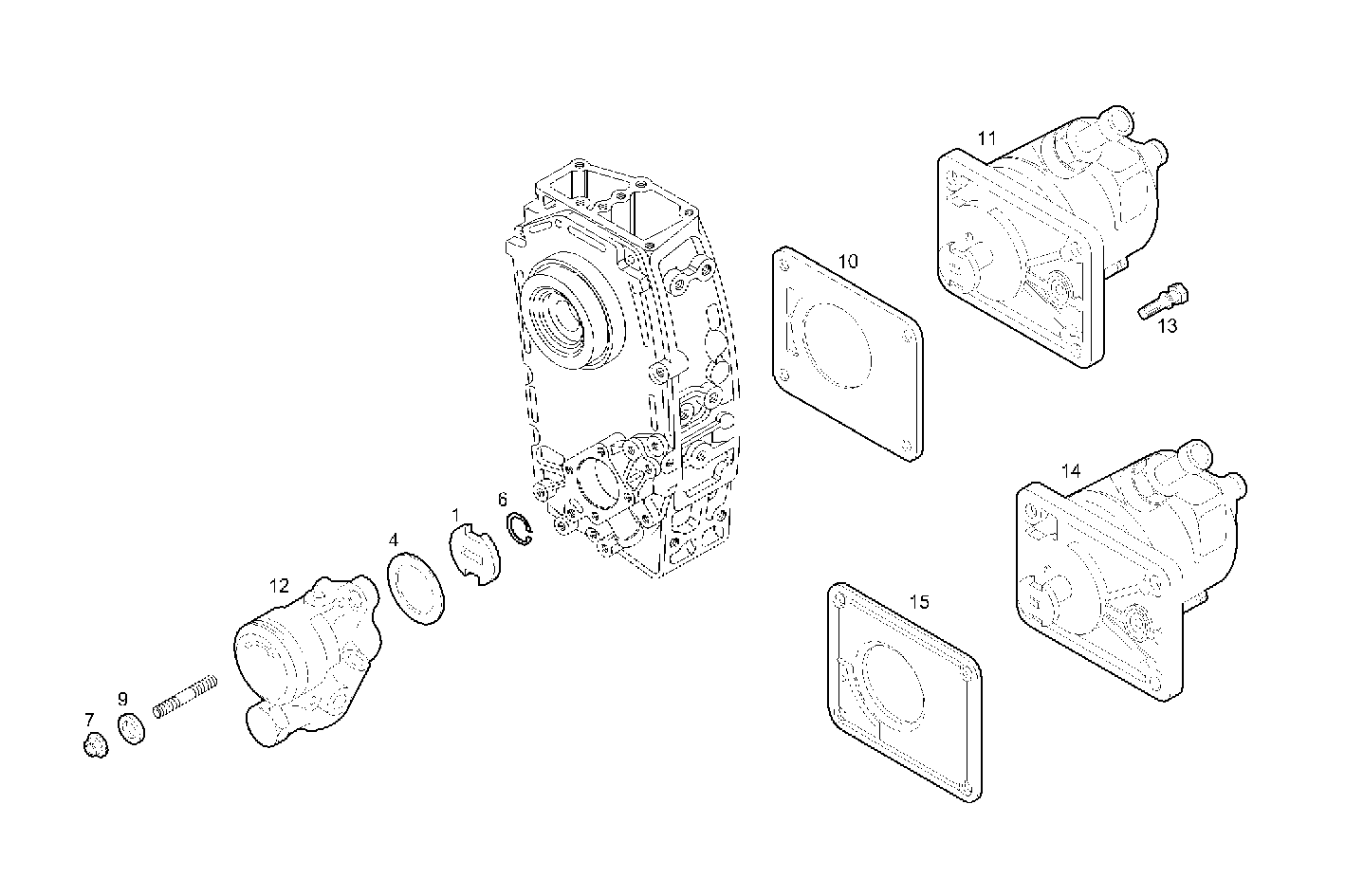

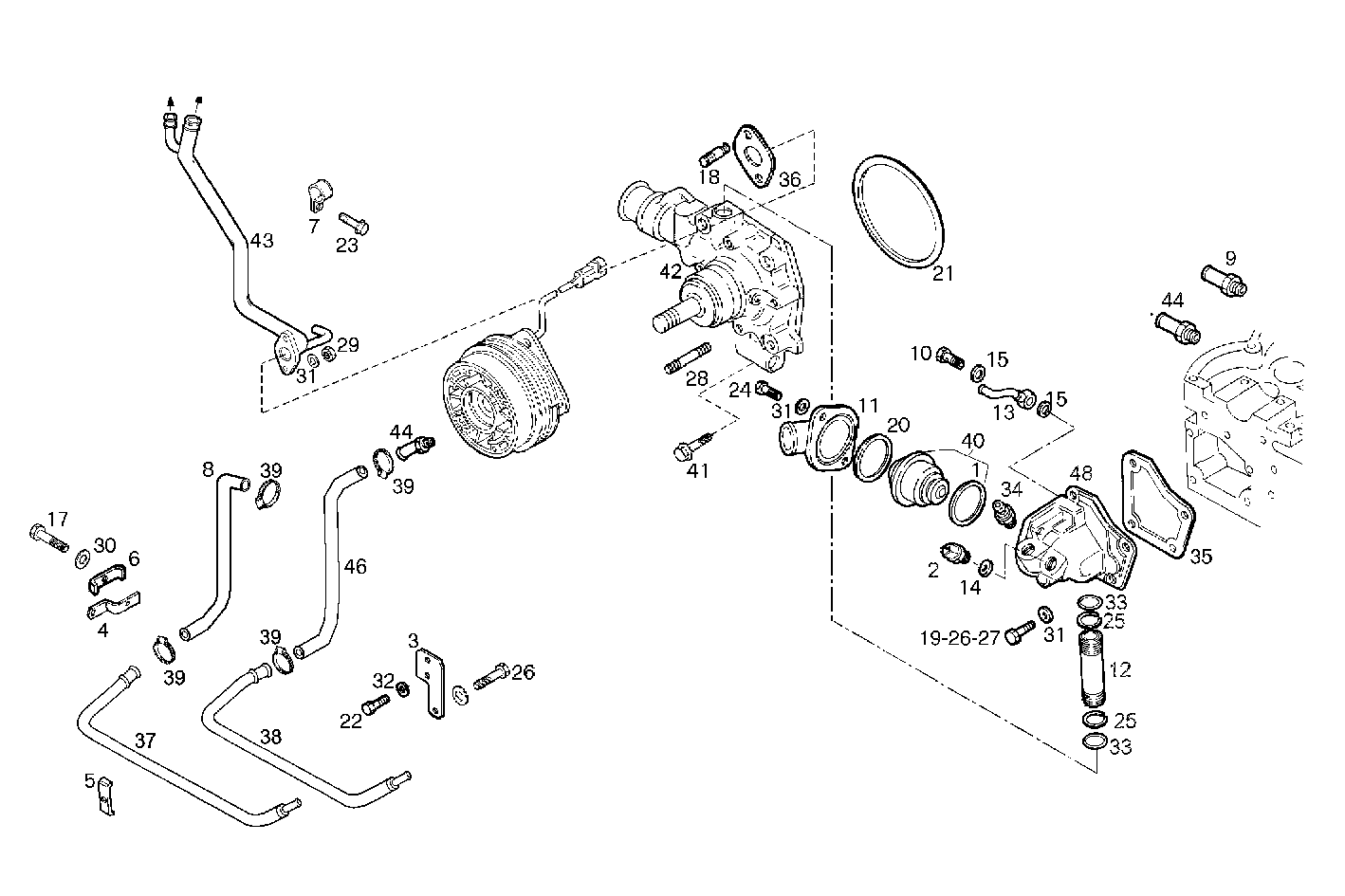

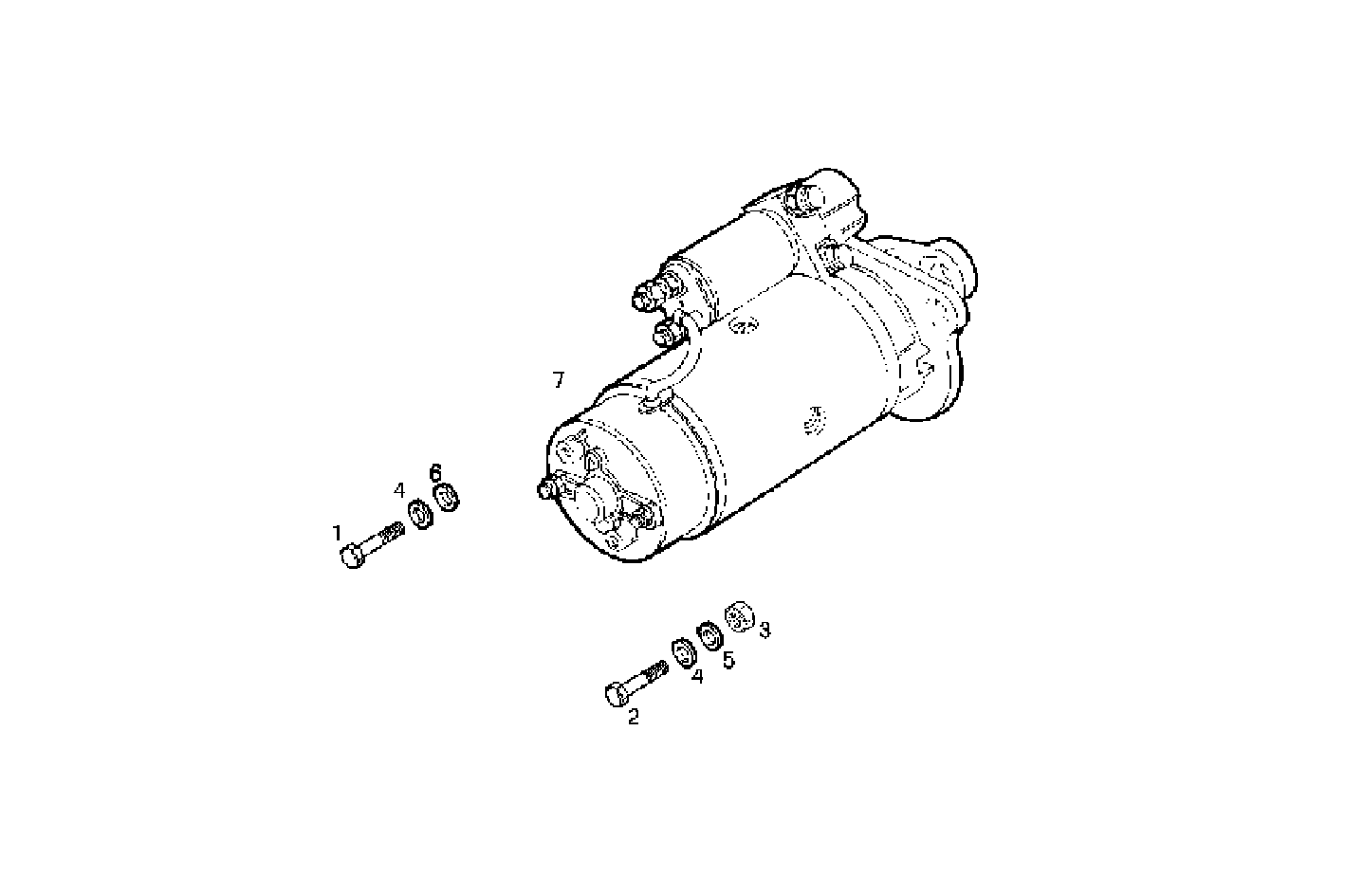

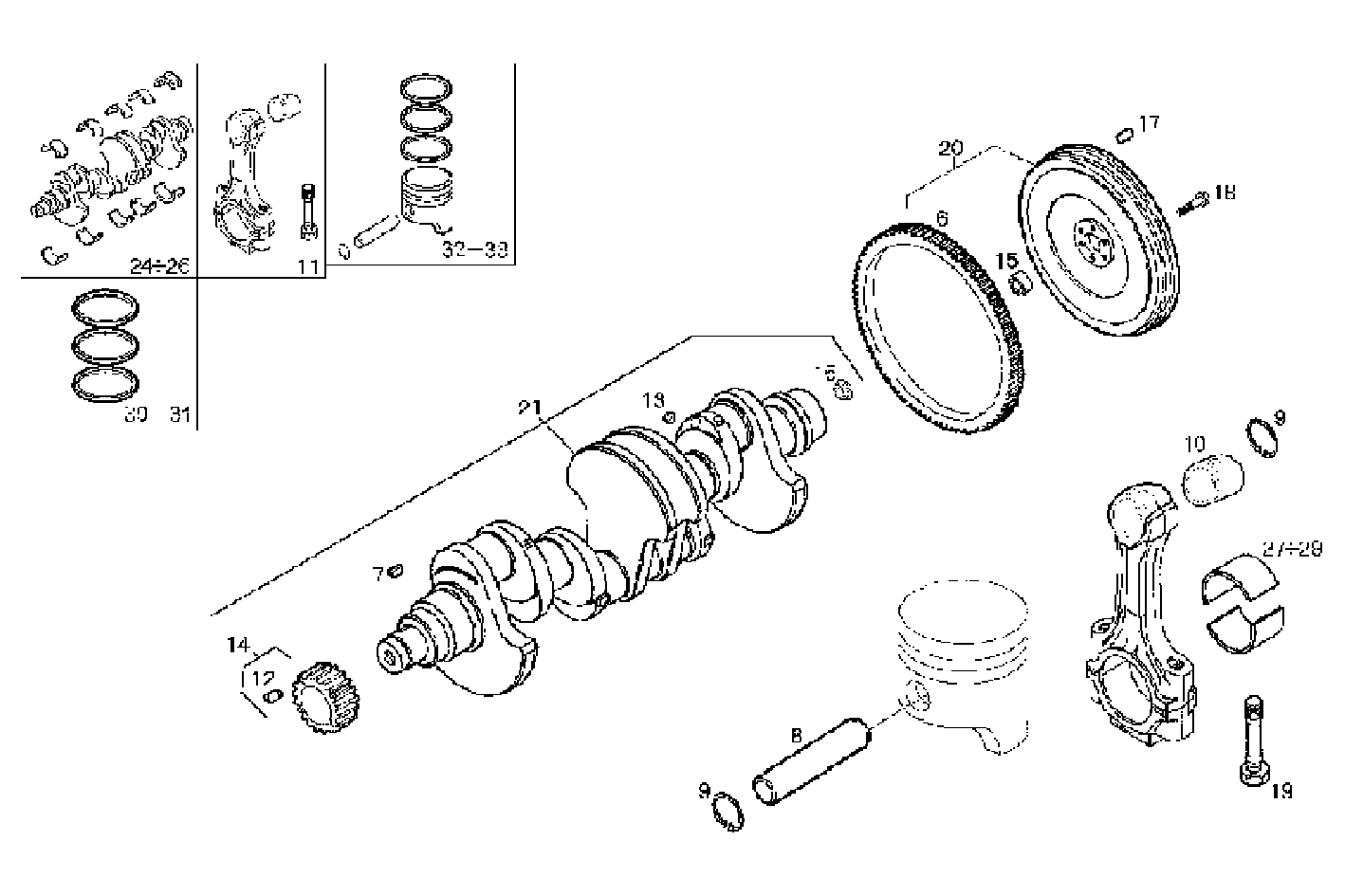

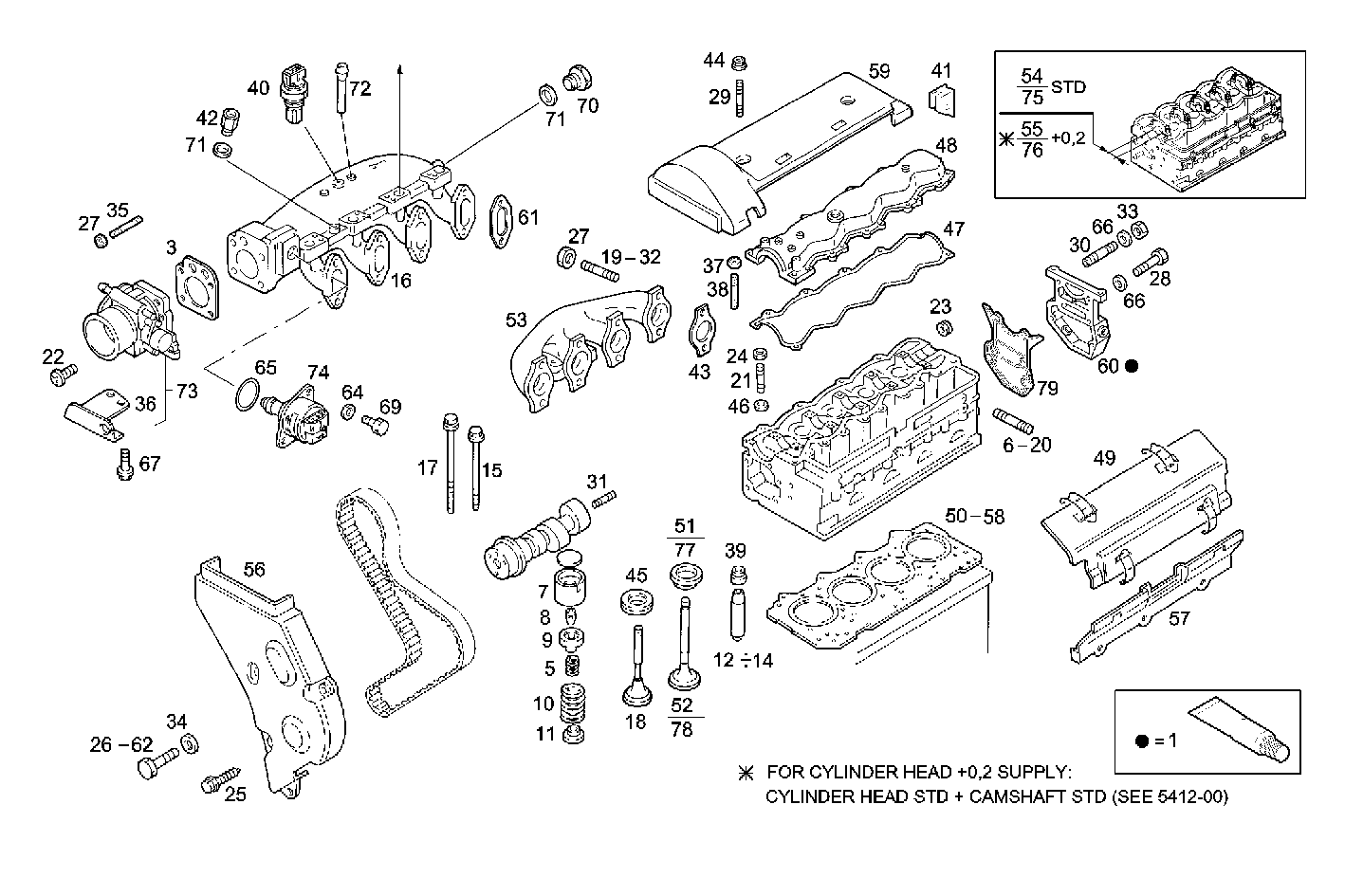

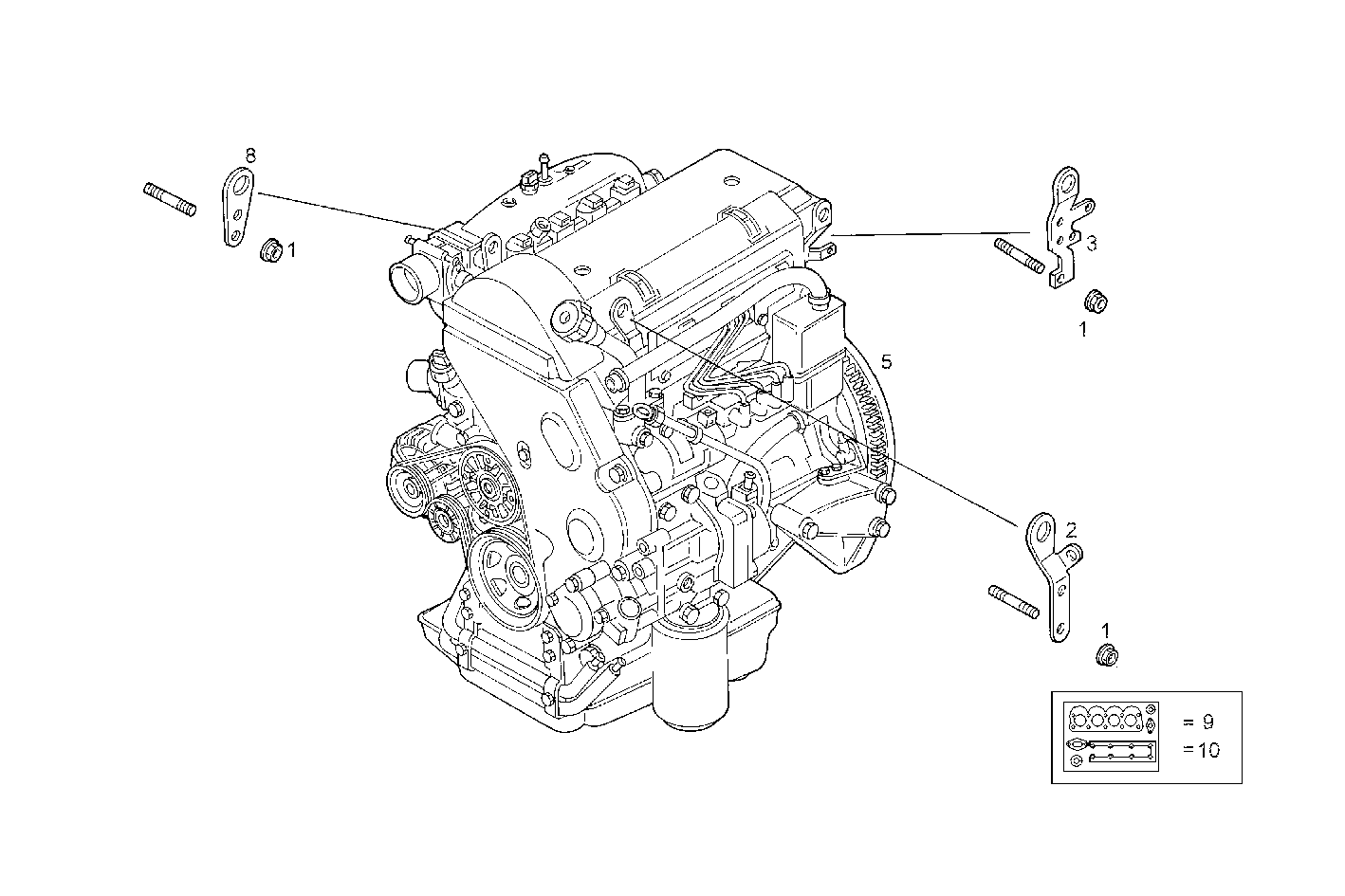

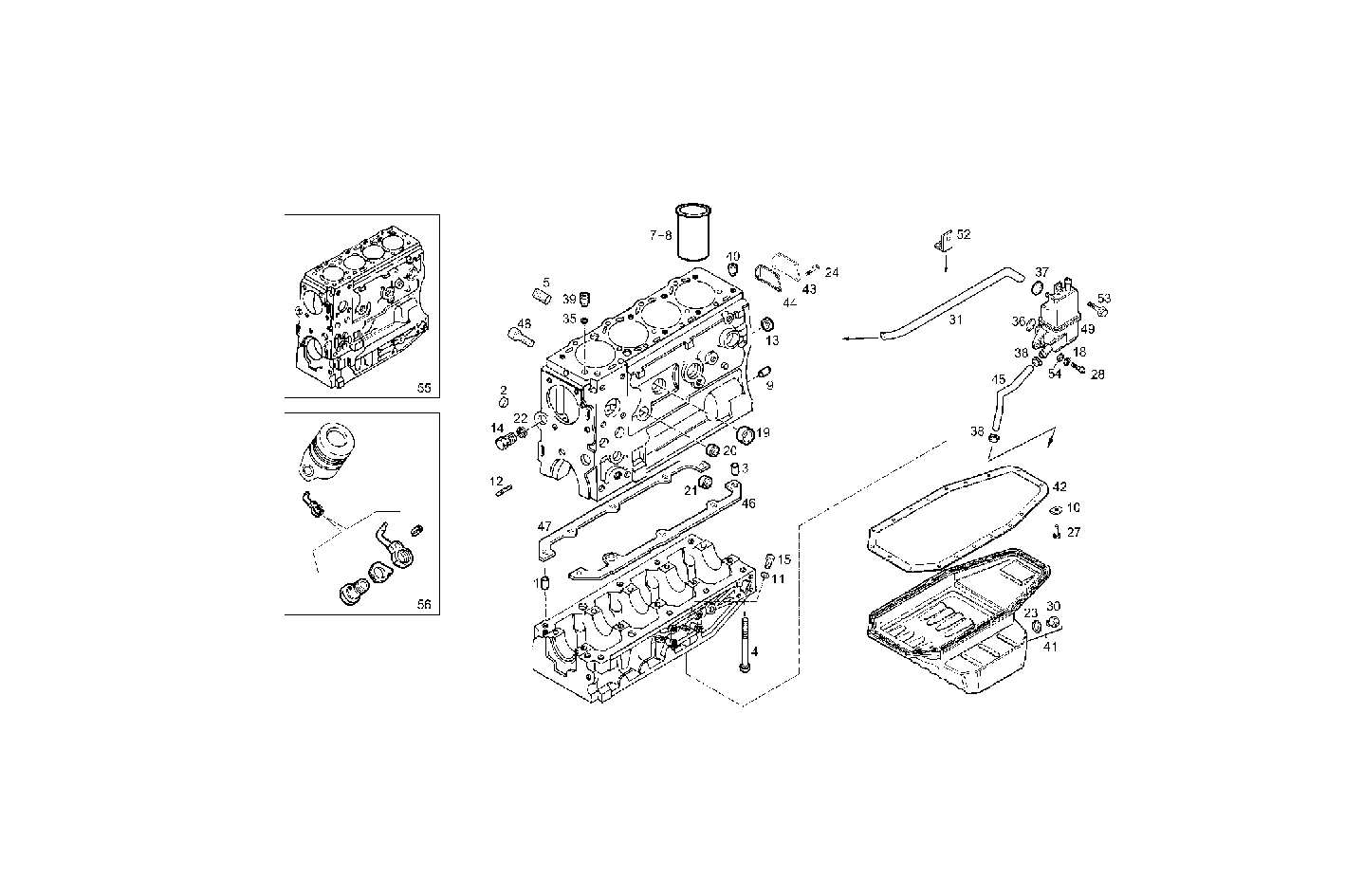

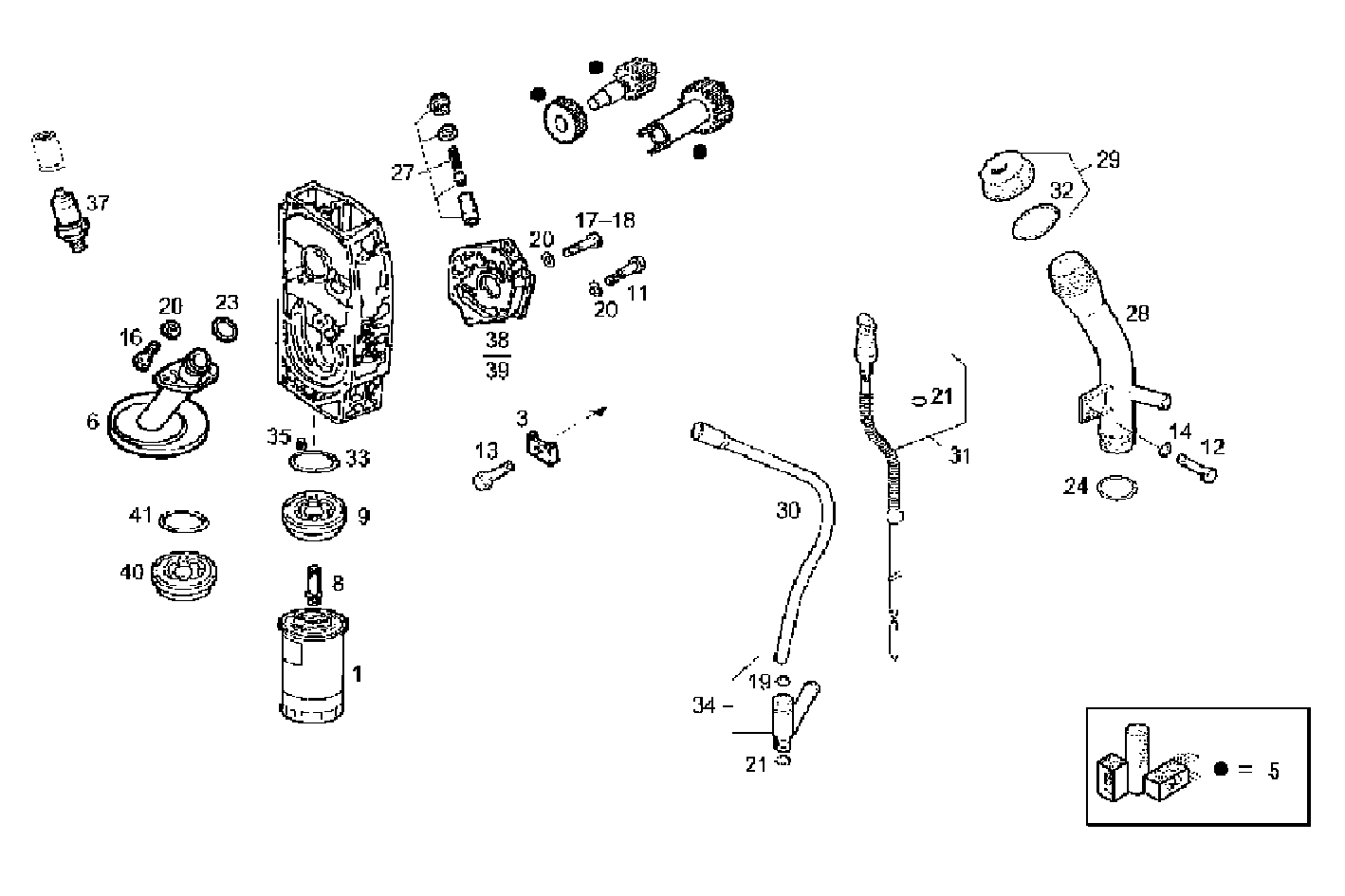

This catalog page lists every parts diagram we have indexed for the FPT 8149.03.3791 engine, classified under AUTOMOTIVE / Automotive - gas. Each of the 14 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this 8149.03.3791 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the 8149.03.3791 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT 8149.03.3791?
There are 14 parts diagrams for the FPT 8149.03.3791 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the 8149.03.3791?
No. You can start from the 8149.03.3791 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT 8149.03.3791 used for?
The 8149.03.3791 is catalogued under AUTOMOTIVE / Automotive - gas in our FPT parts database.
