This catalog page lists every parts diagram we have indexed for the FPT 8210i03.00A550 engine, classified under POWER GENERATION / Genset Engines. Each of the 65 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this 8210i03.00A550 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the 8210i03.00A550 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT 8210i03.00A550?
There are 65 parts diagrams for the FPT 8210i03.00A550 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the 8210i03.00A550?
No. You can start from the 8210i03.00A550 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT 8210i03.00A550 used for?
The 8210i03.00A550 is catalogued under POWER GENERATION / Genset Engines in our FPT parts database.

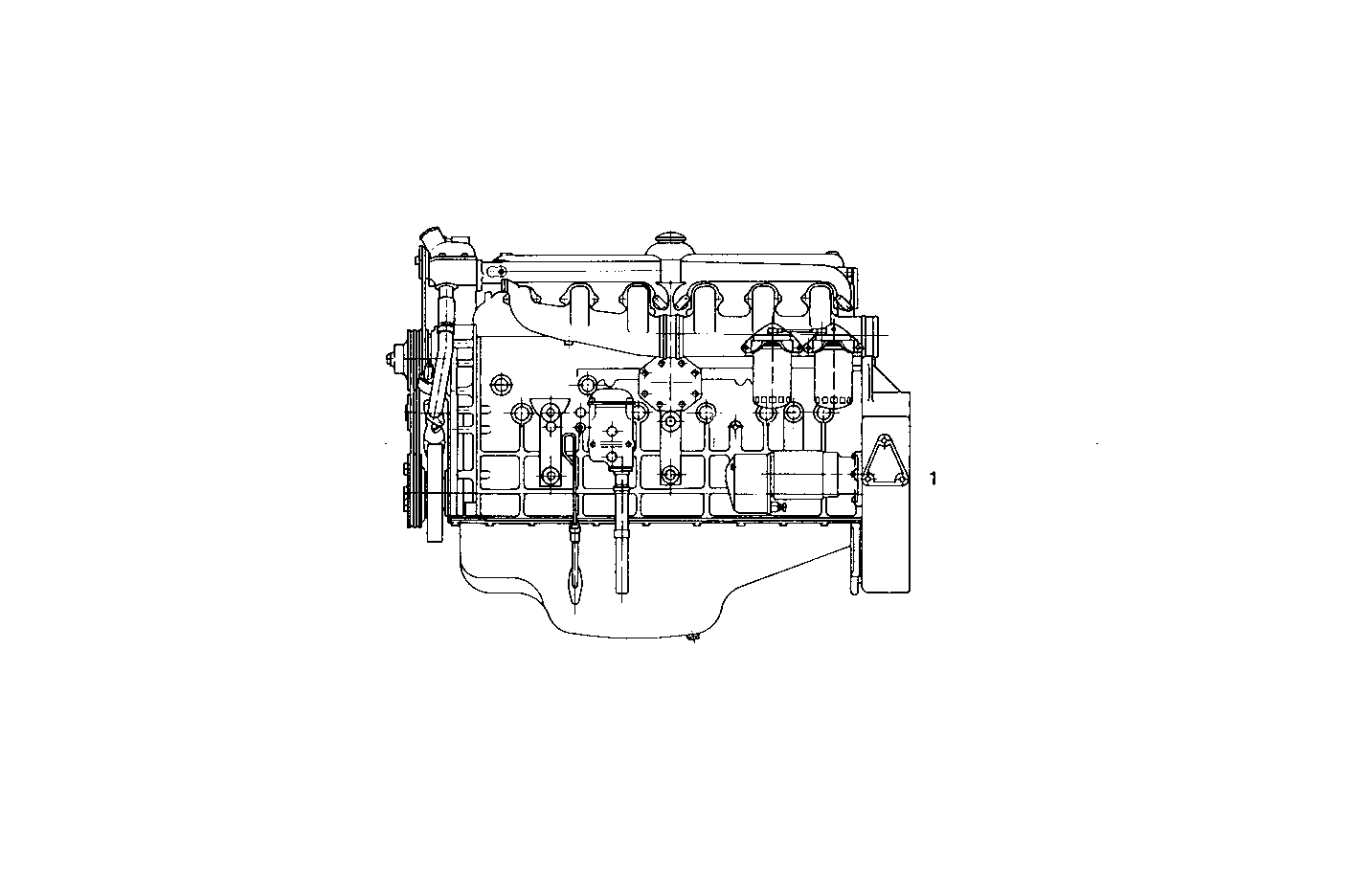

COMPLETE ENGINE

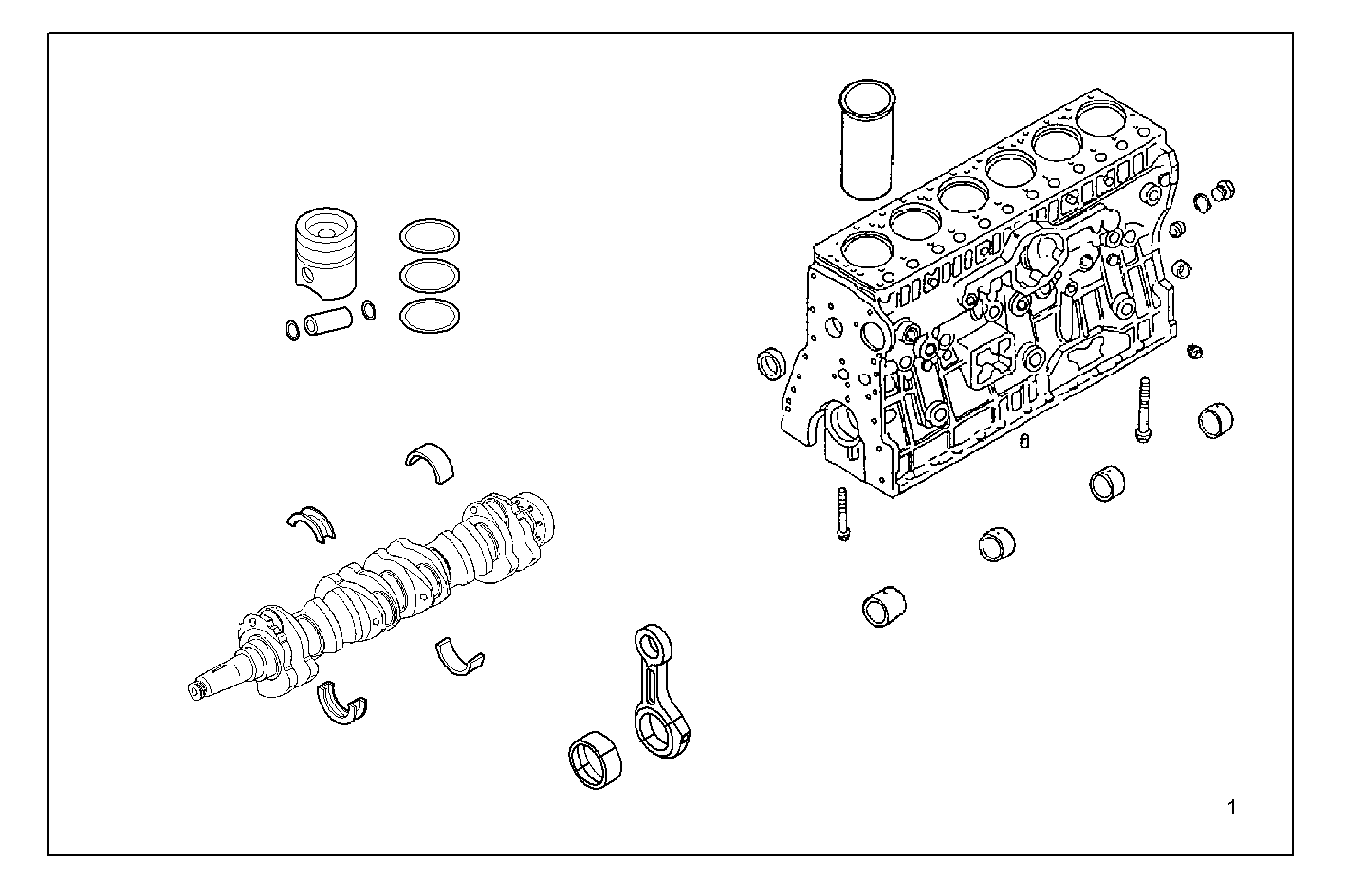

STRIPPED ENGINE

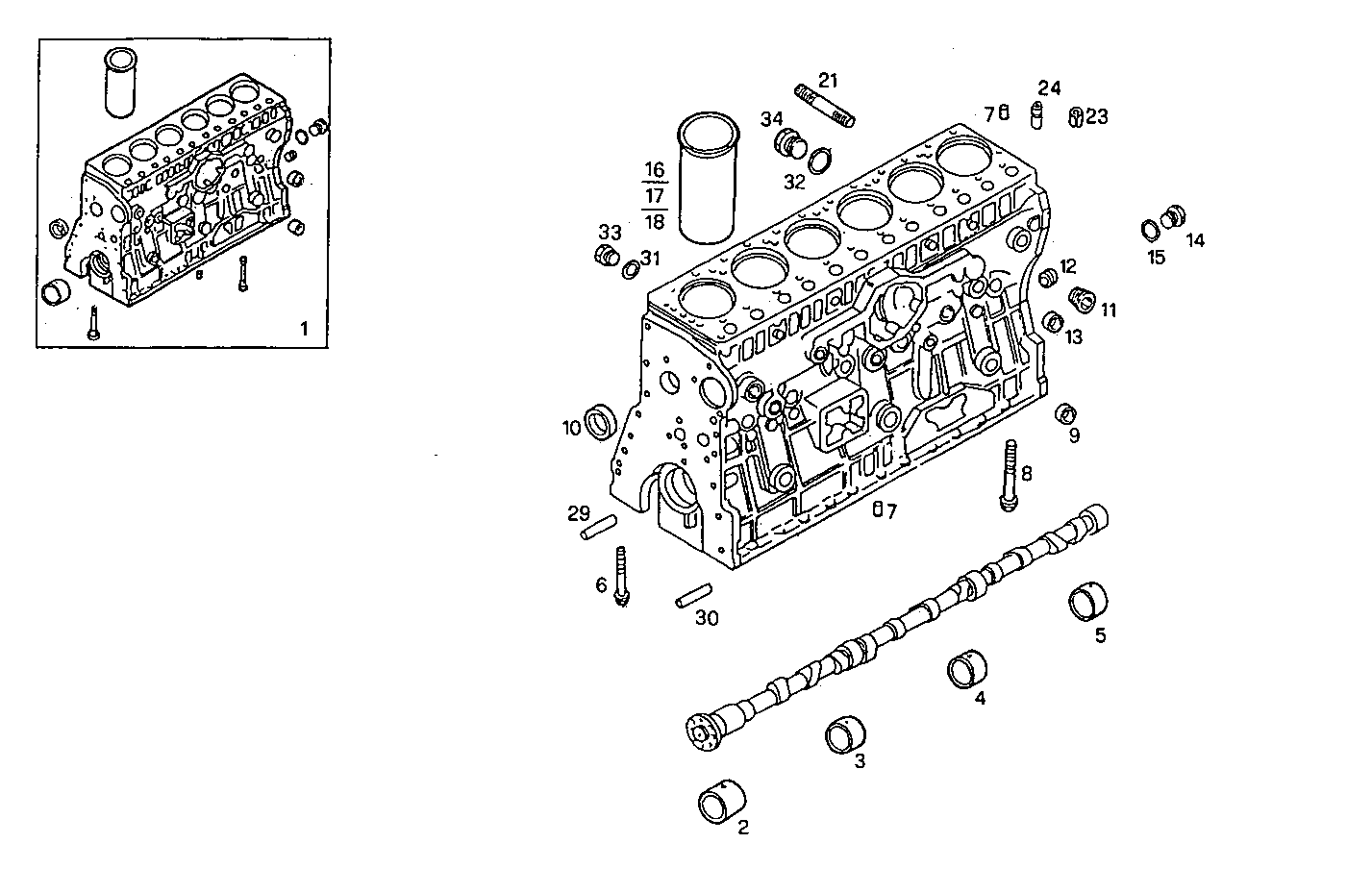

CRANKCASE
OIL SUMP

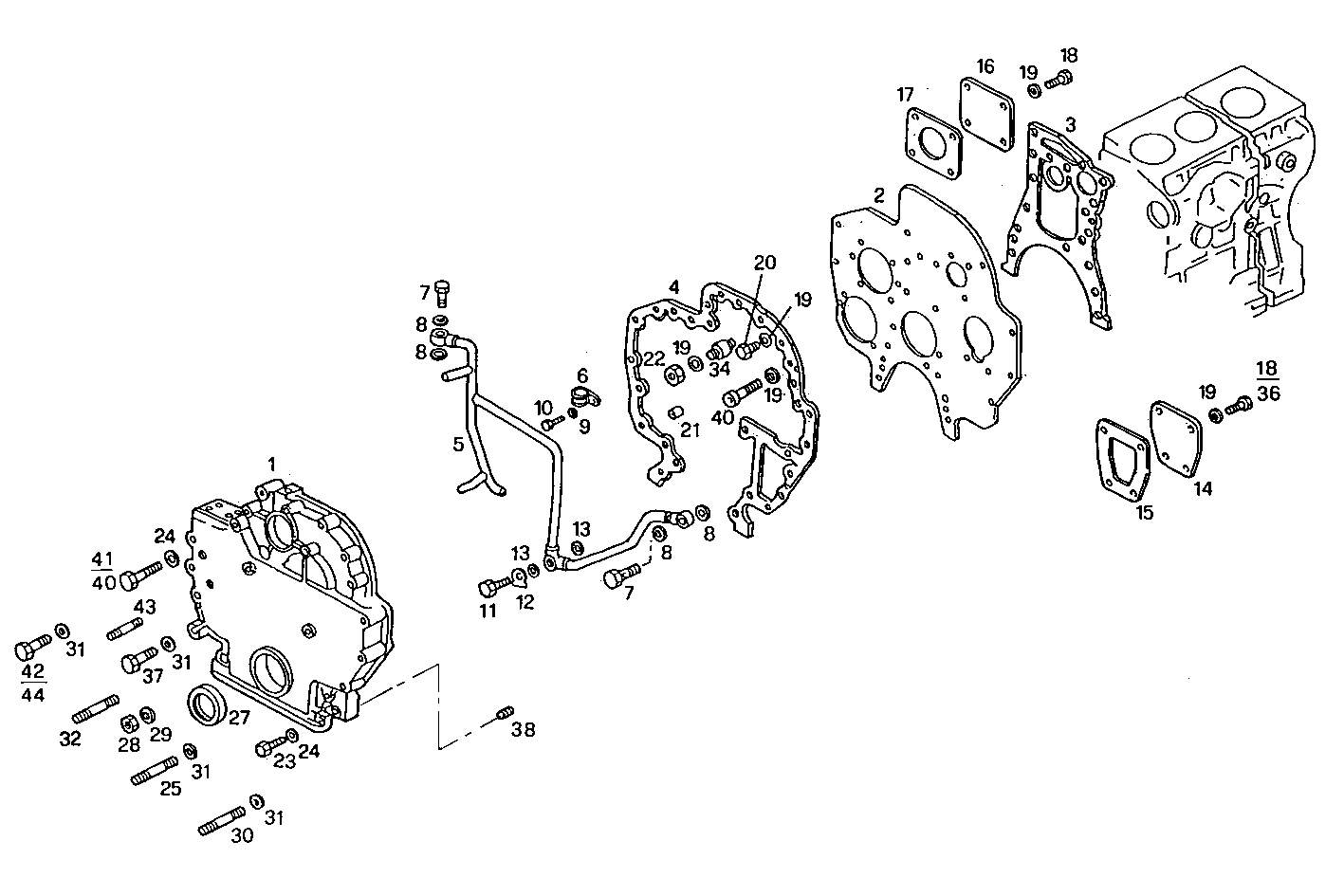

INSERTED BOX ASSEM.
INSERTED BOX ASSEM.

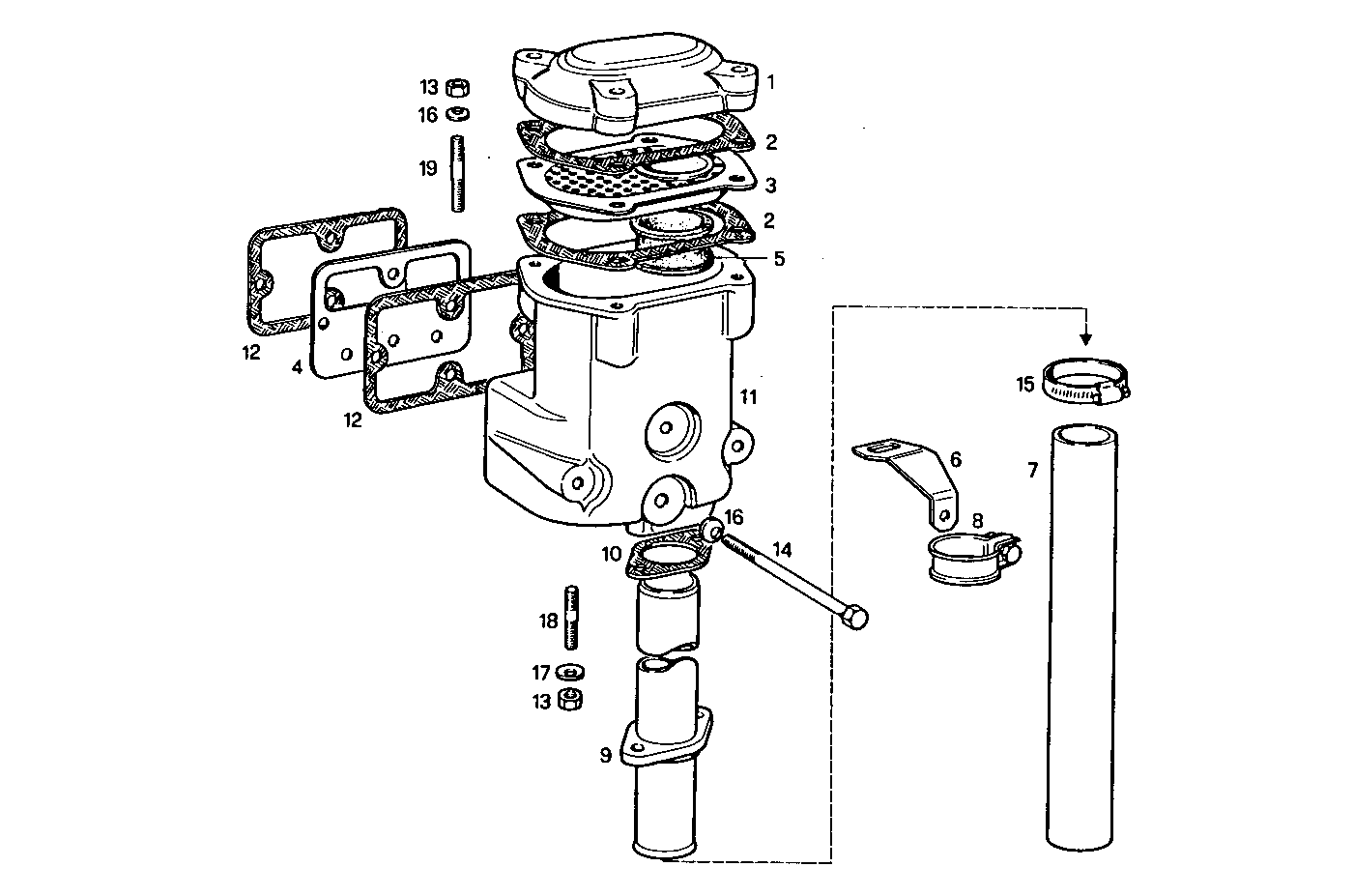

ENGINE BREATHERS
CYLINDER HEAD
CYLINDER HEAD
INTAKE MANIFOLD

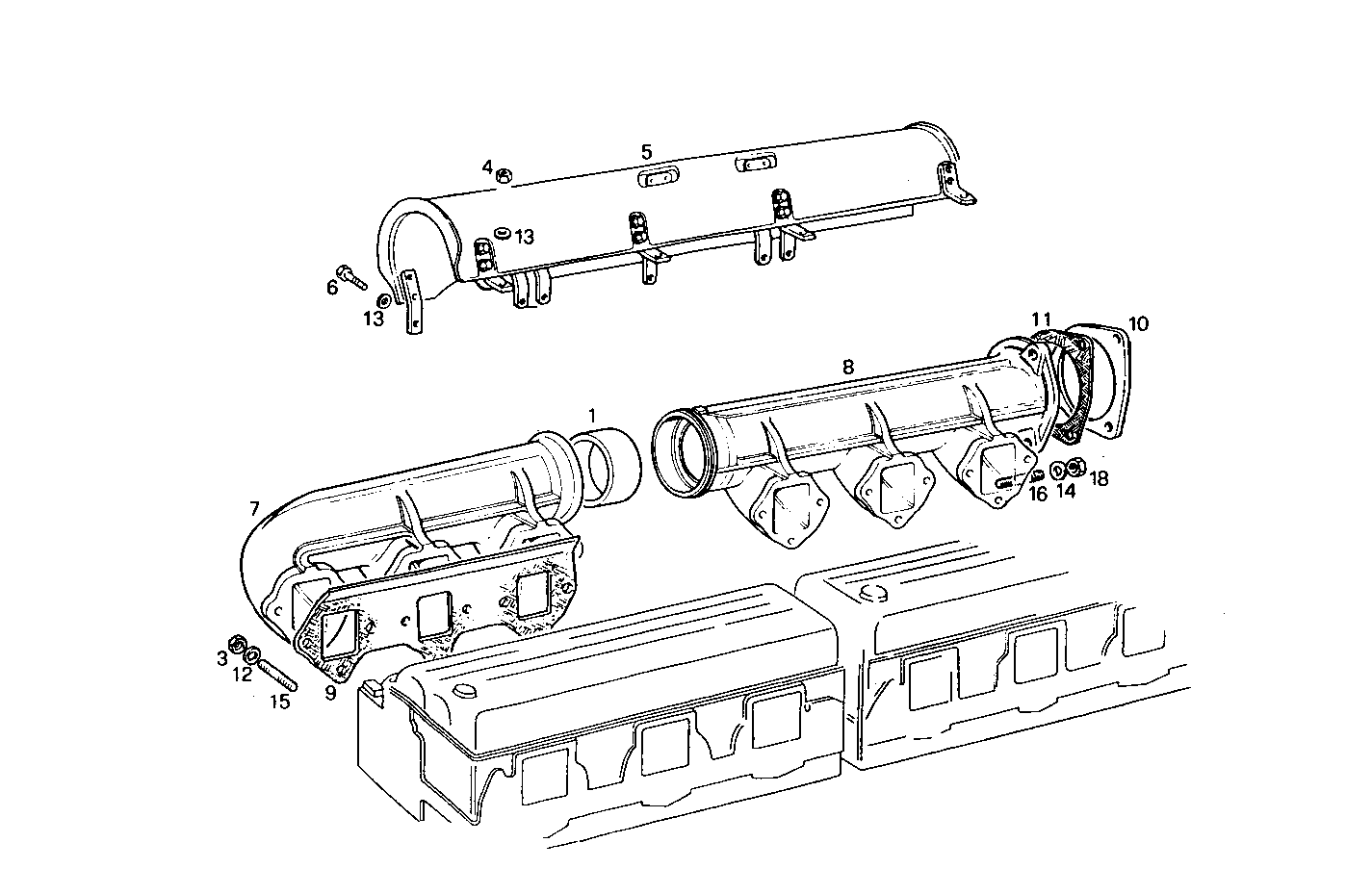

EXHAUST MANIFOLD
CRANK SHAFT - CONNECTING RODS

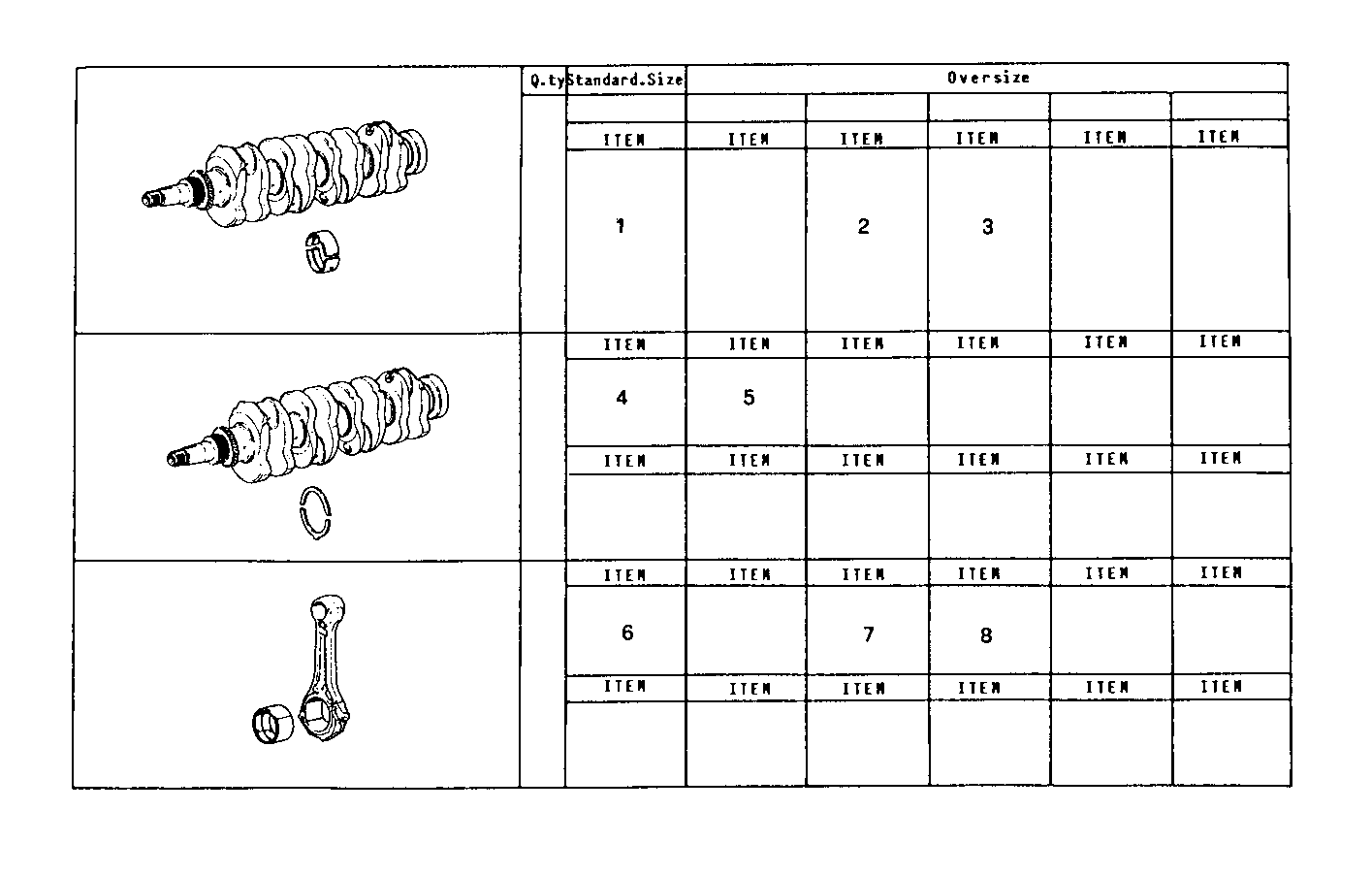

THRUST RING SET - MAIN AND ROD BEARINGS
PISTON ASSY - PISTON RINGS - PISTON PIN

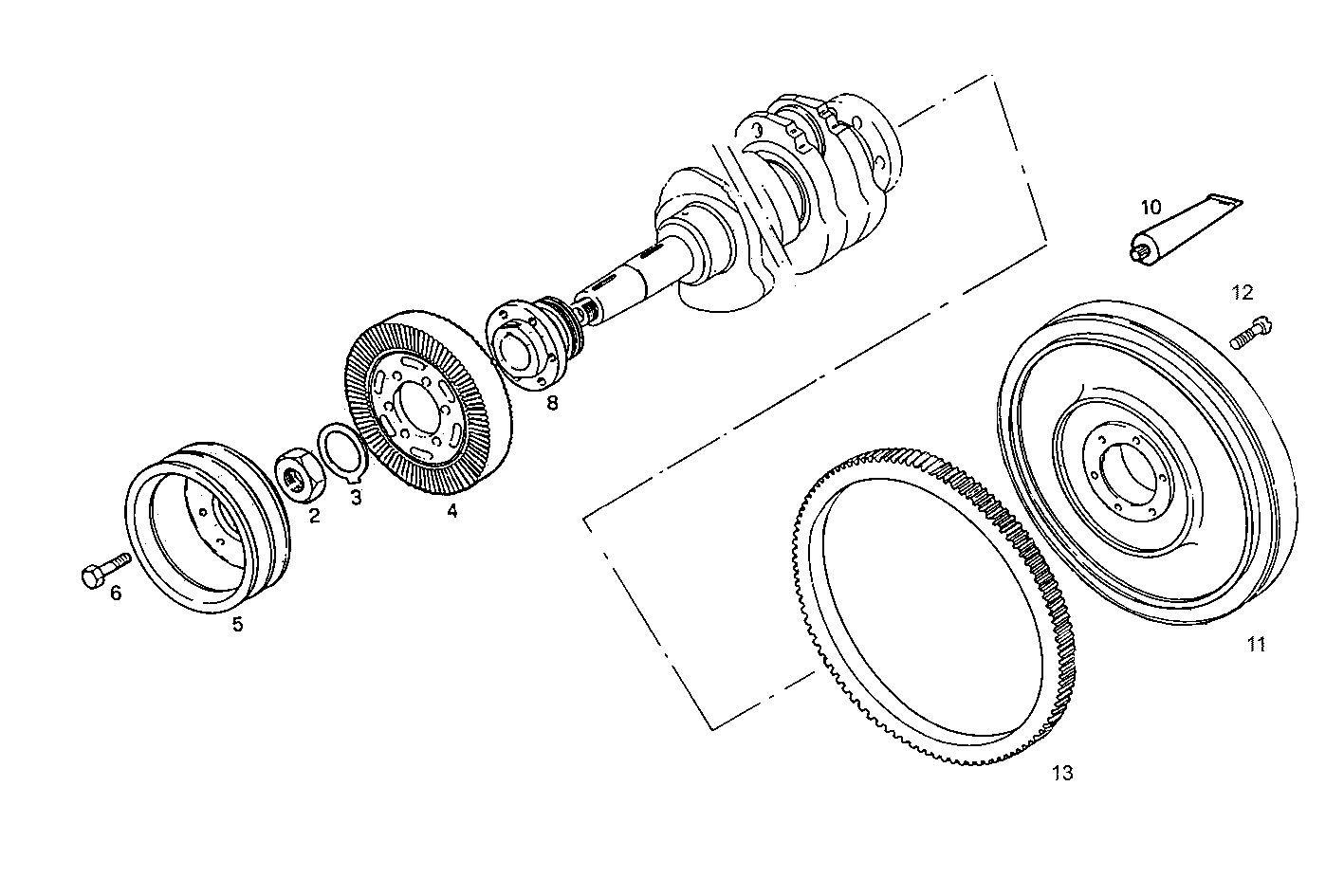

ENGINE FLYWHEEL - DAMPER
GEAR DRIVE

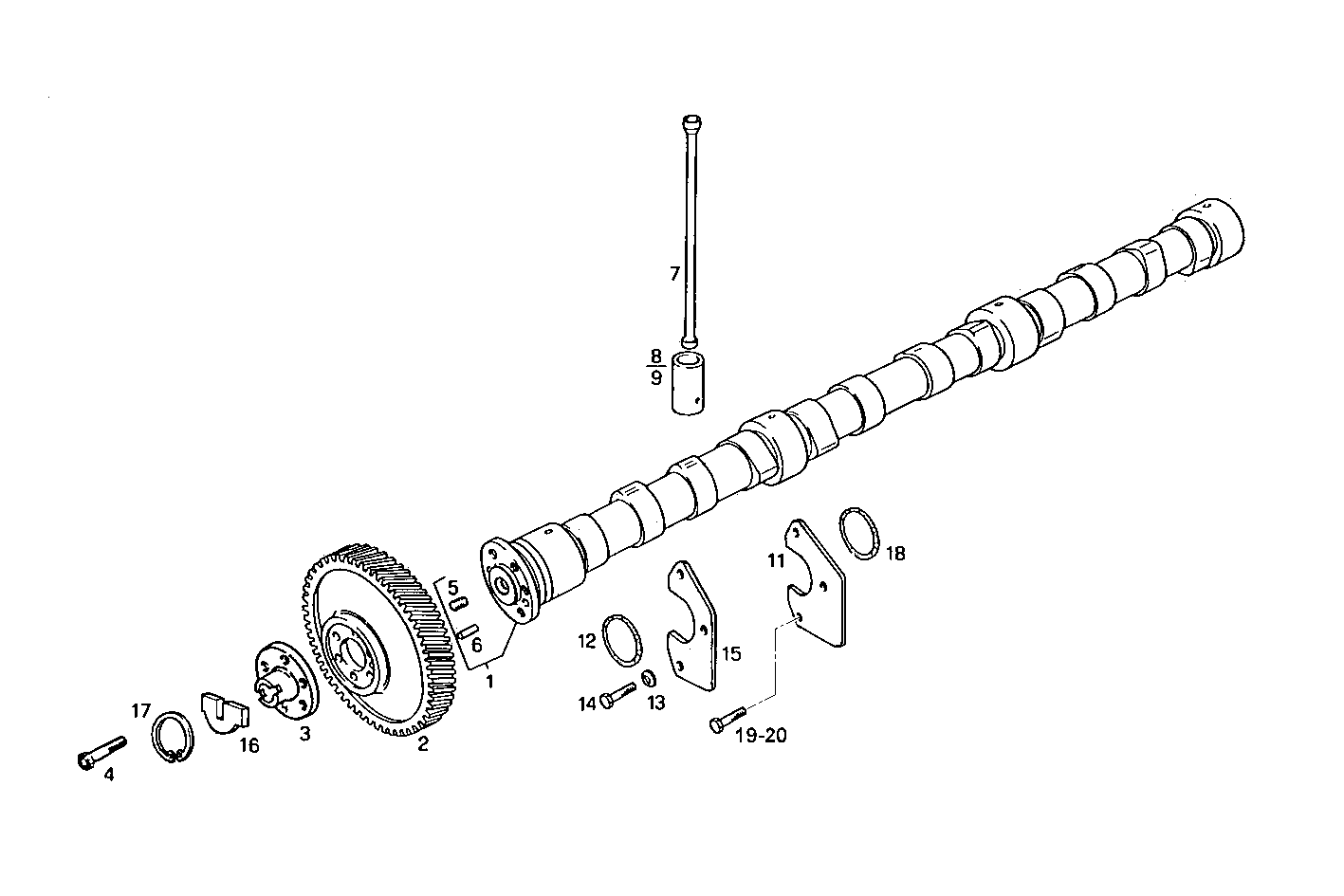

TIMING PARTS

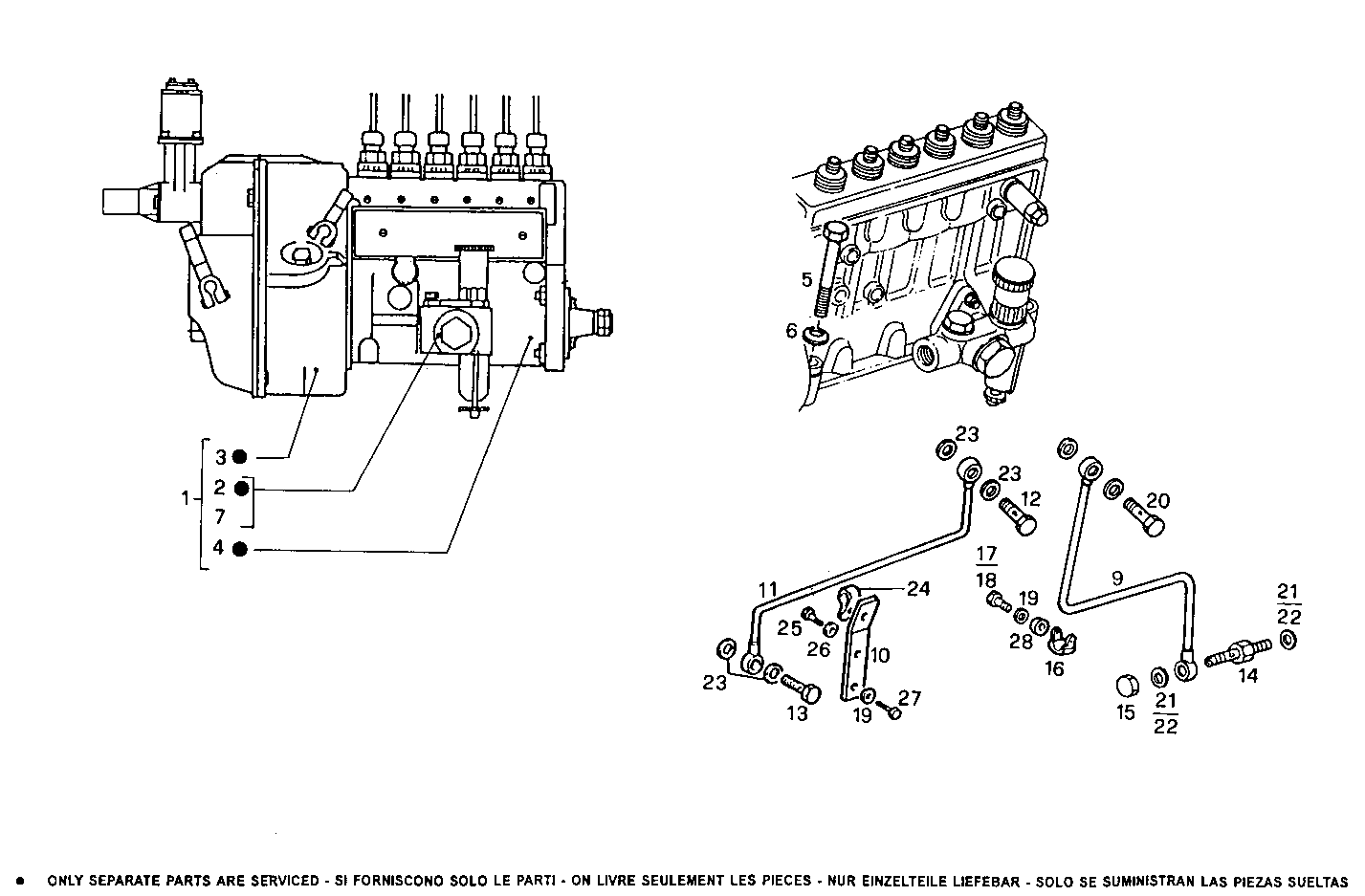

INJECTION PUMP ASSY
INJECTION PUMP DRIVE
