This catalog page lists every parts diagram we have indexed for the FPT F4AE0682C*C117 engine, classified under AUTOMOTIVE / Automotive. Each of the 61 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this F4AE0682C*C117 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the F4AE0682C*C117 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT F4AE0682C*C117?
There are 61 parts diagrams for the FPT F4AE0682C*C117 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the F4AE0682C*C117?
No. You can start from the F4AE0682C*C117 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT F4AE0682C*C117 used for?
The F4AE0682C*C117 is catalogued under AUTOMOTIVE / Automotive in our FPT parts database.

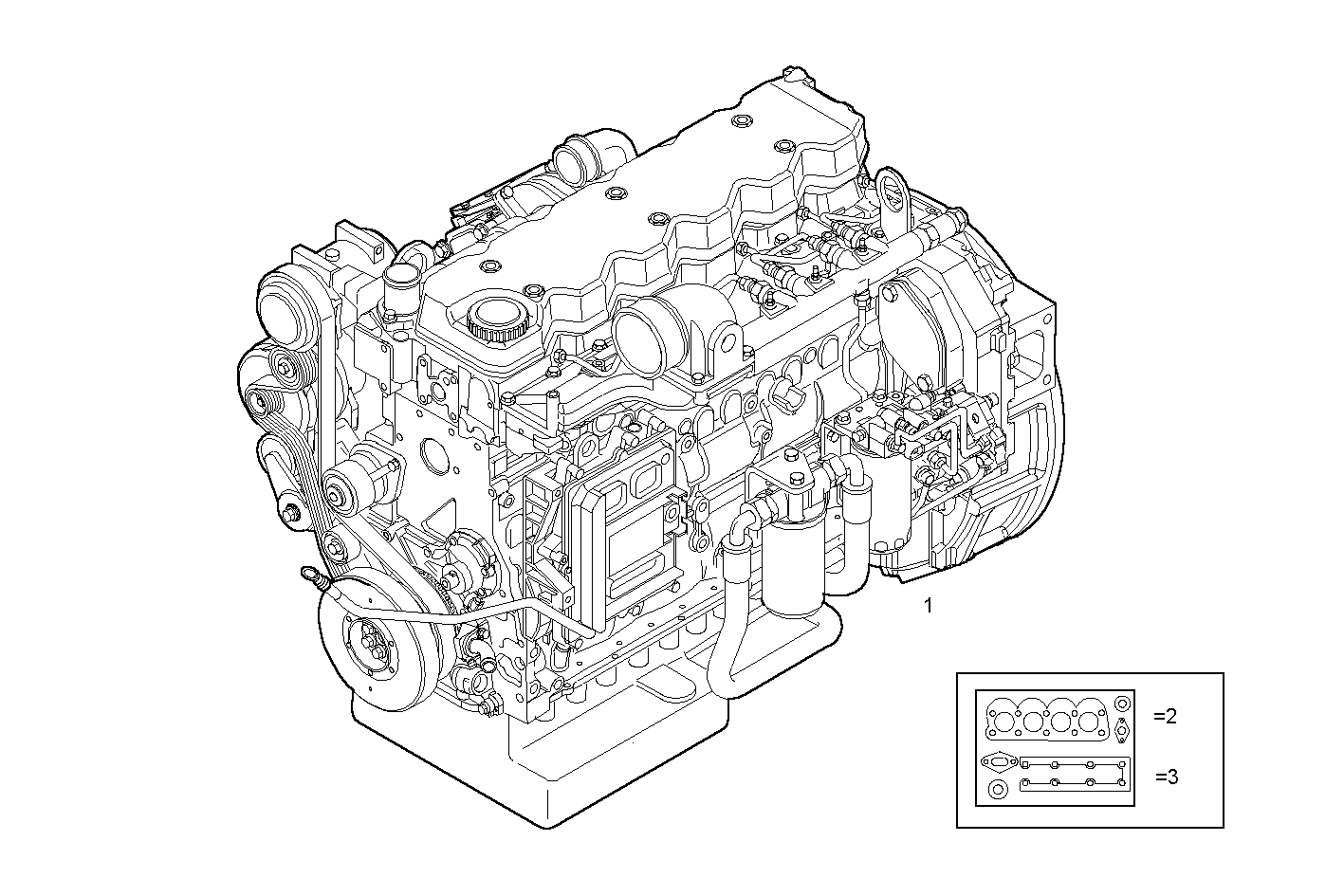

COMPLETE ENGINE
CRANKCASE
BEDPLATE

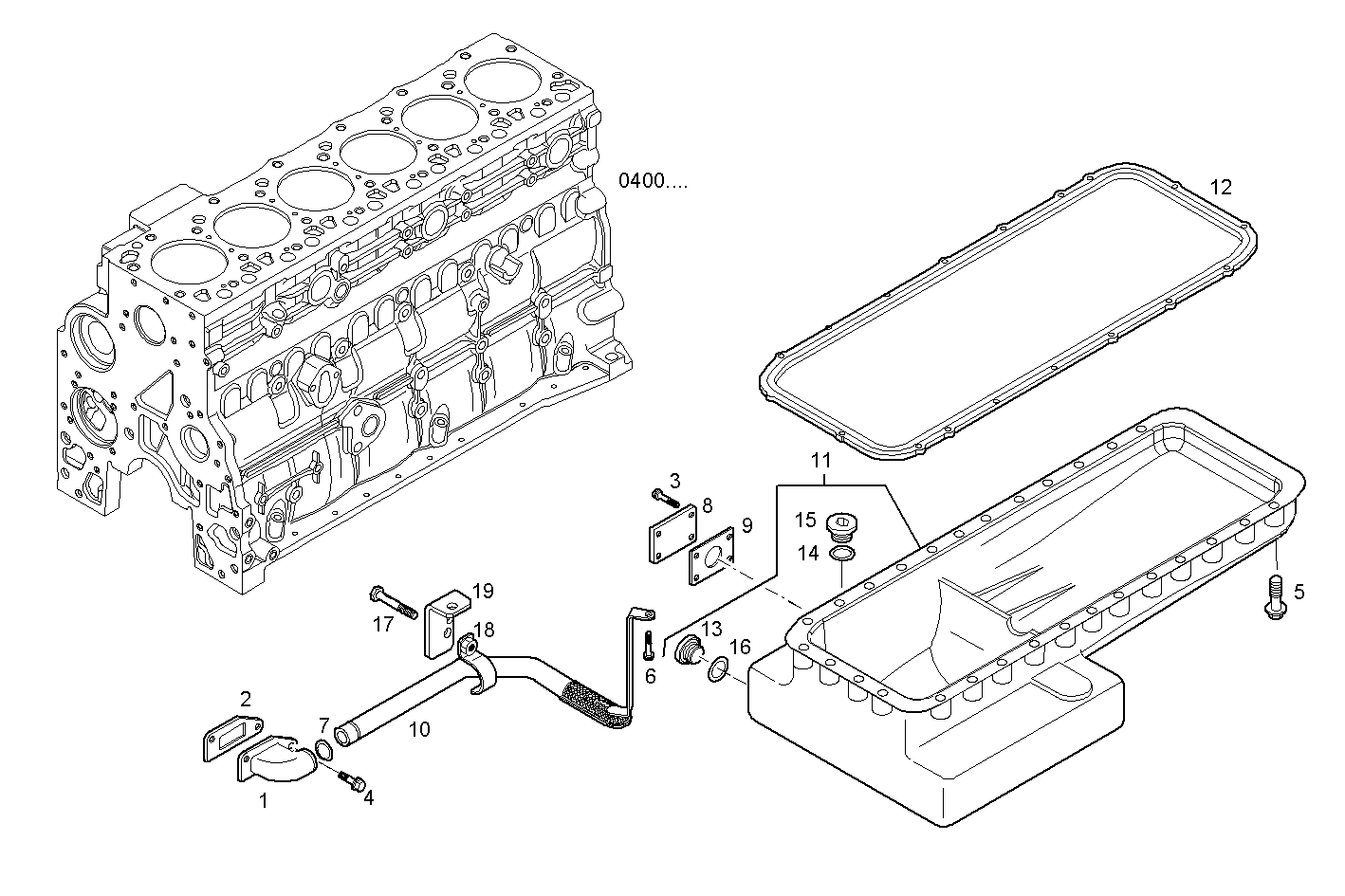

OIL SUMP
INSERTED BOX ASSEM.
FRONT C.CASE COVER
FLYWHEEL HOUSING
ENGINE BREATHERS
CYLINDER HEAD
CYL. HEAD COVERS
ROCKER SHAFT
INTAKE MANIFOLD
EXHAUST MANIFOLD
ENGINE BLOCK ASSY
CONNECTING ROD
PISTON ASSY - PISTON RINGS - PISTON PIN
ENGINE FLYWHEEL - DAMPER
TIMING PARTS
INJECTION
