This catalog page lists every parts diagram we have indexed for the FPT F4AE0684B*D103 engine, classified under AGRICULTURE / Agricultural. Each of the 55 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this F4AE0684B*D103 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the F4AE0684B*D103 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT F4AE0684B*D103?
There are 55 parts diagrams for the FPT F4AE0684B*D103 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the F4AE0684B*D103?
No. You can start from the F4AE0684B*D103 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT F4AE0684B*D103 used for?
The F4AE0684B*D103 is catalogued under AGRICULTURE / Agricultural in our FPT parts database.

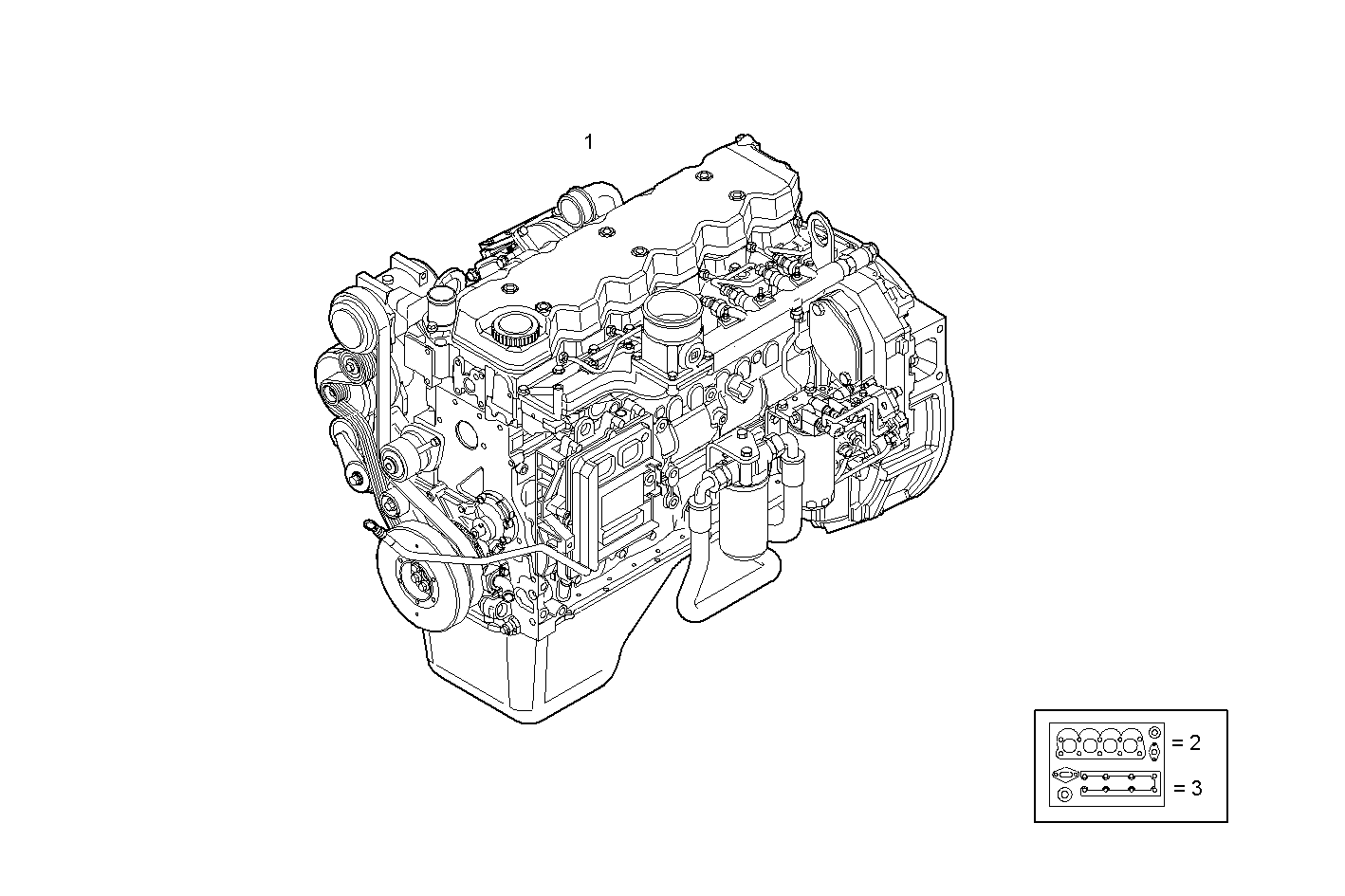

COMPLETE ENGINE
CRANKCASE
BEDPLATE
OIL SUMP
FRONT C.CASE COVER
REAR C.CASE COVER
FLYWHEEL HOUSING
ENGINE BREATHERS
CYLINDER HEAD
CYL. HEAD COVERS
ROCKER SHAFT
INTAKE MANIFOLD
ENGINE AIR INTAKE

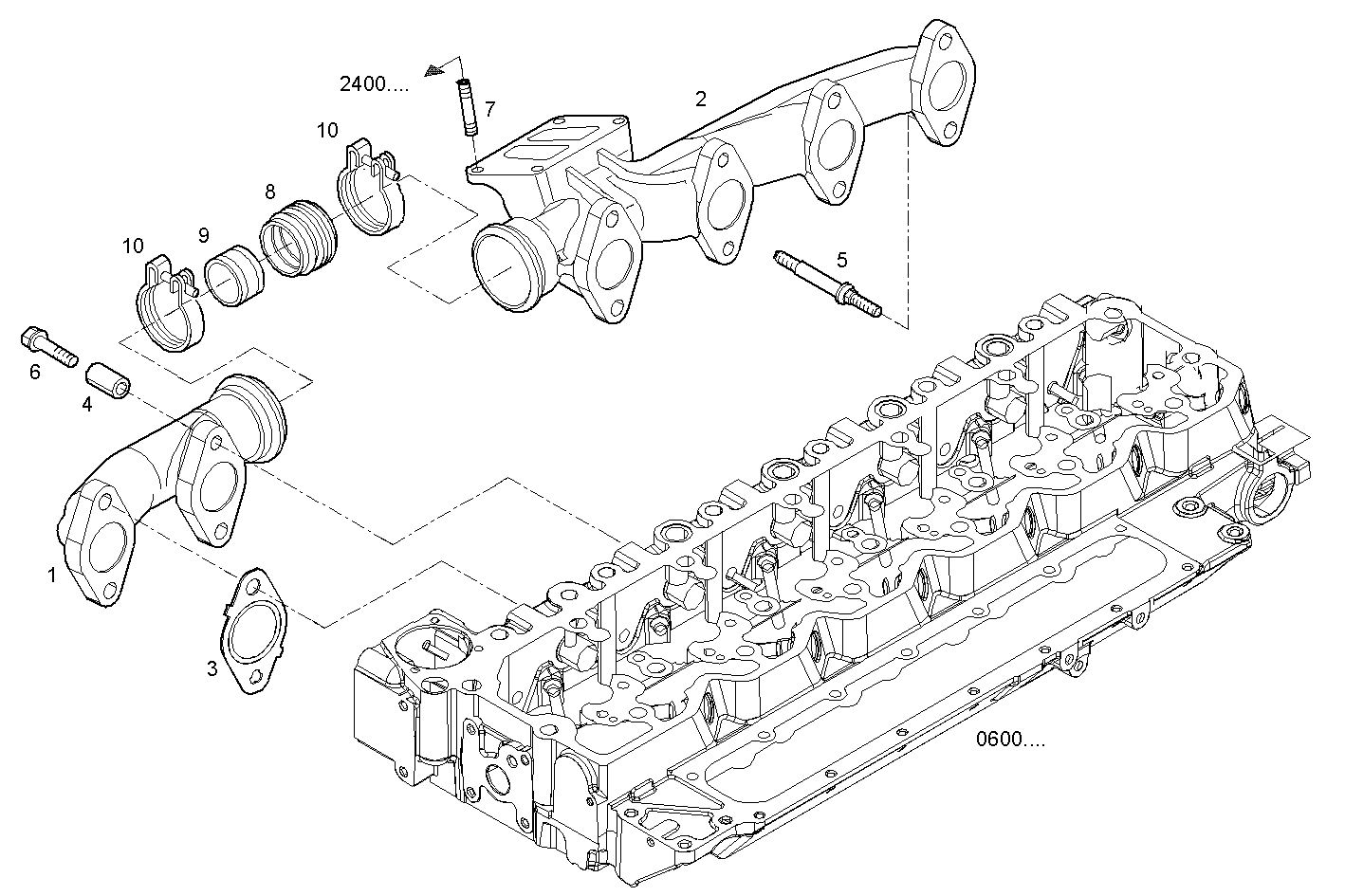

EXHAUST MANIFOLD
ENGINE BLOCK ASSY
CONNECTING ROD
PISTON ASSY - PISTON RINGS - PISTON PIN
ENGINE FLYWHEEL
VIBRATION DAMPER
