This catalog page lists every parts diagram we have indexed for the FPT F4GE9484D*J602 engine, classified under INDUSTRIAL / Industrial. Each of the 56 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this F4GE9484D*J602 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the F4GE9484D*J602 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT F4GE9484D*J602?
There are 56 parts diagrams for the FPT F4GE9484D*J602 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the F4GE9484D*J602?
No. You can start from the F4GE9484D*J602 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT F4GE9484D*J602 used for?
The F4GE9484D*J602 is catalogued under INDUSTRIAL / Industrial in our FPT parts database.

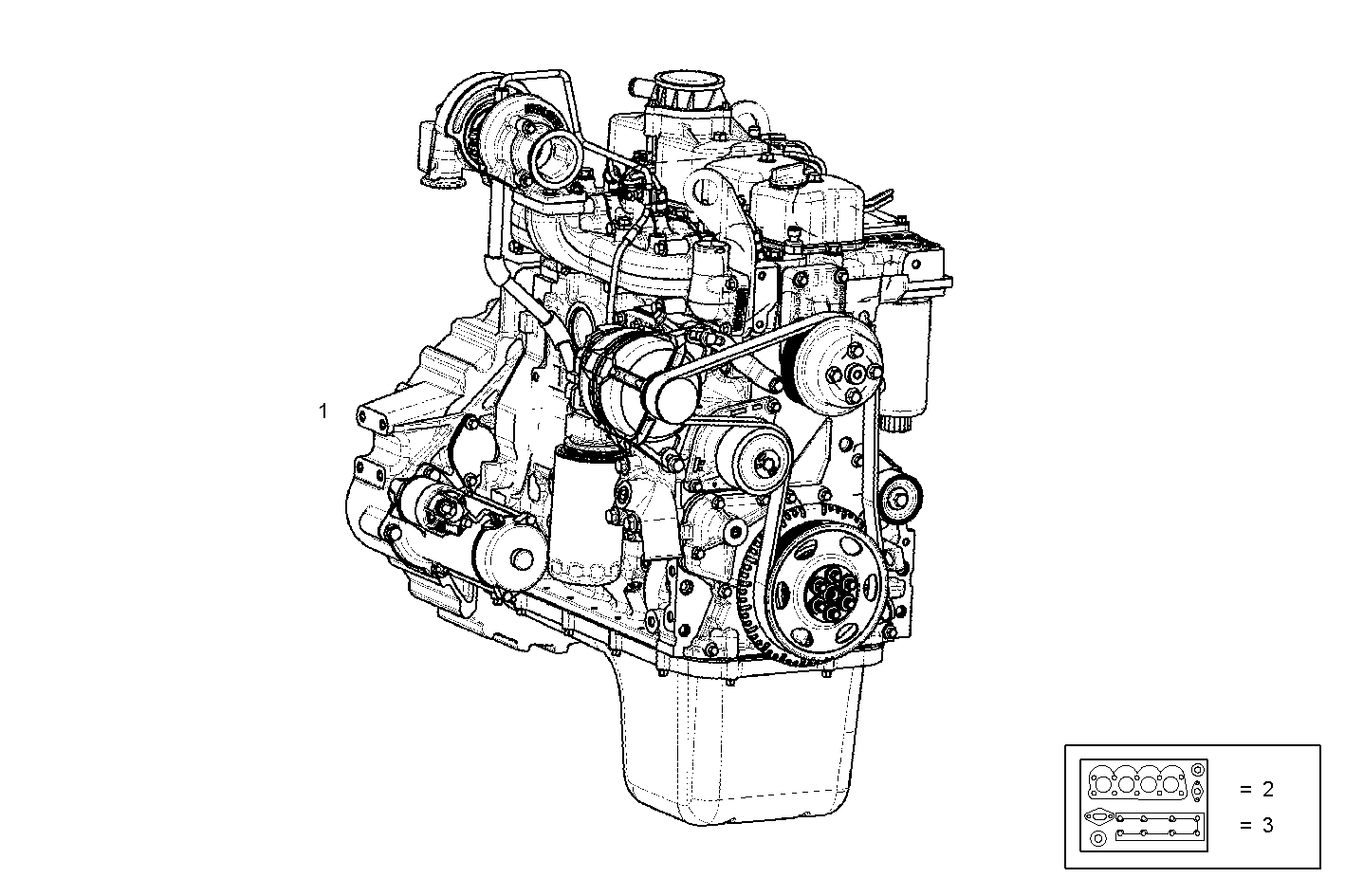

COMPLETE ENGINE
CRANKCASE
BEDPLATE
OIL SUMP
FRONT C.CASE COVER
REAR C.CASE COVER
FLYWHEEL HOUSING
ENGINE BREATHERS

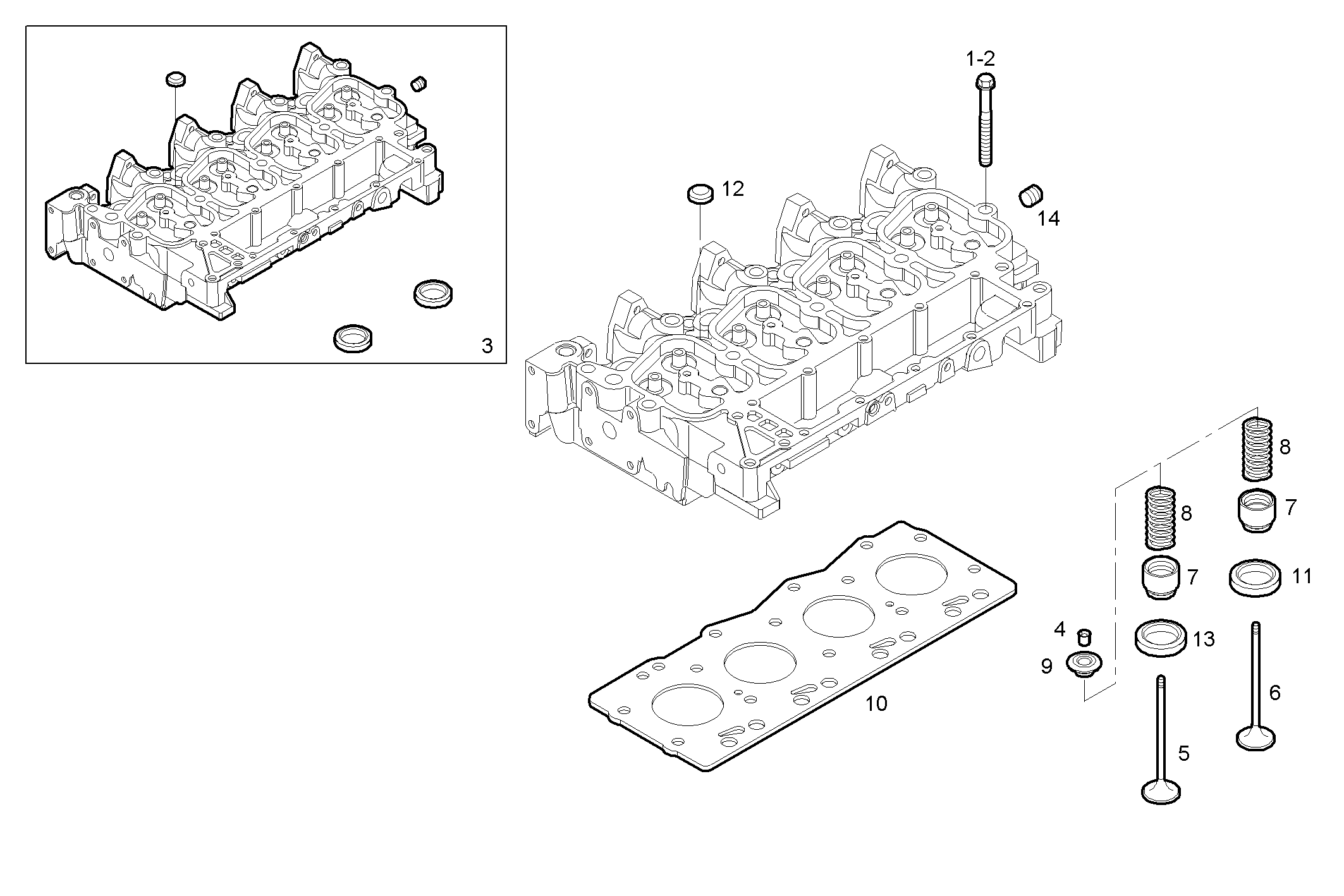

CYLINDER HEAD
CYL. HEAD COVERS
ROCKER SHAFT
INTAKE MANIFOLD

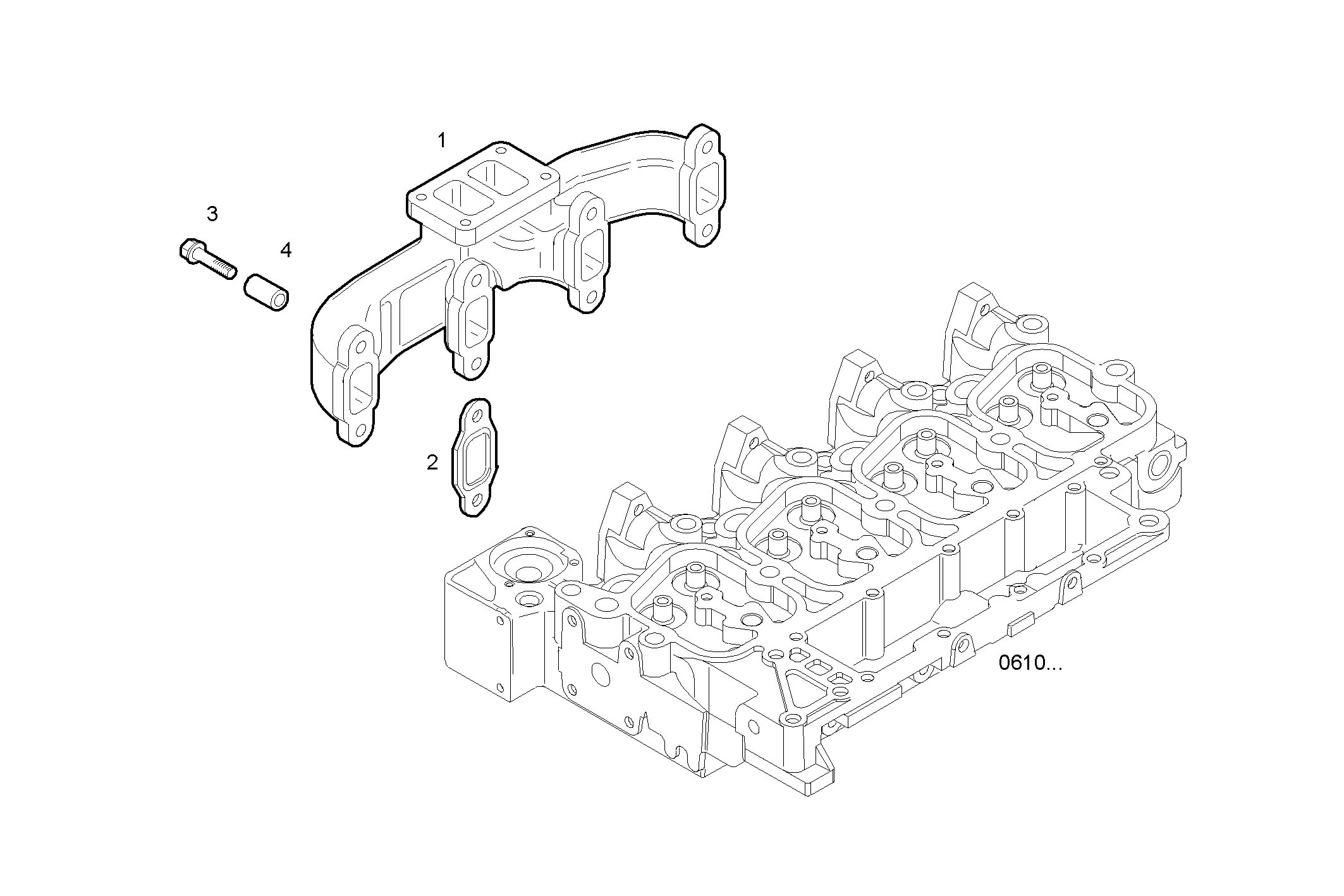

EXHAUST MANIFOLD
ENGINE BLOCK ASSY
CONNECTING ROD
PISTON ASSY - PISTON RINGS - PISTON PIN
ENGINE FLYWHEEL
VIBRATION DAMPER
TIMING PARTS
