This catalog page lists every parts diagram we have indexed for the FPT PUC13ENTD20.00A100 engine, classified under INDUSTRIAL / Power Units. Each of the 101 diagrams below contains an exploded view of an assembly group together with the OEM part numbers, callout references and original descriptions. Open any diagram to see the full parts list and add what you need to a quote request.
How to use this PUC13ENTD20.00A100 catalog
- Pick the diagram that matches the assembly you're working on.
- Locate the callout number on the PUC13ENTD20.00A100 drawing.
- Match it with the OEM part number in the parts list.
- Add the items to your quote request and submit.
FAQ
How many parts diagrams are available for the FPT PUC13ENTD20.00A100?
There are 101 parts diagrams for the FPT PUC13ENTD20.00A100 in this catalog. Each diagram lists callout numbers mapped to OEM part numbers.
Do I need a part number to request a quote for the PUC13ENTD20.00A100?
No. You can start from the PUC13ENTD20.00A100 diagrams and use the callout numbers to identify the component. We will confirm the OEM reference before quoting.
What application is the FPT PUC13ENTD20.00A100 used for?
The PUC13ENTD20.00A100 is catalogued under INDUSTRIAL / Power Units in our FPT parts database.
COMPLETE ENGINE
CRANKCASE
CYLINDER LINER
FIXING EQUIPMENT
OIL NOZZLE
OIL SUMP
REAR C.CASE COVER
GASKET REVOLVING SHAFT
FRONT ENGINE MOUNTING
REAR ENGINE MOUNTING
ENGINE BREATHERS
CYL.HEAD GASKET
CYLINDER HEAD
ASSEMBLY VALVE
CYL. HEAD COVERS
ROCKER SHAFT
INTAKE MANIFOLD

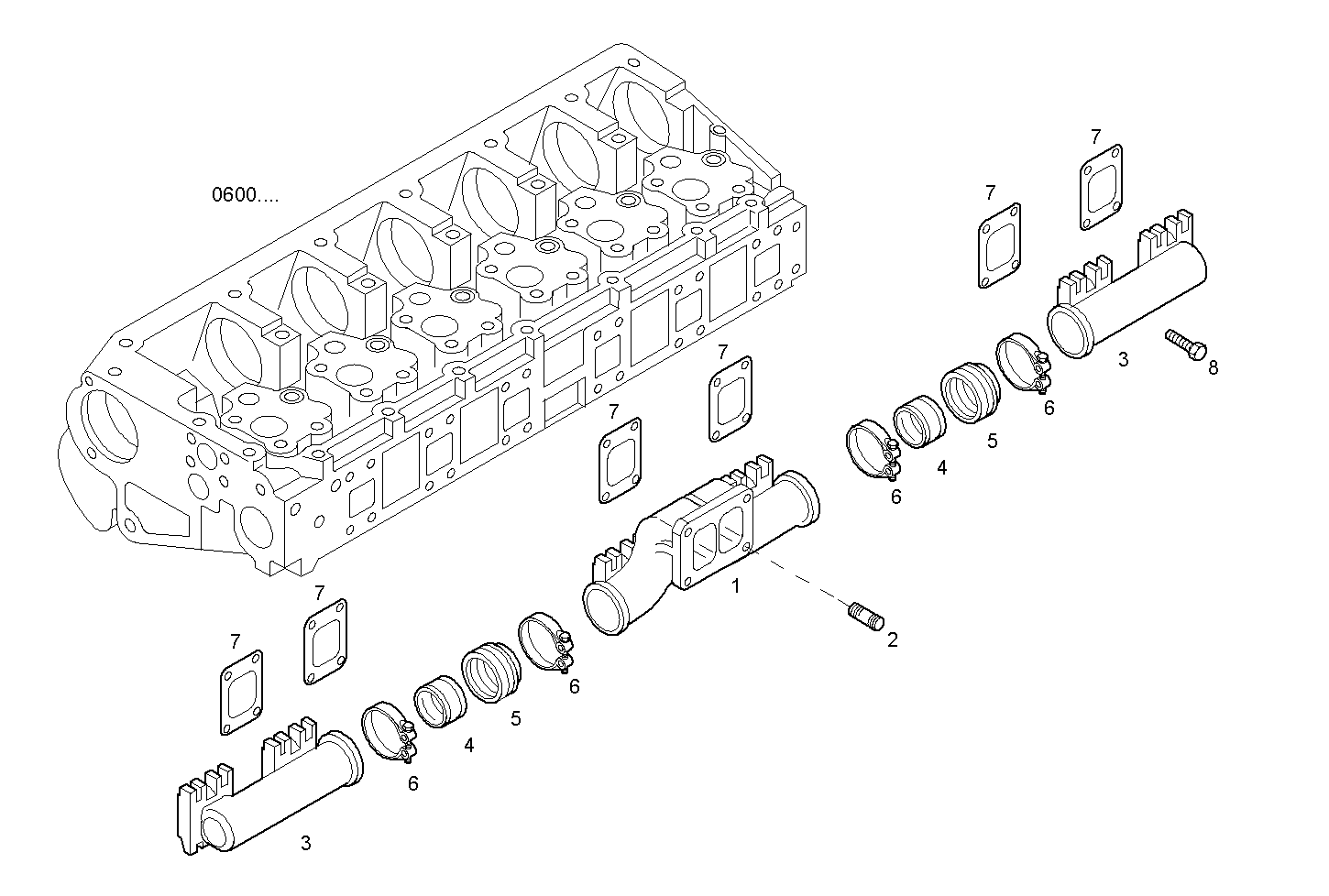

EXHAUST MANIFOLD
ENGINE BLOCK ASSY
