50-56KVA 50-60Hz
GE7450i15.05A905 — GE7450i15

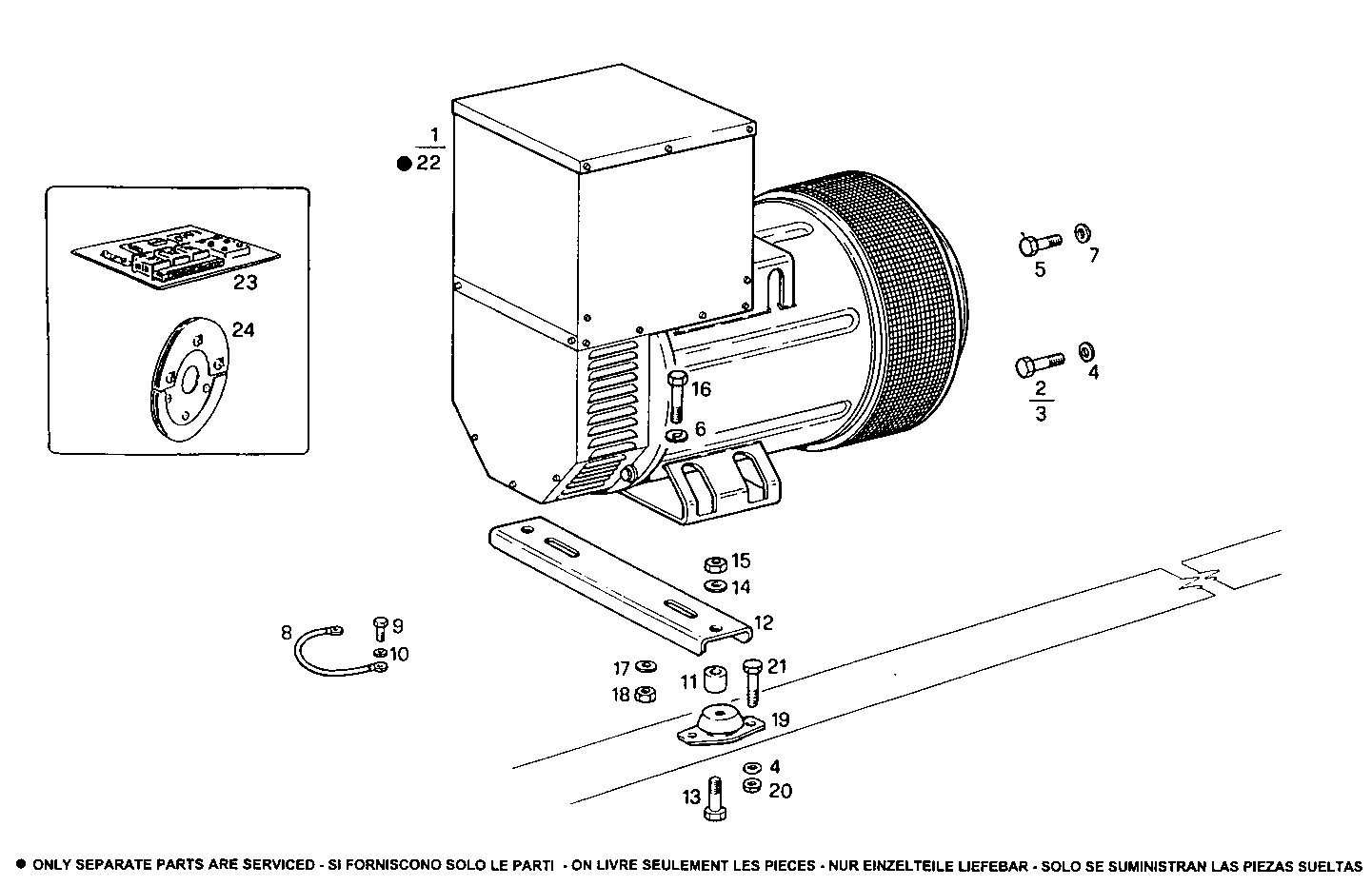

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015981 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 16 | |
| 5 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 4929369 | WASHER WASHER | 2 | |
| 7 | 17494934 | WASHER WASHER | 8 | |
| 8 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 9 | 16605424 | SCREW SCREW | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 8016064 | SPACING BAR SPACING BAR | 2 | |
| 12 | 8016047 | SUPPORT SUPPORT | 1 | |
| 13 | 16615024 | SCREW SCREW | 2 | |
| 14 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 17038921 | NUT NUT | 2 | |
| 16 | 16614924 | SCREW SCREW | 2 | |
| 17 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 18 | 17038921 | NUT NUT | 2 | |
| 19 | 8016784 | RUBBER PAD RUBBER PAD | 4 | |
| 20 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 21 | 16607624 | SCREW SCREW | 4 | |
| 22 | 8020911 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 23 | 8091776 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 24 | 8091775 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 |
