70-80KVA 50-60Hz
GE7450Si15.05A905 — GE7450Si15

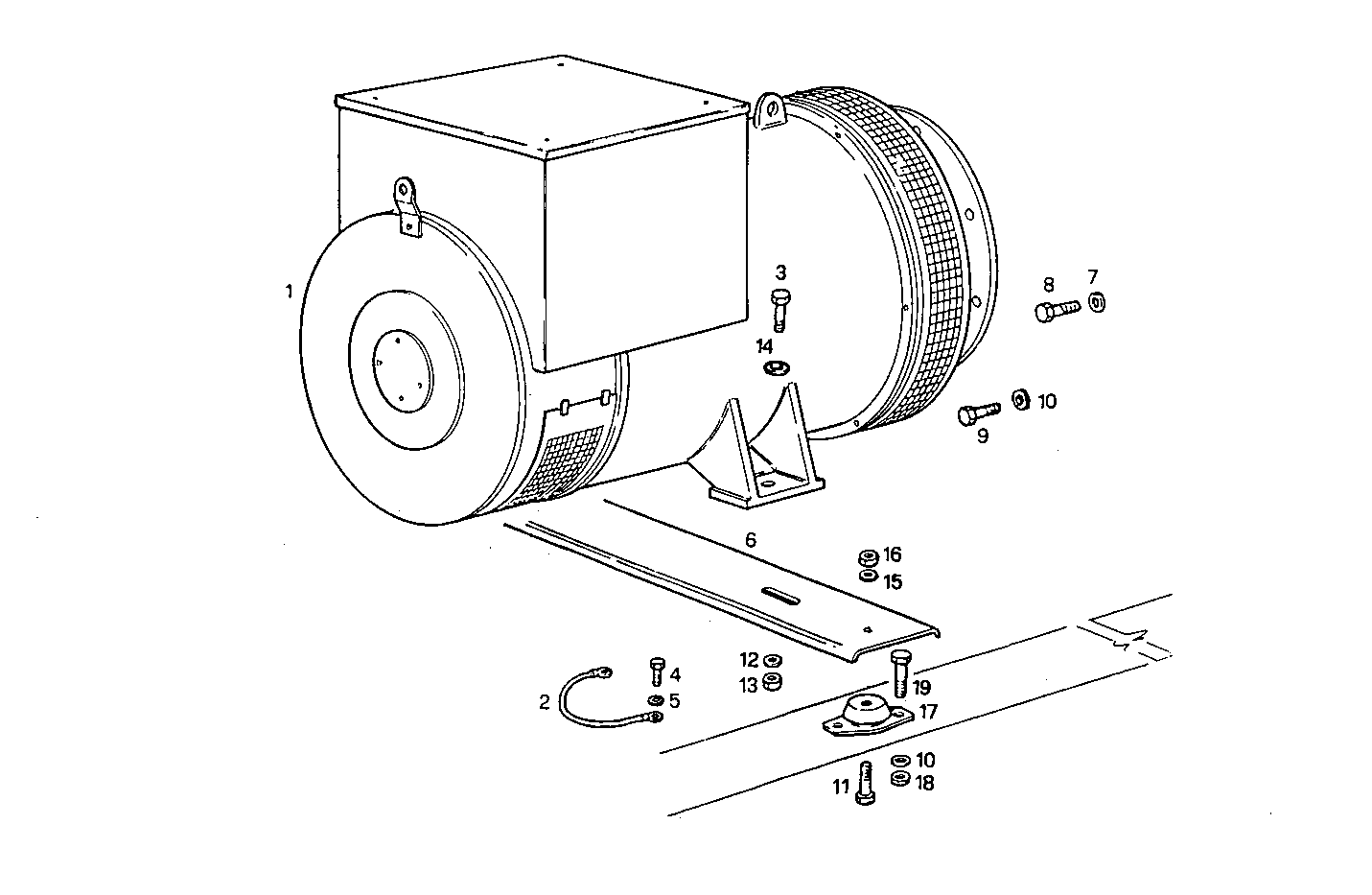

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017432 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 3 | 16614724 | SCREW SCREW | 1 | |
| 4 | 16043124 | SCREW SCREW | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 8016047 | SUPPORT SUPPORT | 1 | |
| 7 | 17494934 | WASHER WASHER | 8 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 9 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 16 | |
| 11 | 16614524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17093174 | WASHER WASHER | 2 | |
| 13 | 17038921 | NUT NUT | 2 | |
| 14 | 4929369 | WASHER WASHER | 2 | |
| 15 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 16 | 17039721 | HEXAGON NUT HEXAGON NUT | 2 | |
| 17 | 8016784 | RUBBER PAD RUBBER PAD | 4 | |
| 18 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 19 | 16607624 | SCREW SCREW | 4 |
