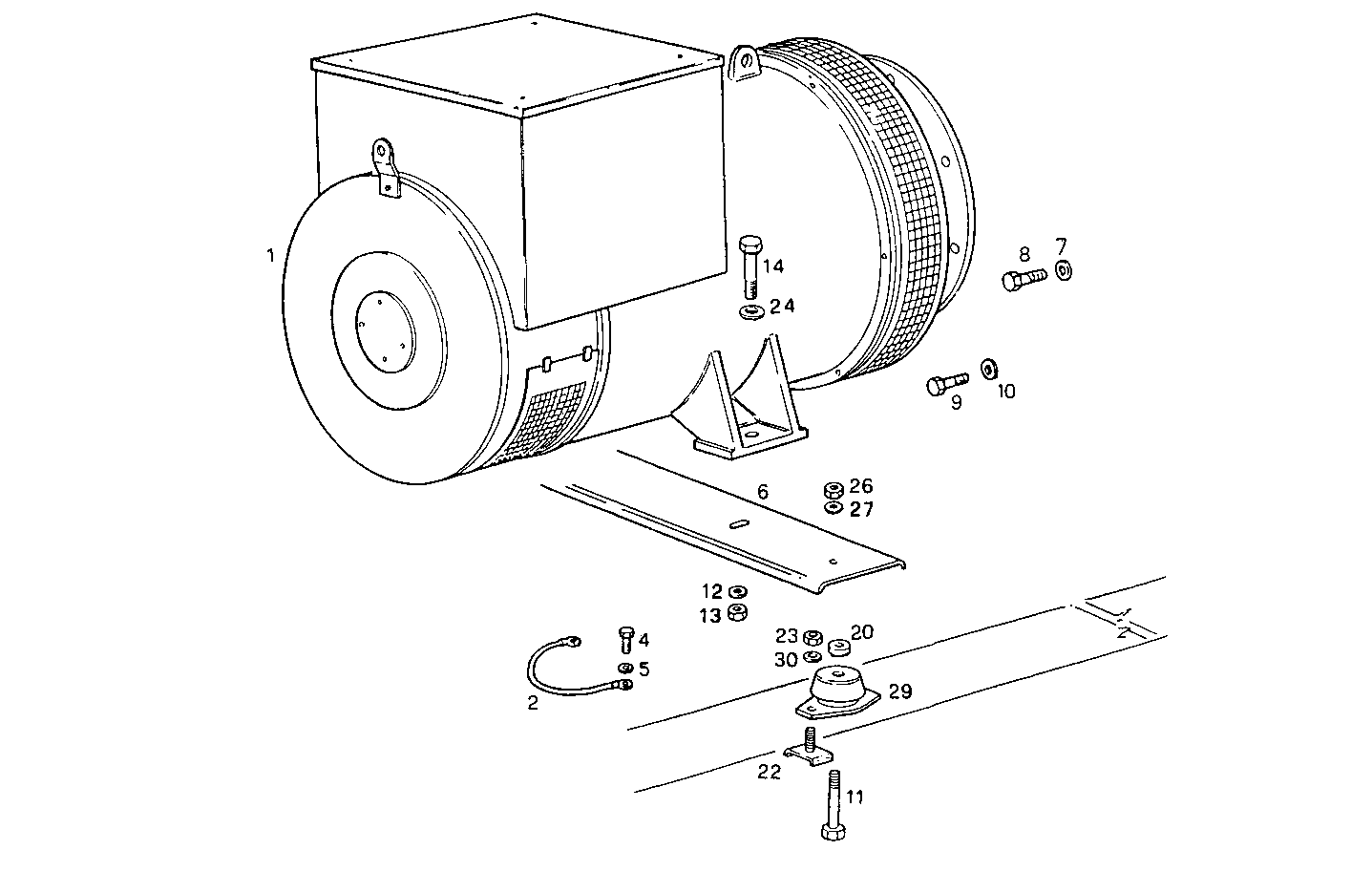

80-95KVA 50-60Hz
GE7450Si16.05A905 — GE7450Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8027684 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 4 | 16043124 | SCREW SCREW | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 8016047 | SUPPORT SUPPORT | 1 | |
| 7 | 17494934 | WASHER WASHER | 8 | |
| 8 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 9 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 11 | 16615024 | SCREW SCREW | 2 | |
| 12 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 17038921 | NUT NUT | 2 | |
| 14 | 16614924 | SCREW SCREW | 2 | |
| 20 | 8103400 | SPACING BAR SPACING BAR | 2 | |
| 22 | 8016024 | SCREW SCREW | 4 | |
| 23 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 24 | 4929369 | WASHER WASHER | 1 | |
| 26 | 17038921 | NUT NUT | 2 | |
| 27 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 29 | 4911960 | RUBBER PAD RUBBER PAD | 2 | |
| 30 | 17090974 | SPRING WASHER SPRING WASHER | 4 |
