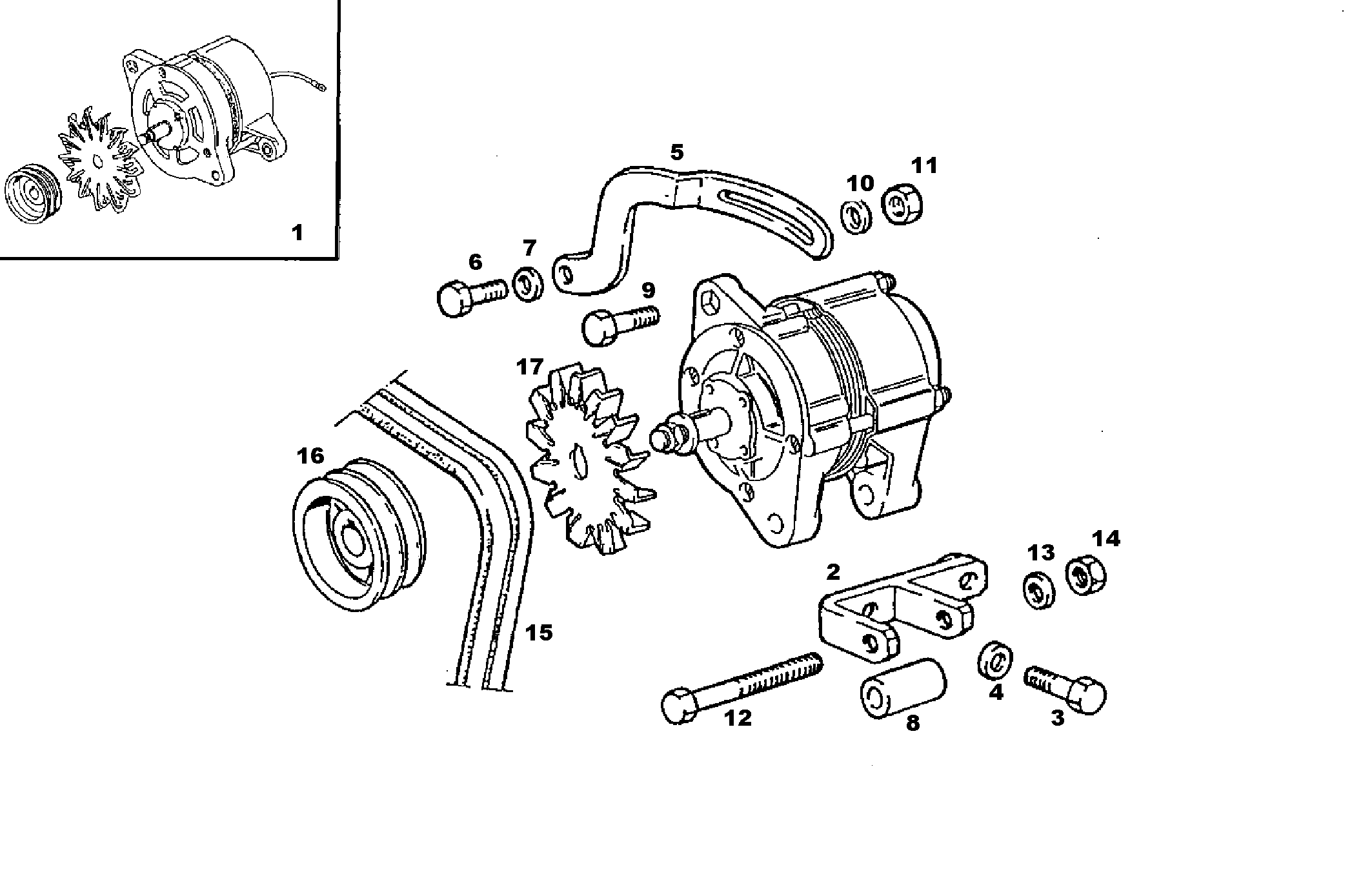

SELF-REGULATED ALTERNATOR
GE7675G86.05A71E — GE7675G86
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014071 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 8015283 | SUPPORT SUPPORT | 1 | |
| 3 | 8014502 | SCREW SCREW | 2 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 8016579 | BELT TENSIONER BELT TENSIONER | 1 | |
| 6 | 8014381 | SCREW SCREW | 1 | |
| 7 | 17091074 | WASHER WASHER | 1 | |
| 8 | 8015304 | SPACING BAR SPACING BAR | 1 | |
| 9 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 17152921 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 16611324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17091074 | WASHER WASHER | 1 | |
| 14 | 17038521 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 4631961 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 16 | 8014706 | PULLEY PULLEY | 1 | |
| 17 | 4717026 | GENERATOR FAN GENERATOR FAN | 1 |
