105-118KVA 220V 50-60Hz
GE7675Si15.05A905 — GE7675Si15

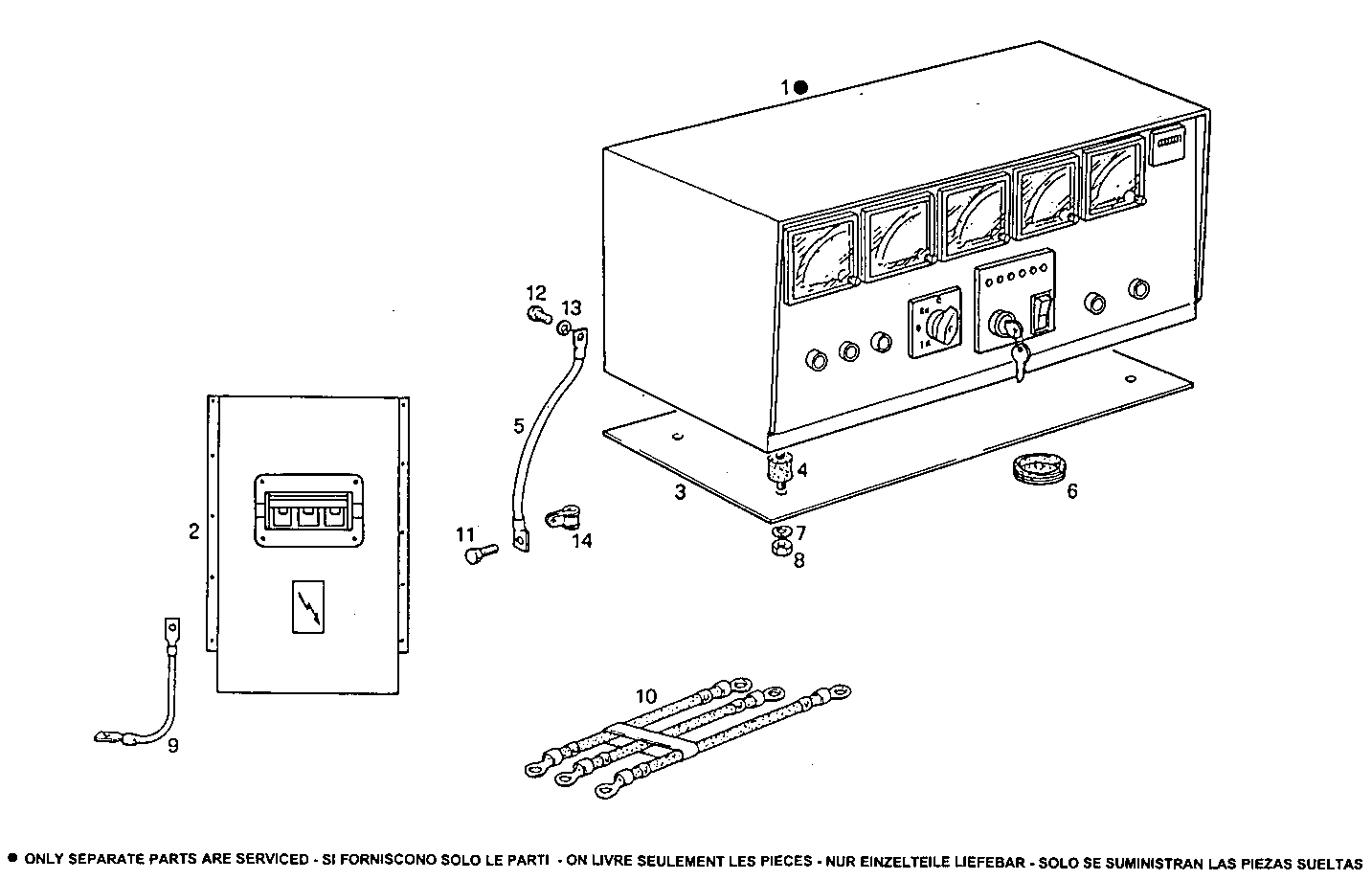

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018931 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8015859 | SWITCH SWITCH | 1 | |
| 3 | 8019189 | COVER COVER | 1 | |
| 4 | 8104155 | DOWEL DOWEL | 4 | |
| 5 | 8006993 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 7 | 17088474 | WASHER WASHER | 8 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 9 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 10 | 8006430 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 11 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17314990 | FASTENING BRACKET FASTENING BRACKET | 2 |
