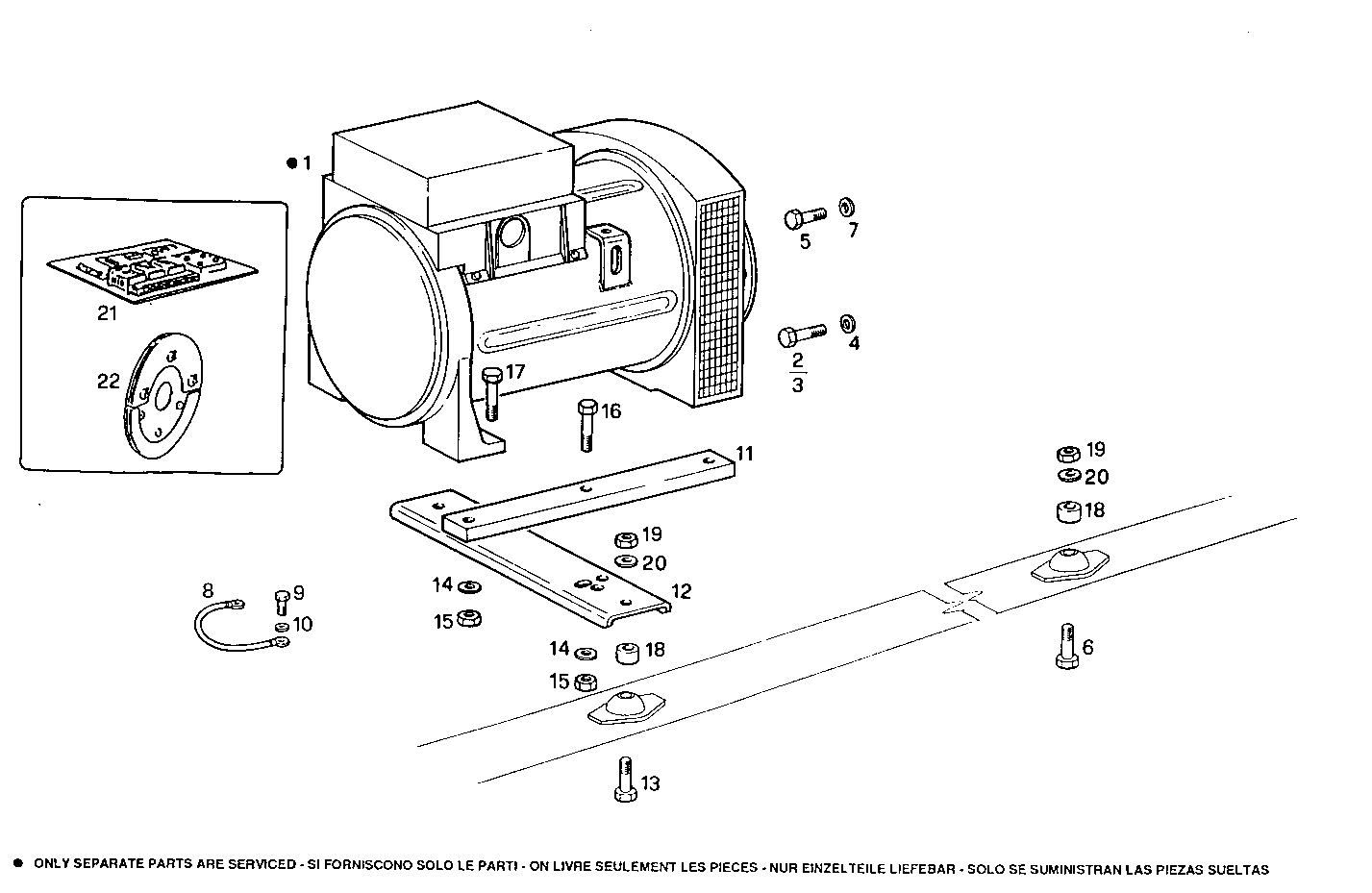

20-24KVA 50-60HZ
GE8031i05.05A900 — GE8031i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014997 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 11306921 | SCREW SCREW | 2 | |
| 3 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 15542121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17494934 | WASHER WASHER | 8 | |
| 8 | 8006999 | EARTH WIRE EARTH WIRE | 1 | |
| 9 | 16605424 | SCREW SCREW | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 8015392 | SUPPORT SUPPORT | 2 | |
| 12 | 8109131 | SUPPORT SUPPORT | 1 | |
| 13 | 15541621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17092174 | SPRING WASHER SPRING WASHER | 6 | |
| 15 | 17038921 | NUT NUT | 6 | |
| 16 | 16614824 | SCREW SCREW | 2 | |
| 17 | 16615024 | SCREW SCREW | 4 | |
| 18 | 8109422 | SPACING BAR SPACING BAR | 4 | |
| 19 | 17038621 | NUT NUT | 4 | |
| 20 | 17091374 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 8091775 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 22 | 8091776 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 |
