30-35KVA 50-60HZ
GE8031i05.05A901 — GE8031i05

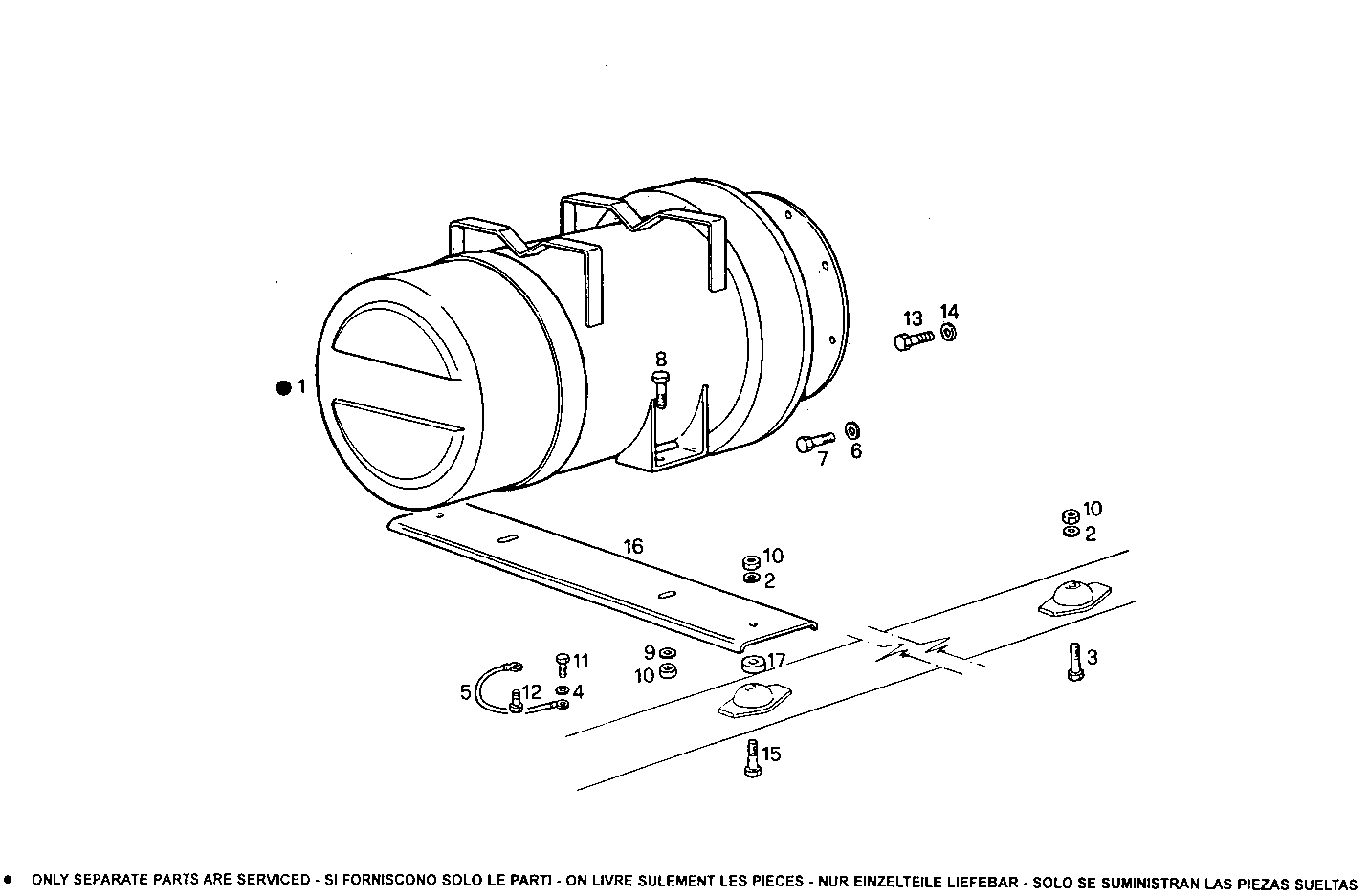

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112274 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 11198779 | SPRING WASHER SPRING WASHER | 4 | |
| 3 | 15540621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 11193879 | SPRING WASHER SPRING WASHER | 1 | |
| 5 | 8104358 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 12 | |
| 7 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 8 | 15541821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 11190779 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 16101511 | HEXAGON NUT HEXAGON NUT | 6 | |
| 11 | 16043124 | SCREW SCREW | 1 | |
| 12 | 10902421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 14 | 10516879 | WASHER WASHER | 8 | |
| 15 | 15541721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 8109281 | SUPPORT SUPPORT | 1 | |
| 17 | 8109422 | SPACING BAR SPACING BAR | 2 |
