30KVA 380V 50Hz
GE8031i05.05A905 — GE8031i05

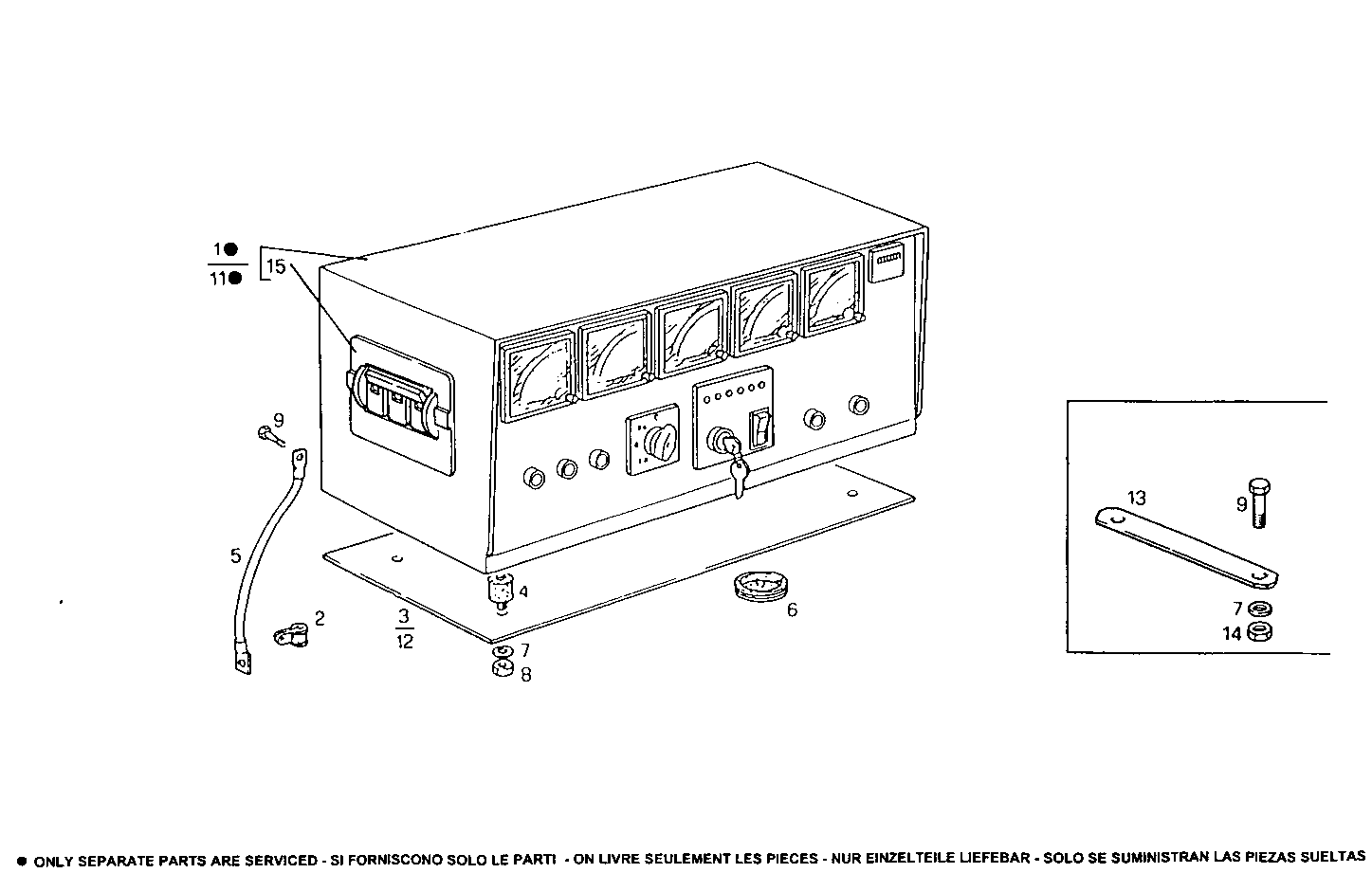

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018833 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 17314990 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 3 | 8019126 | COVER COVER | 1 | |
| 4 | 8018462 | RUBBER PAD RUBBER PAD | 4 | |
| 5 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 7 | 17088474 | WASHER WASHER | 12 | |
| 8 | 17037721 | NUT NUT | 8 | |
| 9 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 11 | 8009003 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 12 | 8016754 | COVER COVER | 1 | |
| 13 | 8015022 | SUPPORT SUPPORT | 1 | |
| 14 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 15 | 8110800 | SWITCH SWITCH | 1 |
