30-35KVA 50-60Hz
GE8031i06.05A905 — GE8031i06

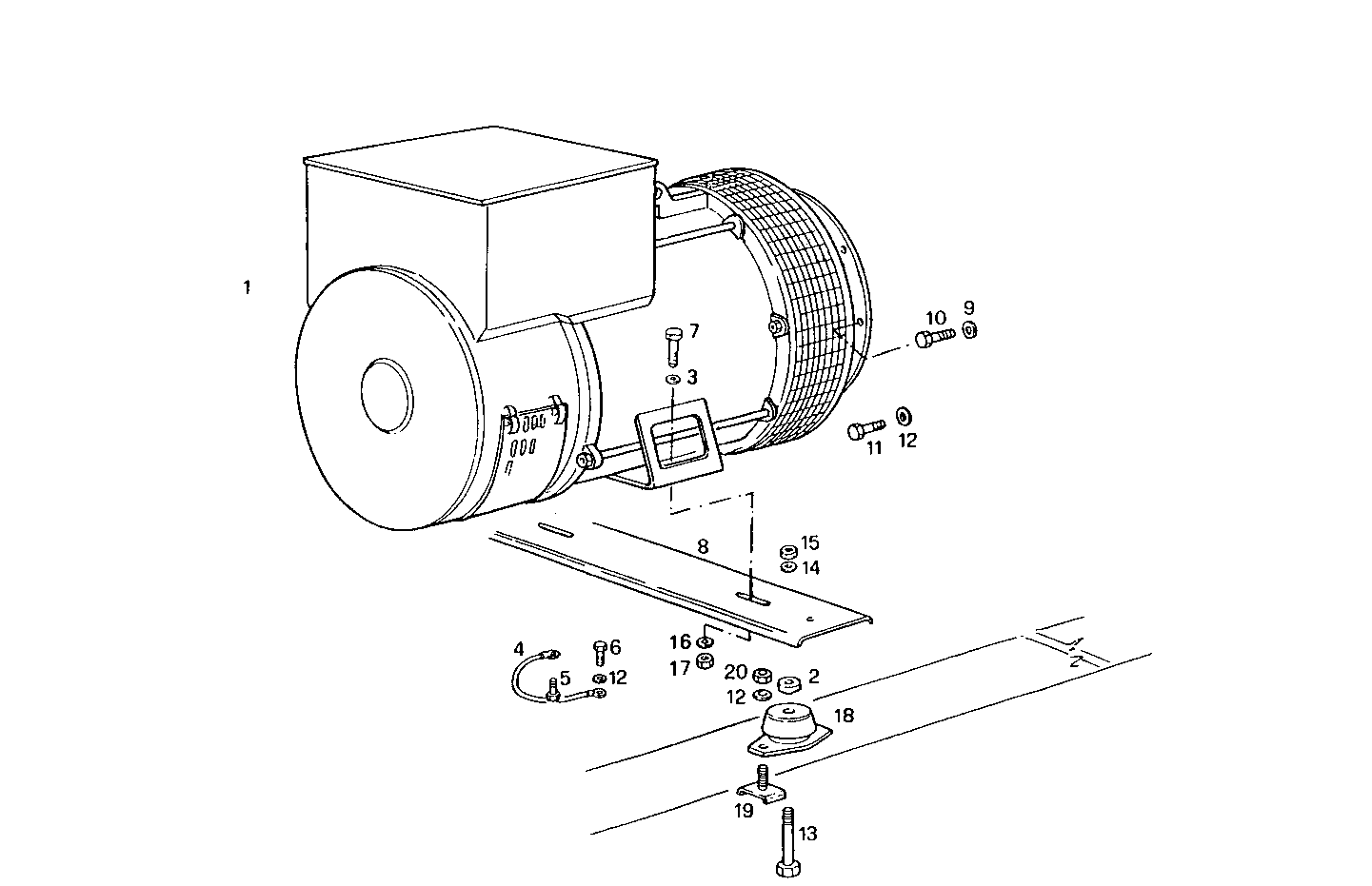

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8027668 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8015486 | SPACING BAR SPACING BAR | 2 | |
| 3 | 4929369 | WASHER WASHER | 2 | |
| 4 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16043124 | SCREW SCREW | 1 | |
| 7 | 17038421 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 8016047 | SUPPORT SUPPORT | 1 | |
| 9 | 17494934 | WASHER WASHER | 8 | |
| 10 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 17 | |
| 13 | 16614924 | SCREW SCREW | 2 | |
| 14 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 17038921 | NUT NUT | 2 | |
| 16 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17091374 | SPRING WASHER SPRING WASHER | 2 | |
| 18 | 8016784 | RUBBER PAD RUBBER PAD | 2 | |
| 19 | 8016024 | SCREW SCREW | 4 | |
| 20 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 |
