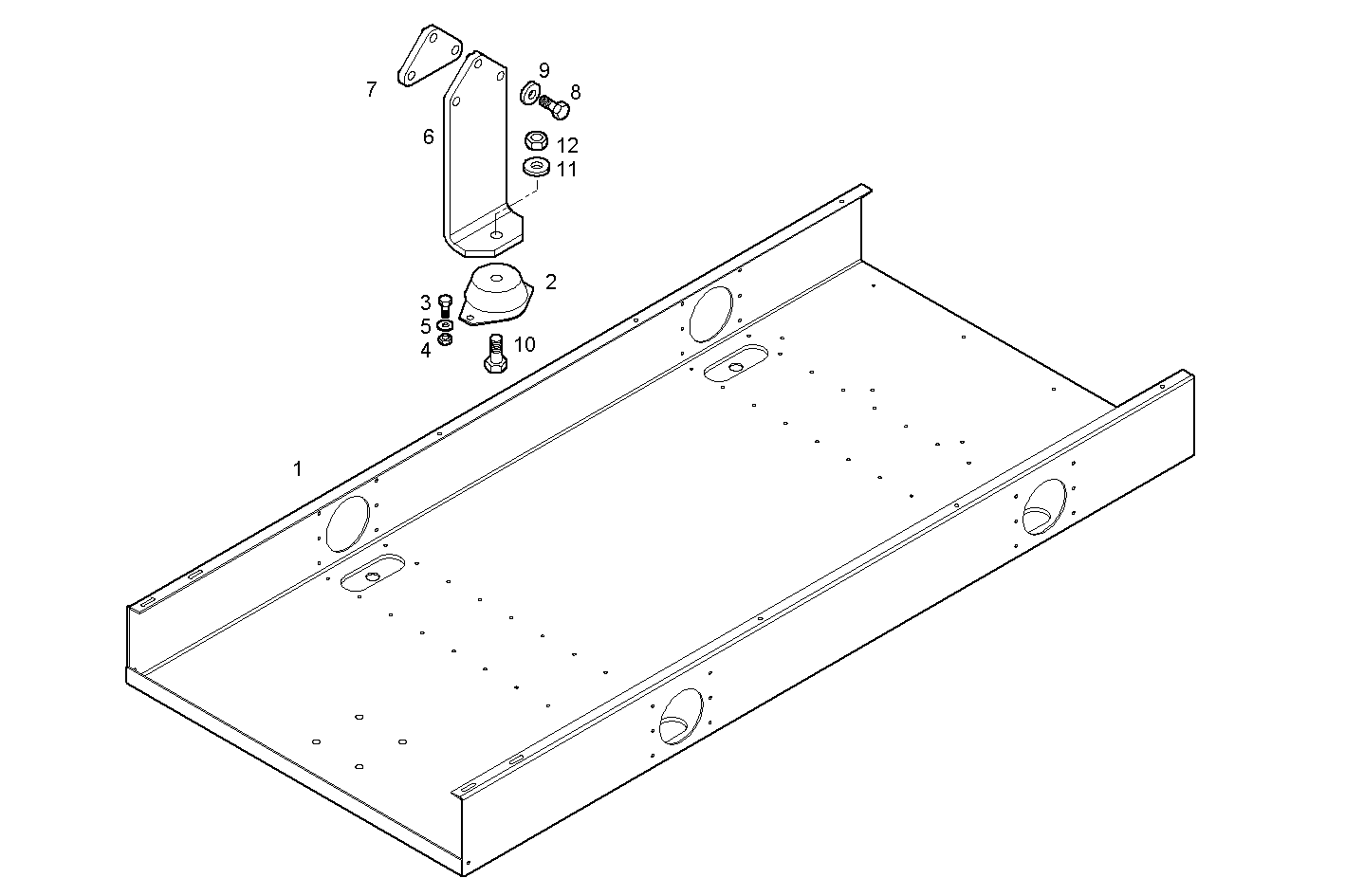

SUBBASE FOR GENERATOR UNIT
GE8031i06.05R921 — GE8031i06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030260 | SUBBSAE-SUPPORT FRAME SUBBSAE-SUPPORT FRAME | 1 | |
| 2 | 8016784 | RUBBER PAD RUBBER PAD | 2 | |
| 3 | 16607625 | SCREW SCREW | 4 | |
| 4 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 6 | 8028208 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 2 | |
| 7 | 4919820 | SPACING BAR SPACING BAR | 2 | |
| 8 | 16610034 | SCREW SCREW | 6 | |
| 9 | 17091074 | WASHER WASHER | 6 | |
| 10 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17038931 | HEXAGON NUT HEXAGON NUT | 2 |
