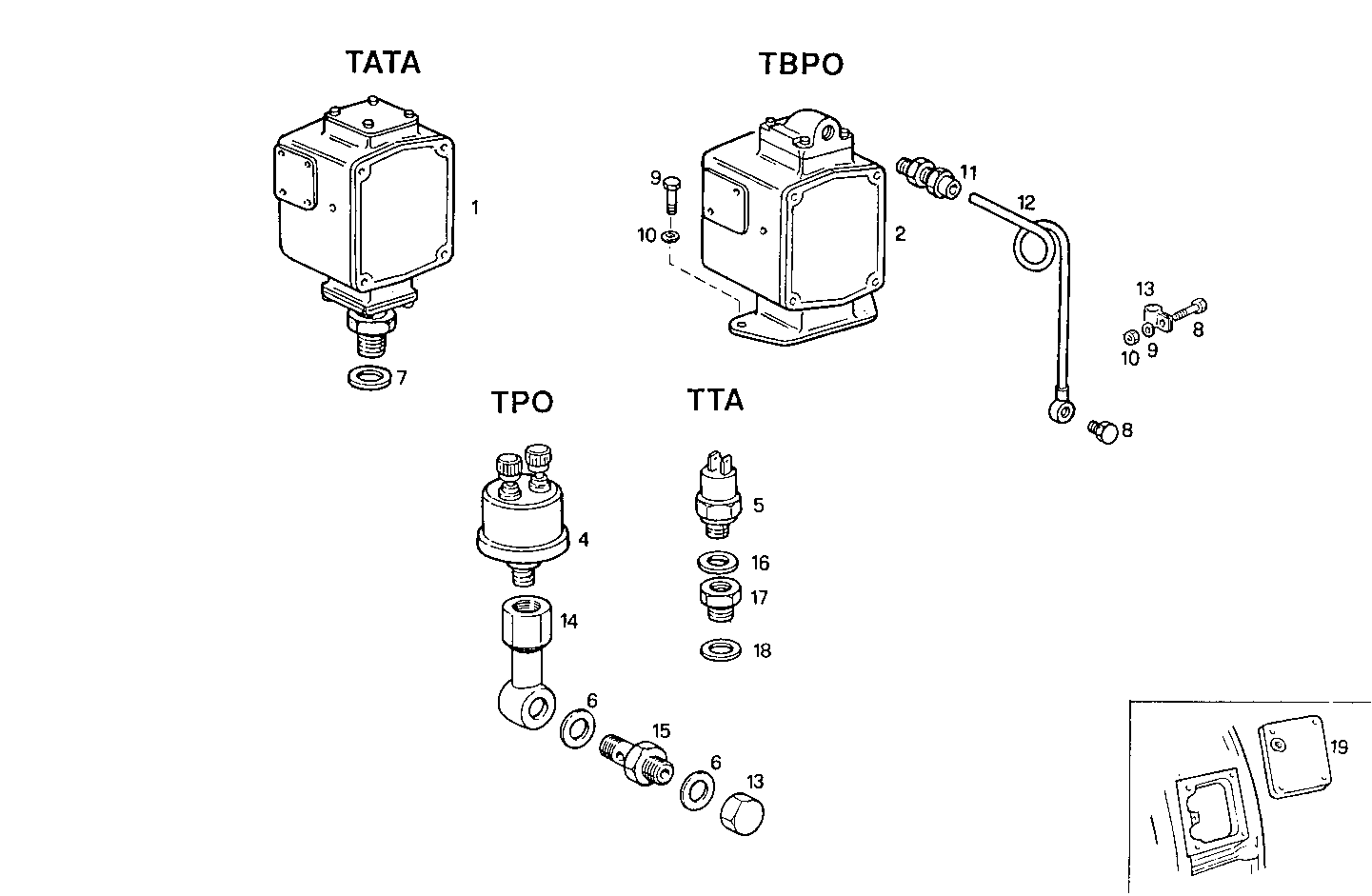

SENDER UNITS FOR GENERATOR UNIT
GE8035M06.01A61S — GE8035M06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110742 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8110741 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8100417 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 8100418 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 4858606 | GASKET GASKET | 2 | |
| 7 | 11271460 | GASKET GASKET | 1 | |
| 8 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17088474 | WASHER WASHER | 2 | |
| 11 | 8111316 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8030640 | OIL LINE OIL LINE | 1 | |
| 13 | 11902117 | PLUG PLUG | 2 | |
| 14 | 4927546 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 4607792 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 16 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4928609 | GASKET GASKET | 1 | |
| 19 | 8030645 | COVER COVER | 1 |
