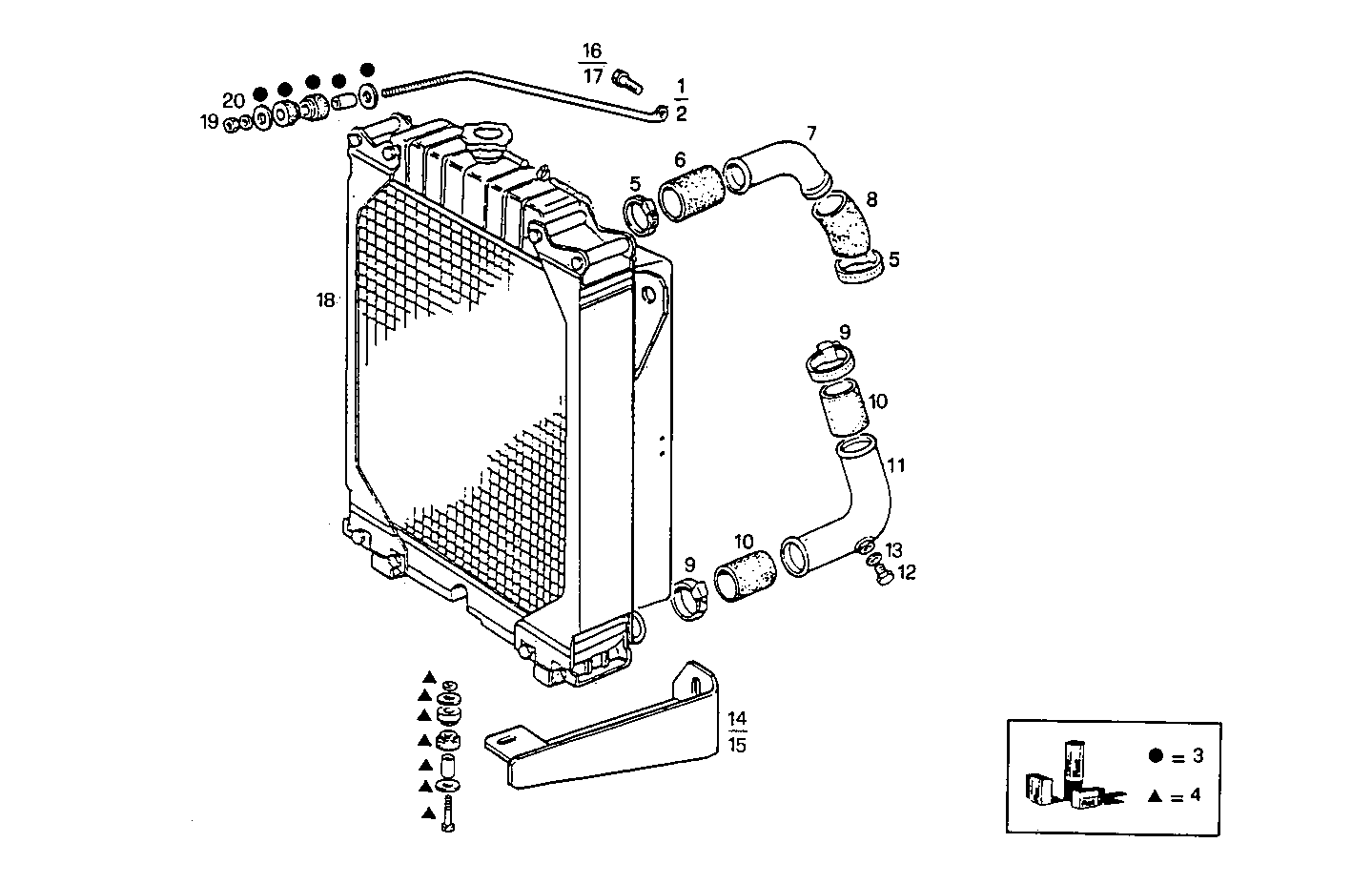

OVERSIZE RADIATOR
GE8041i05.55A905 — GE8041i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020111 | TIE ROD TIE ROD | 1 | |
| 2 | 8104607 | TIE ROD TIE ROD | 1 | |
| 3 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 4 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 5 | 17764891 | CLIP CLIP | 4 | |
| 6 | 4787630 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 8105330 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17743887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 17764791 | CLIP CLIP | 4 | |
| 10 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 11 | 8104865 | WATER PIPE WATER PIPE | 1 | |
| 12 | 10300911 | PLUG PLUG | 1 | |
| 13 | 4858605 | WASHER WASHER | 1 | |
| 14 | 8104796 | SUPPORT SUPPORT | 1 | |
| 15 | 8104799 | SUPPORT SUPPORT | 1 | |
| 16 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 98491344 | SCREW SCREW | 1 | |
| 18 | 8009112 | WATER RADIATOR WATER RADIATOR | 1 | |
| 19 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 20 | 17091074 | WASHER WASHER | 4 |
