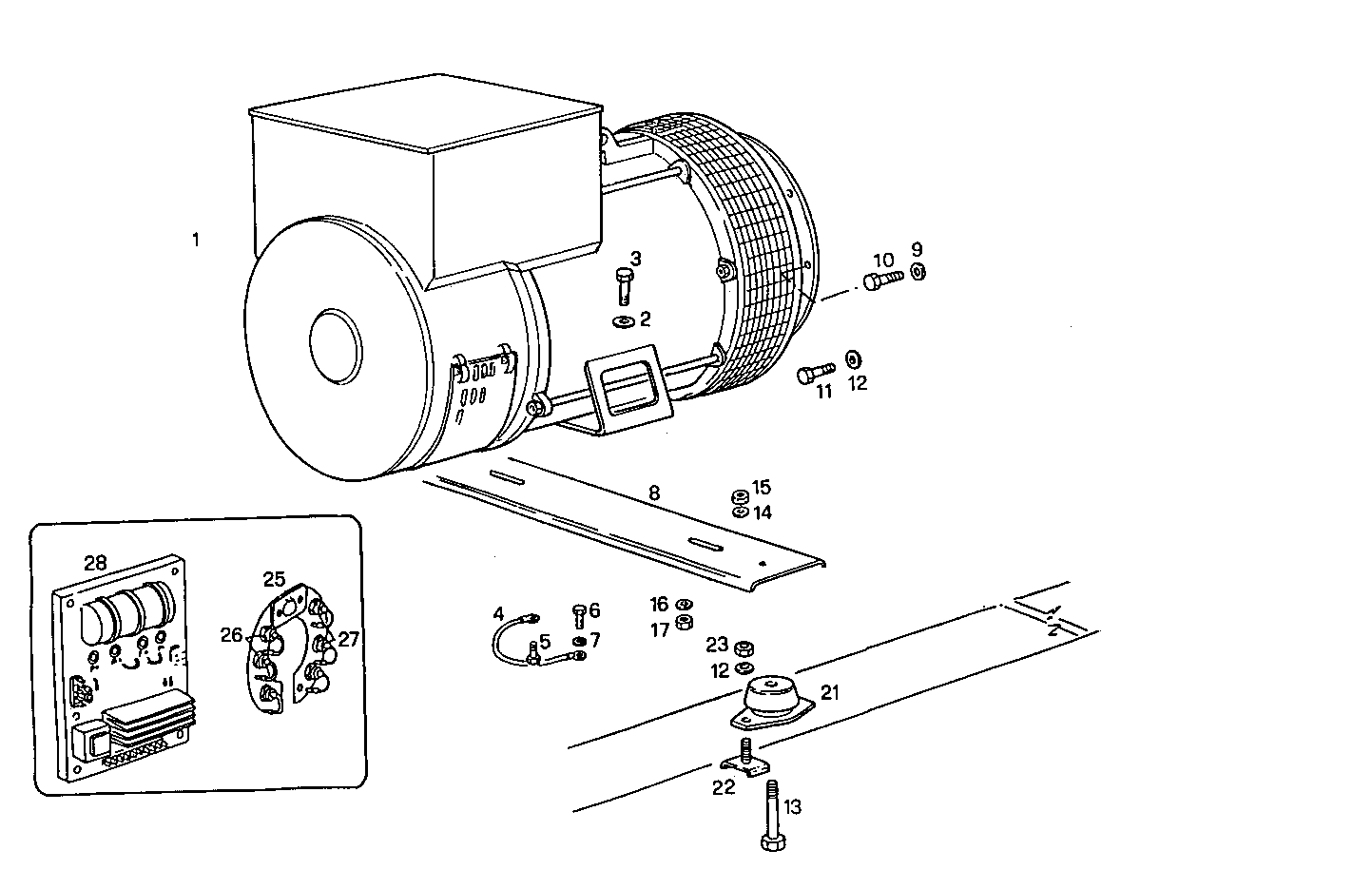

40-47KVA 50-60Hz
GE8041i06.55A905 — GE8041i06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8027654 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 4929369 | WASHER WASHER | 2 | |
| 3 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16043124 | SCREW SCREW | 1 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 8016047 | SUPPORT SUPPORT | 1 | |
| 9 | 17494934 | WASHER WASHER | 8 | |
| 10 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 16 | |
| 13 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17092374 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 17038921 | NUT NUT | 2 | |
| 16 | 17091374 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 17038521 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 8016784 | RUBBER PAD RUBBER PAD | 2 | |
| 22 | 8016024 | SCREW SCREW | 4 | |
| 23 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 25 | 8091777 | SUPPRESSOR SUPPRESSOR | 1 | |
| 26 | 8090760 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 27 | 8090759 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 28 | 8090756 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 |
