40KVA 50HZ
GE8045M08.00A61S — GE8045M08

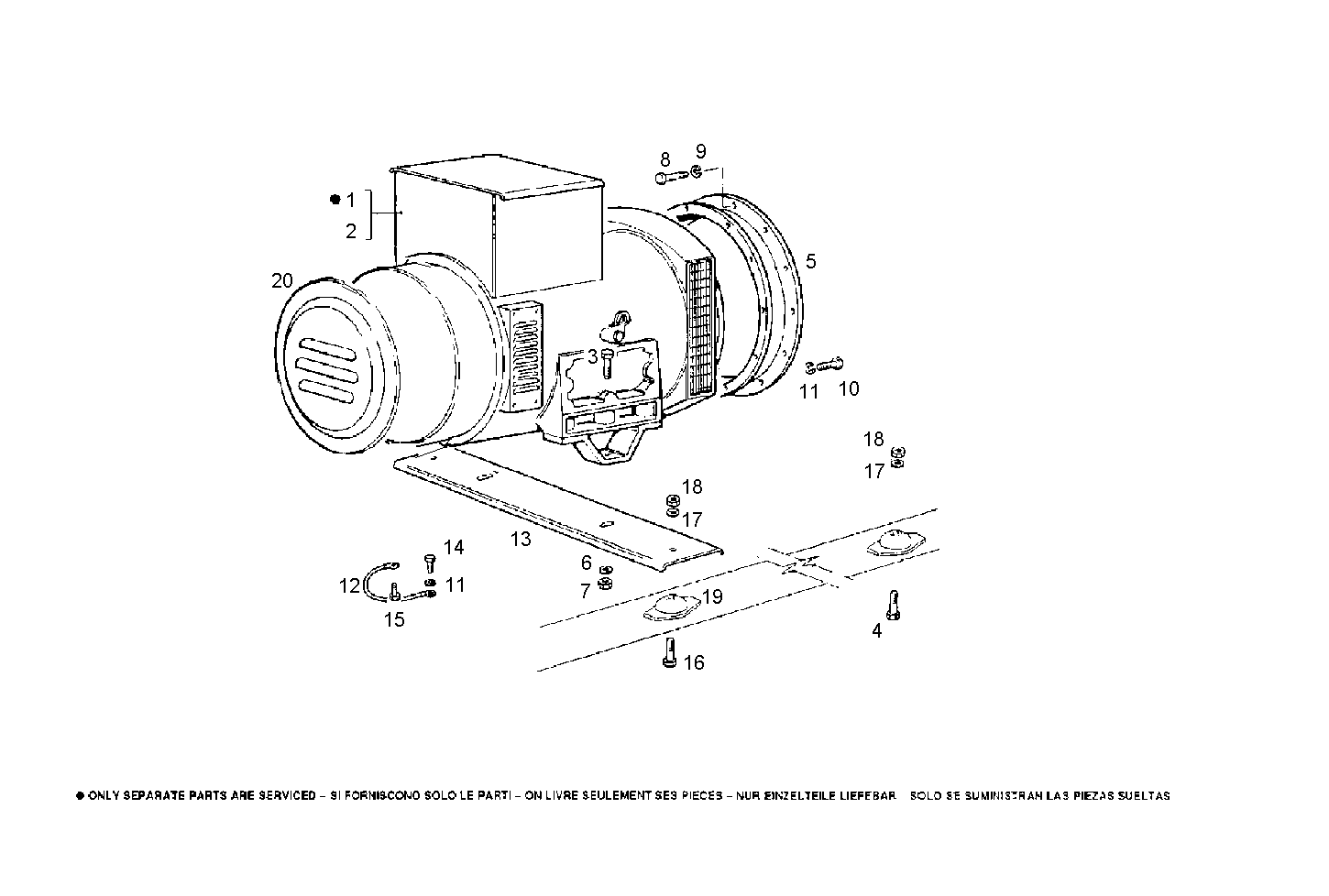

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110924 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8007606 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 3 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 15541721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 8103018 | SUPPORT SUPPORT | 1 | |
| 6 | 11194271 | WASHER WASHER | 2 | |
| 7 | 12164111 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 11306921 | SCREW SCREW | 12 | |
| 9 | 11198371 | SPRING WASHER SPRING WASHER | 12 | |
| 10 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 11 | 11193871 | WASHER WASHER | 13 | |
| 12 | 8104358 | EARTH WIRE EARTH WIRE | 1 | |
| 13 | 8109131 | SUPPORT SUPPORT | 1 | |
| 14 | 16043124 | SCREW SCREW | 1 | |
| 15 | 10902421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 15541621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 11198779 | SPRING WASHER SPRING WASHER | 4 | |
| 18 | 16101511 | HEXAGON NUT HEXAGON NUT | 4 | |
| 19 | 4955094 | RUBBER PAD RUBBER PAD | 2 | |
| 20 | 8093965 | EL.MACHINE COVER EL.MACHINE COVER | 1 |
