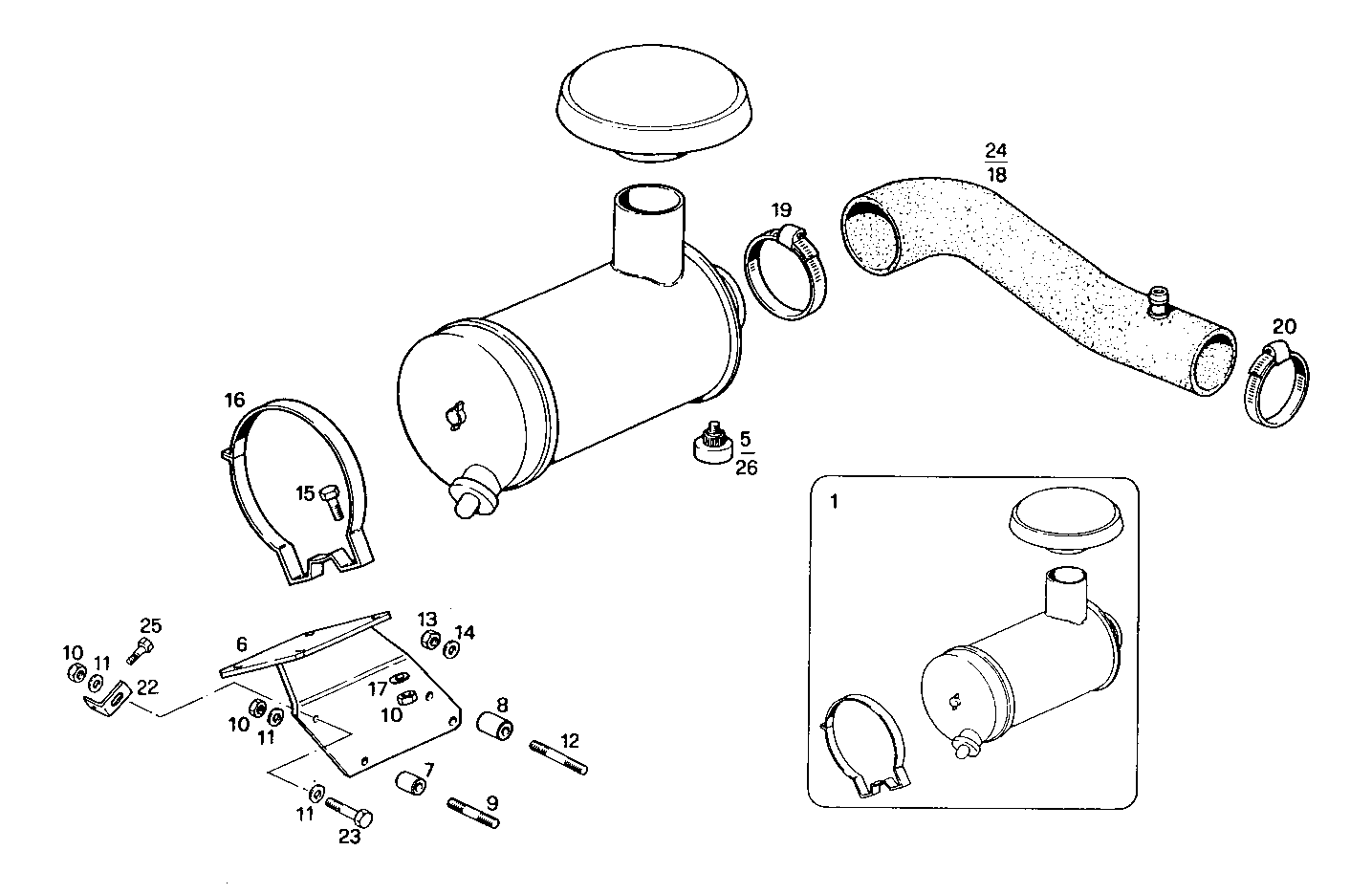

DRY AIR CLEANER
GE8061Si16.06A956 — GE8061Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013302 | AIR CLEANER AIR CLEANER | 1 | |
| 5 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 6 | 8014570 | SUPPORT SUPPORT | 1 | |
| 7 | 8015452 | SPACING BAR SPACING BAR | 1 | |
| 8 | 8015453 | SPACING BAR SPACING BAR | 2 | |
| 9 | 16729524 | STUD STUD | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 16731524 | STUD STUD | 2 | |
| 13 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 | |
| 14 | 17090474 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 18 | 8020791 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 17765391 | CLIP CLIP | 1 | |
| 20 | 17765191 | CLIP CLIP | 1 | |
| 21 | 8100819 | RETAINER RETAINER | 1 | |
| 23 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 8020620 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 16606024 | SCREW SCREW | 1 | |
| 26 | 8022540 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 |
