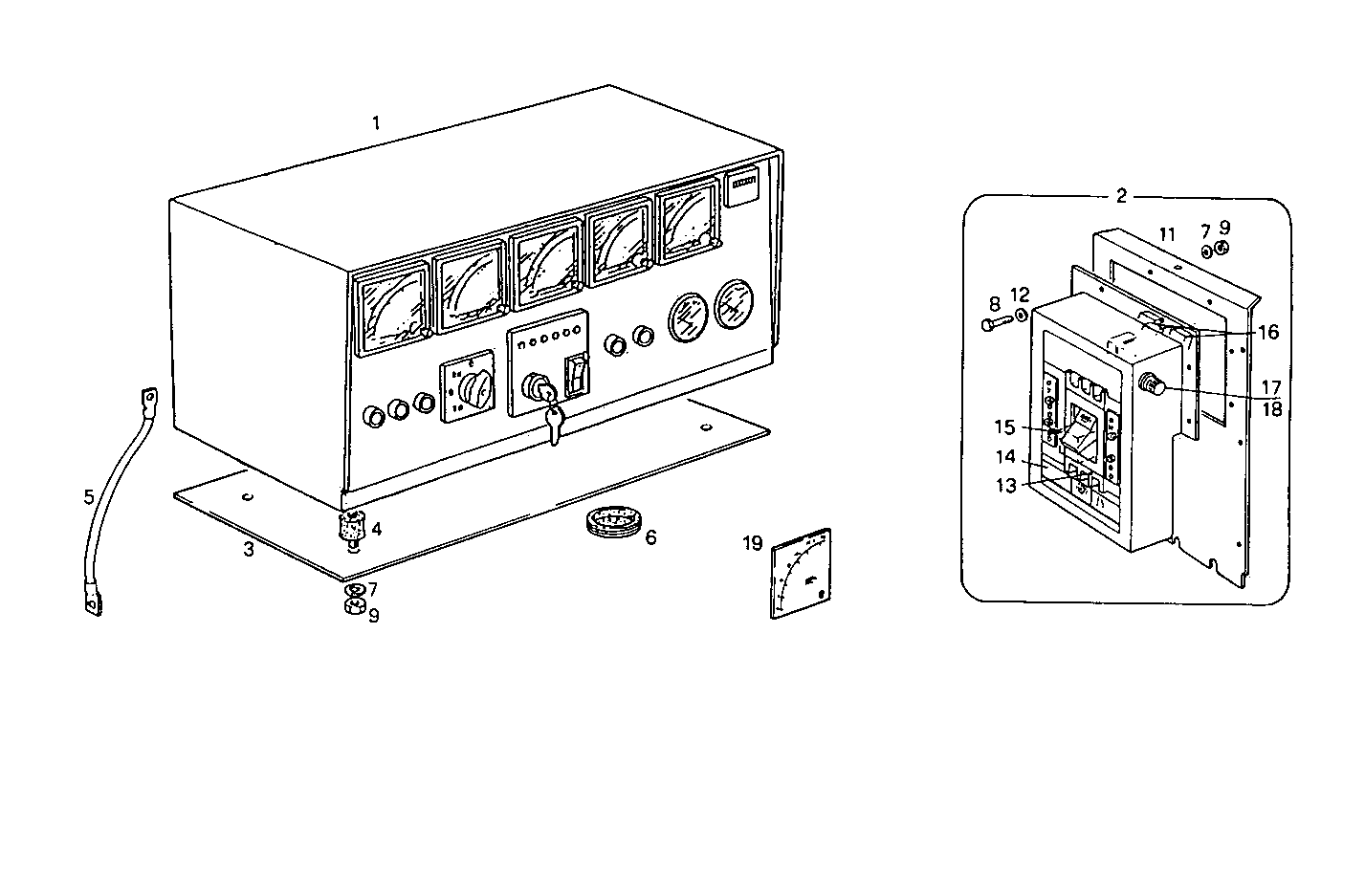

80-95KVA 380V 50-60HZ
GE8061Si16.06A957 — GE8061Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023258 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8020588 | SWITCH SWITCH | 1 | |
| 3 | 8019139 | COVER COVER | 1 | |
| 4 | 8104155 | DOWEL DOWEL | 4 | |
| 5 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 7 | 17088474 | WASHER WASHER | 14 | |
| 8 | 16603524 | SCREW SCREW | 6 | |
| 9 | 17037821 | HEXAGON NUT HEXAGON NUT | 14 | |
| 11 | 8020852 | EL.MACHINE COVER EL.MACHINE COVER | 1 | |
| 12 | 17094714 | WASHER WASHER | 6 | |
| 13 | 8021330 | SWITCH SWITCH | 1 | |
| 14 | 8021329 | SWITCH SWITCH | 1 | |
| 15 | 8021328 | MINIMUN TENSION COIL MINIMUN TENSION COIL | 1 | |
| 16 | 8090285 | TRANSFORMATOR TRANSFORMATOR | 3 | |
| 17 | 8105267 | FUSE BOX FUSE BOX | 1 | |
| 18 | 8105216 | FUSE FUSE | 1 | |
| 19 | 8110917 | STOP PLATE STOP PLATE | 3 |
