DIGITAL INSTRUMENT PANEL 12V
GE8061SRi26.05R950 — GE8061SRi26

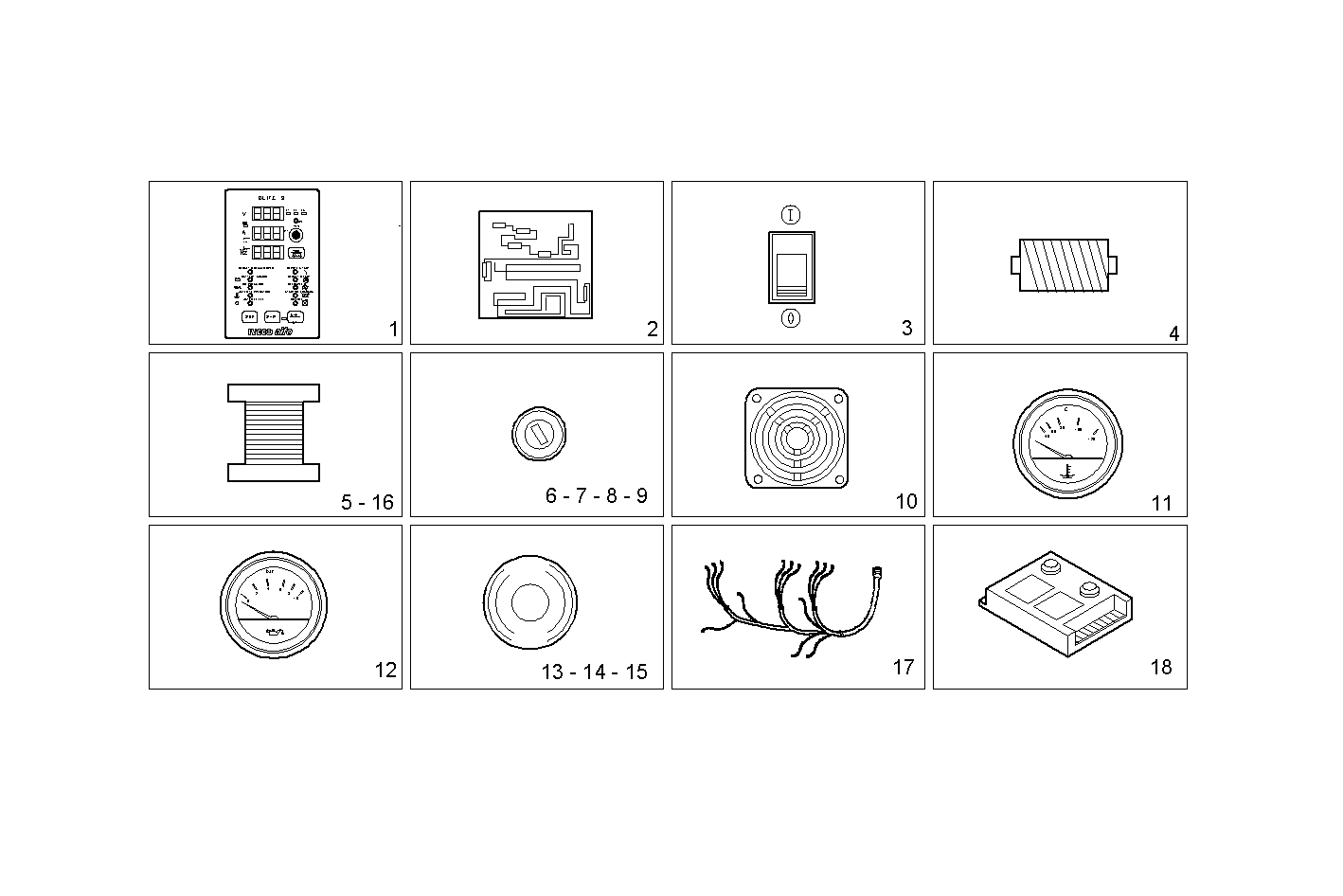

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8094618 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 2 | 8093794 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 3 | 8021332 | THERMOSWITCH THERMOSWITCH | 1 | |
| 4 | 8094661 | MINIMUN TENSION COIL MINIMUN TENSION COIL | 1 | |
| 5 | 8094668 | AMMETER TRANSFORMATOR AMMETER TRANSFORMATOR | 3 | |
| 6 | 8094598 | FUSE BOX FUSE BOX | 5 | |
| 7 | 8094599 | FUSE FUSE | 3 | |
| 8 | 8094621 | FUSE FUSE | 1 | |
| 9 | 8094620 | FUSE FUSE | 1 | |
| 10 | 8094601 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 11 | 8094623 | THERMOMETER THERMOMETER | 1 | |
| 12 | 8094622 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 13 | 8094664 | PUSH BUTTON PUSH BUTTON | 1 | |
| 14 | 8094663 | SPRING CONTACT SPRING CONTACT | 1 | |
| 15 | 8094662 | SPRING CONTACT SPRING CONTACT | 1 | |
| 16 | 8094605 | SPRING CONTACT SPRING CONTACT | 1 | |
| 17 | 8094690 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 18 | 8017472 | SPEED CONTROL SPEED CONTROL | 1 |
