MANUAL CONTROL BOARD FOR ELECT. MACHINE
GE8061SRi27.05R970 — GE8061SRi27

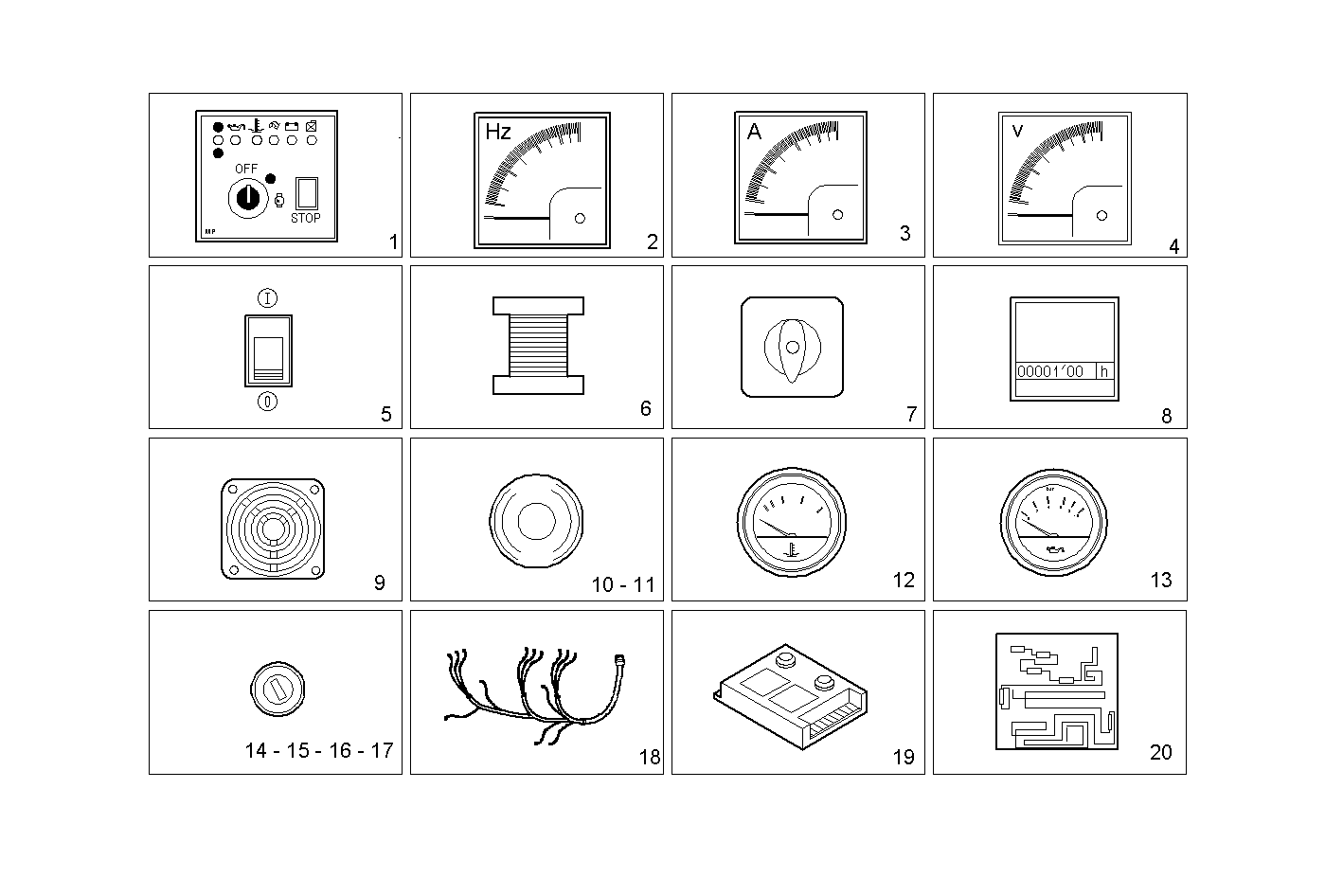

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8094639 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 2 | 8094637 | FREQUENCYMETER FREQUENCYMETER | 1 | |
| 3 | 8094642 | AMMETER AMMETER | 3 | |
| 4 | 8094652 | VOLTMETER VOLTMETER | 1 | |
| 5 | 8094606 | THERMOSWITCH THERMOSWITCH | 1 | |
| 6 | 8094624 | AMMETER TRANSFORMATOR AMMETER TRANSFORMATOR | 3 | |
| 7 | 8094635 | SWITCH SWITCH | 1 | |
| 8 | 8094648 | HOURMETER HOURMETER | 1 | |
| 9 | 8094601 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 10 | 8094644 | PUSH BUTTON PUSH BUTTON | 1 | |
| 11 | 8094660 | SPRING CONTACT SPRING CONTACT | 2 | |
| 12 | 8094640 | THERMOMETER THERMOMETER | 1 | |
| 13 | 8094638 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 14 | 8094598 | FUSE BOX FUSE BOX | 5 | |
| 15 | 8094599 | FUSE FUSE | 3 | |
| 16 | 8094636 | FUSE FUSE | 1 | |
| 17 | 8094620 | FUSE FUSE | 1 | |
| 18 | 8094690 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 19 | 8018675 | SPEED CONTROL SPEED CONTROL | 1 | |
| 20 | 8094673 | ELECTRONIC CARD ELECTRONIC CARD | 1 |
