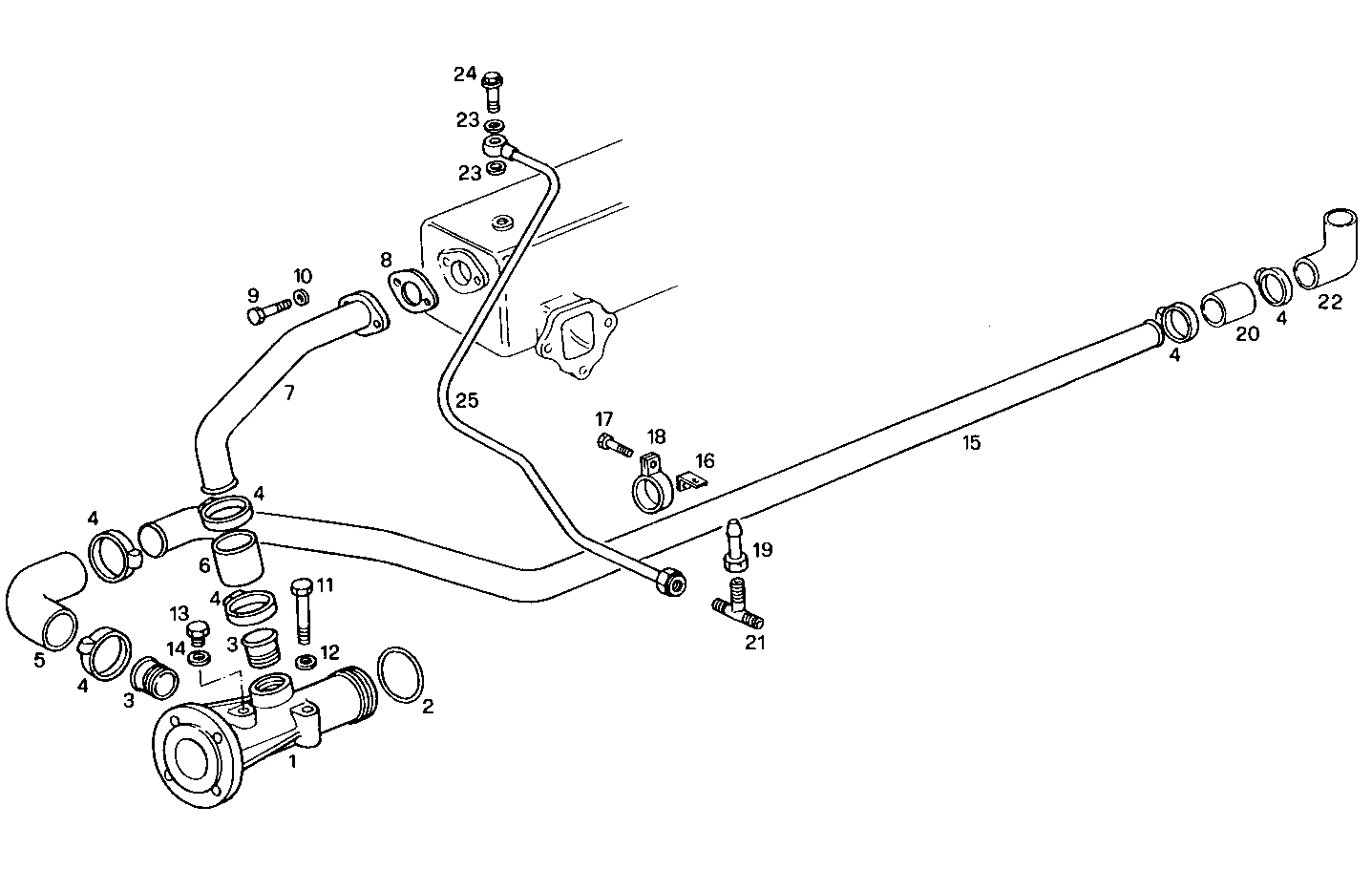

WATER LINES
GE8210G75.10A70M — GE8210G75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021866 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98461203 | O-RING O-RING | 1 | |
| 3 | 8110595 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 17764791 | CLIP CLIP | 6 | |
| 5 | 8110497 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 6 | 8110724 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 8110631 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8009640 | GASKET GASKET | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17094914 | WASHER WASHER | 1 | |
| 13 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 4858609 | WASHER WASHER | 1 | |
| 15 | 8021986 | WATER PIPE WATER PIPE | 1 | |
| 16 | 8102227 | RETAINER RETAINER | 1 | |
| 17 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 4928851 | CLIP CLIP | 2 | |
| 19 | 8021758 | WATER PIPE WATER PIPE | 1 | |
| 20 | 8110617 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 21 | 8112120 | PIPE SOCKET PIPE SOCKET | 1 | |
| 22 | 4919714 | WATER HOSE WATER HOSE | 1 | |
| 23 | 4858607 | WASHER WASHER | 2 | |
| 24 | 8009606 | GASKET GASKET | 1 | |
| 25 | 8021961 | WATER PIPE WATER PIPE | 1 |
