125-140KVA 50-60HZ
GE8210G75.10A70S — GE8210G75

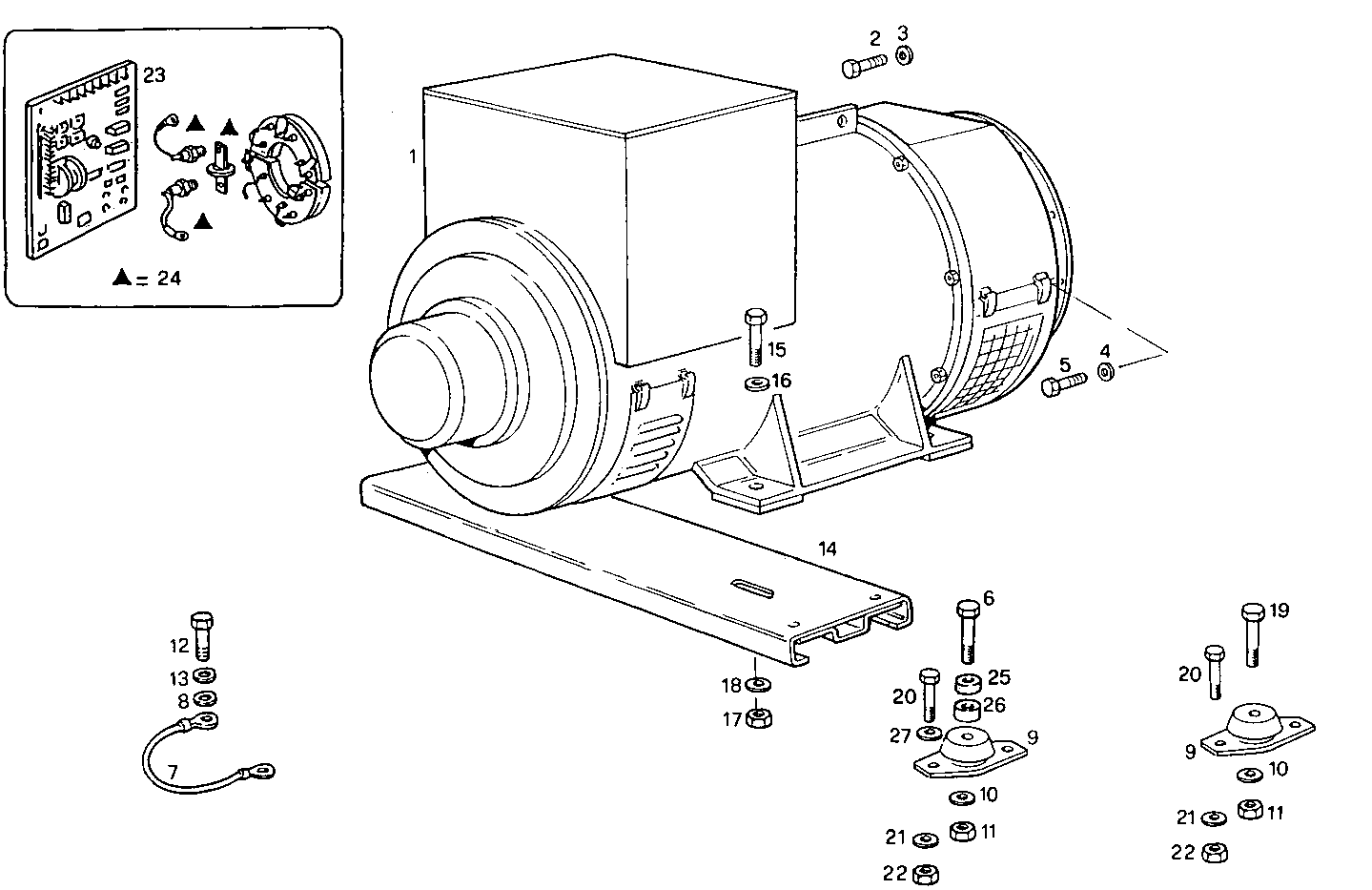

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8026614 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 5 | 15542731 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 16620724 | SCREW SCREW | 4 | |
| 7 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 8 | 16665504 | WASHER WASHER | 1 | |
| 9 | 4955094 | RUBBER PAD RUBBER PAD | 6 | |
| 10 | 17093174 | WASHER WASHER | 6 | |
| 11 | 17039721 | HEXAGON NUT HEXAGON NUT | 6 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 8019651 | SUPPORT SUPPORT | 2 | |
| 15 | 16617224 | SCREW SCREW | 2 | |
| 16 | 17096004 | WASHER WASHER | 2 | |
| 17 | 17039321 | NUT NUT | 2 | |
| 18 | 17092774 | WASHER WASHER | 2 | |
| 19 | 16620124 | SCREW SCREW | 2 | |
| 20 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 21 | 17092374 | SPRING WASHER SPRING WASHER | 12 | |
| 22 | 17038921 | NUT NUT | 12 | |
| 23 | 8106738 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 24 | 8092769 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 25 | 17096204 | WASHER WASHER | 4 | |
| 26 | 8022659 | SPACING BAR SPACING BAR | 4 | |
| 27 | 4774417 | PIPE PIPE | 8 |
